Product Description
Item Condition: New SKU: SB-181568 A9-3-A

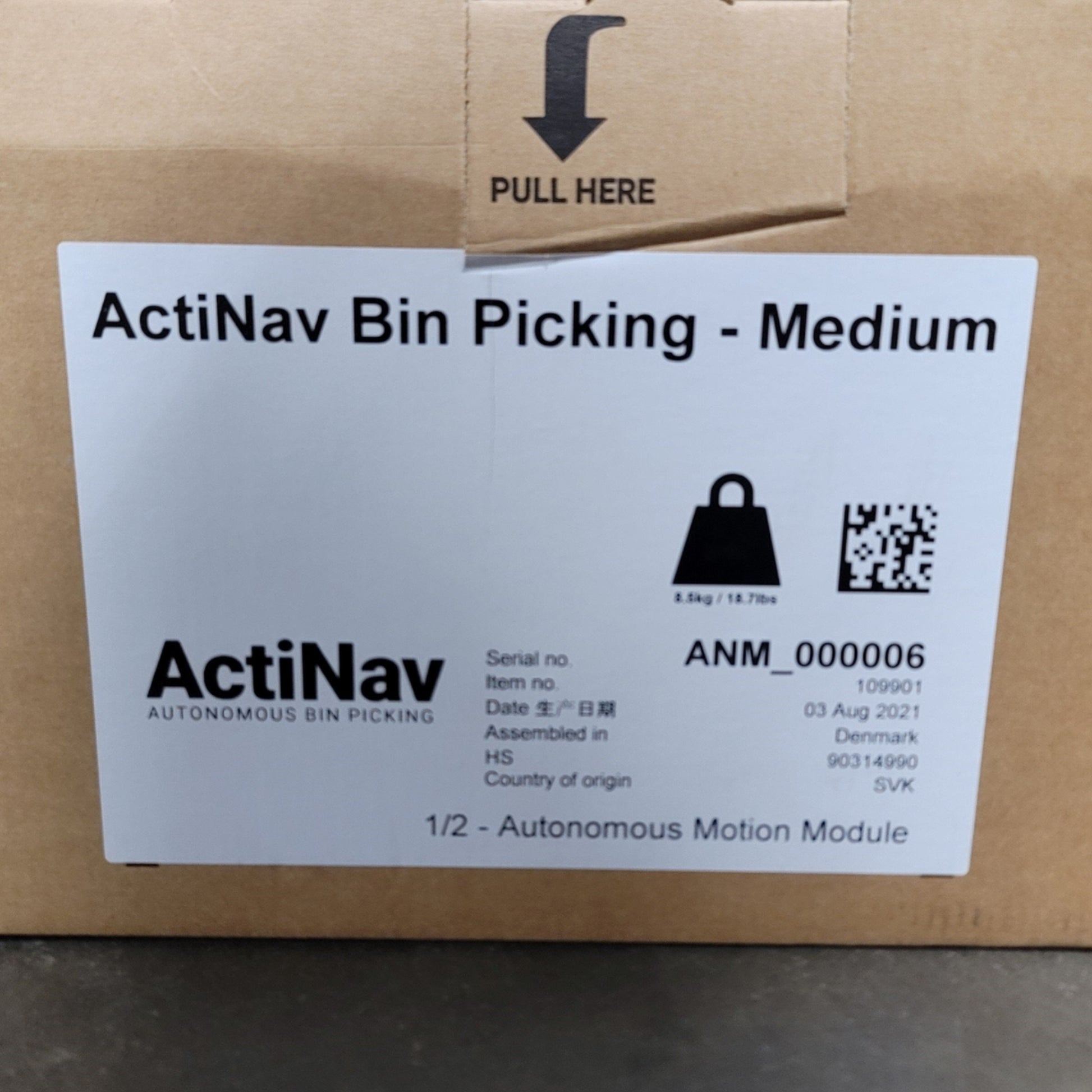

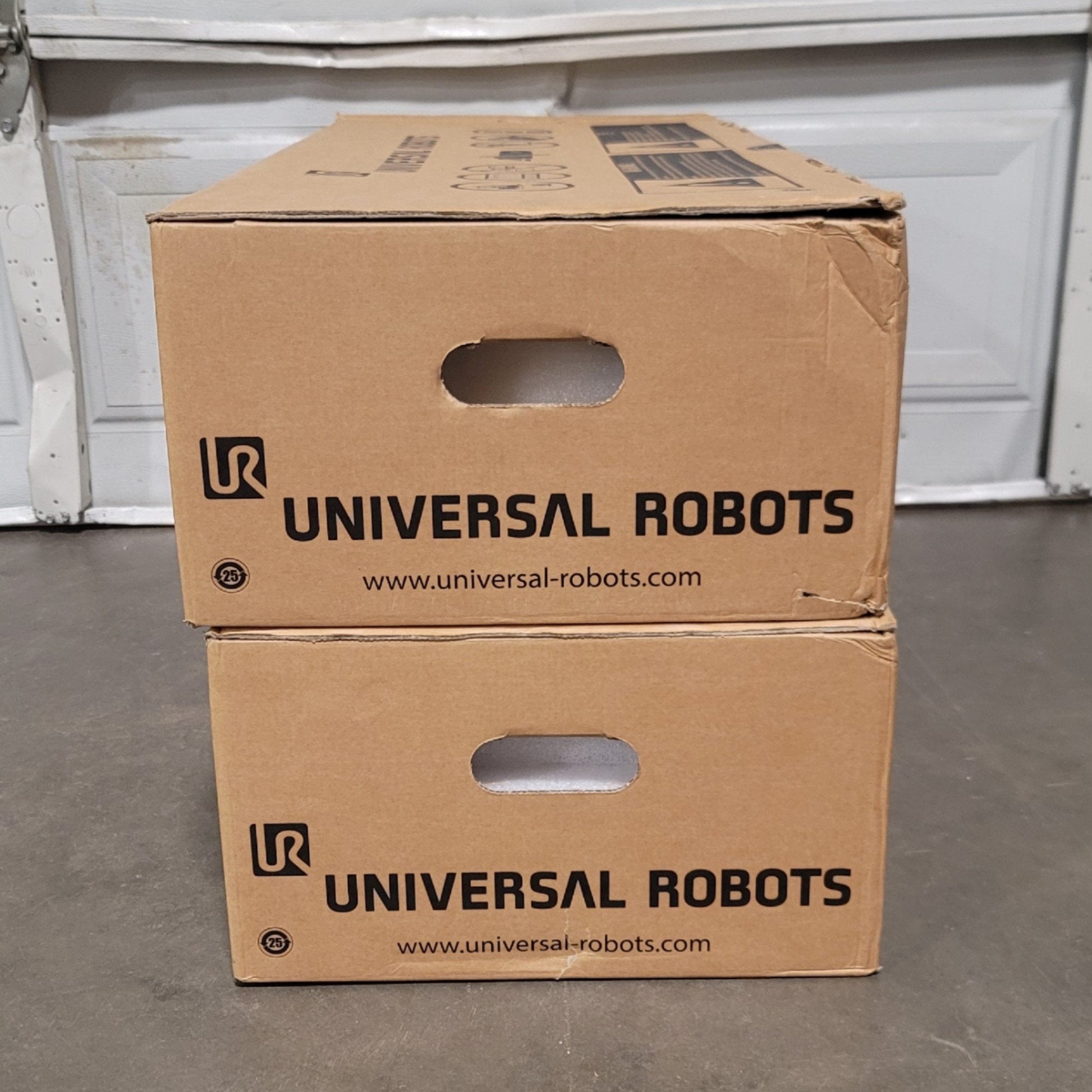

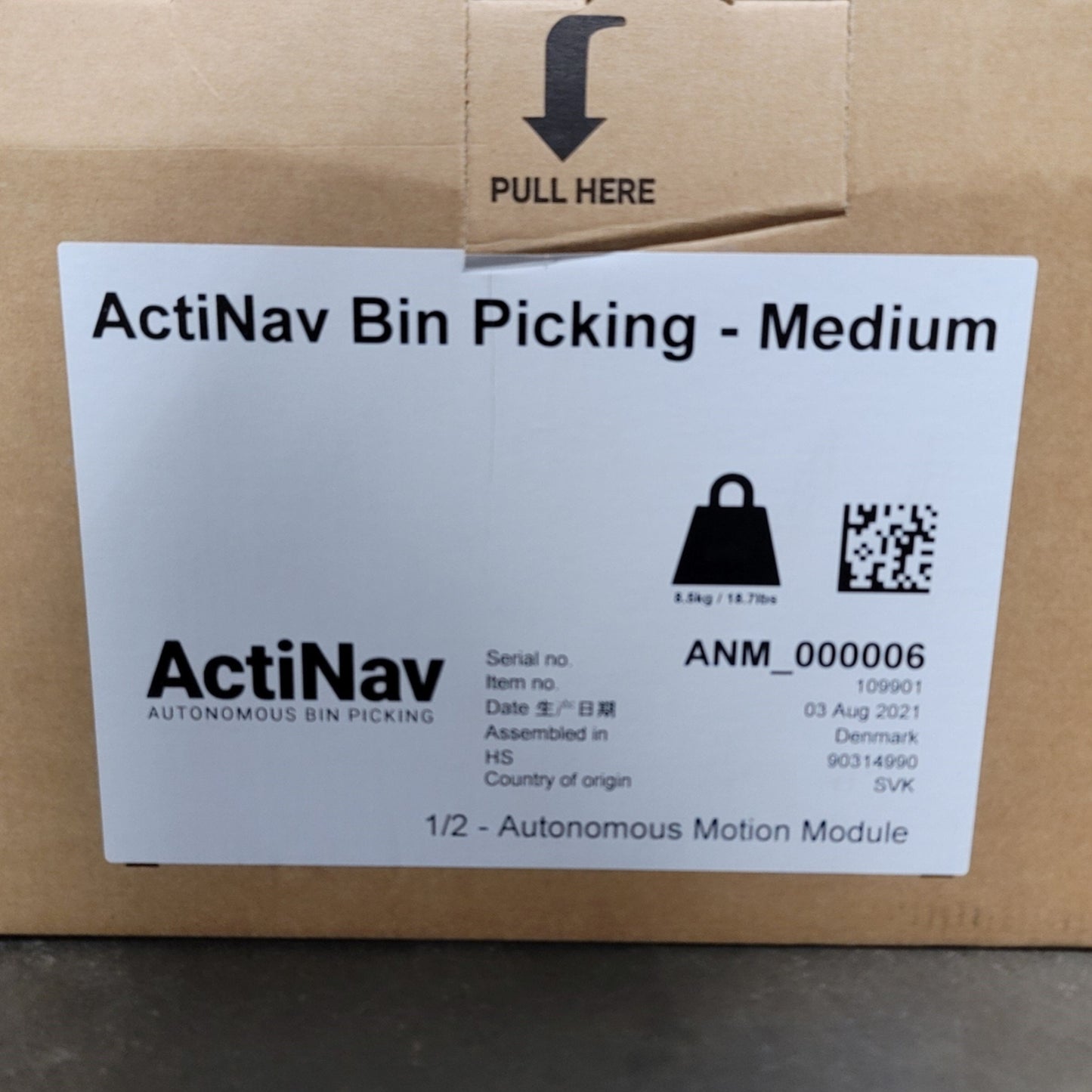

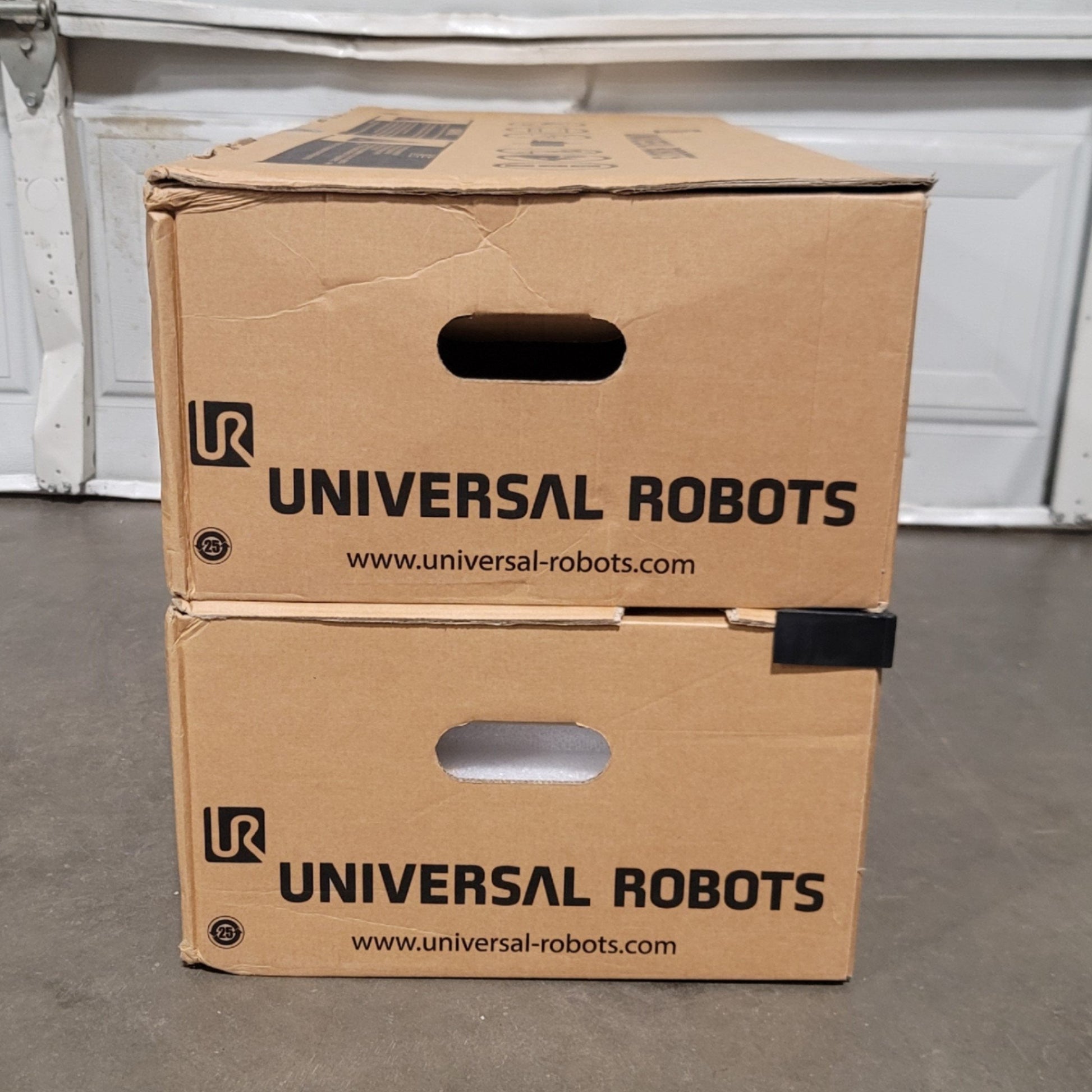

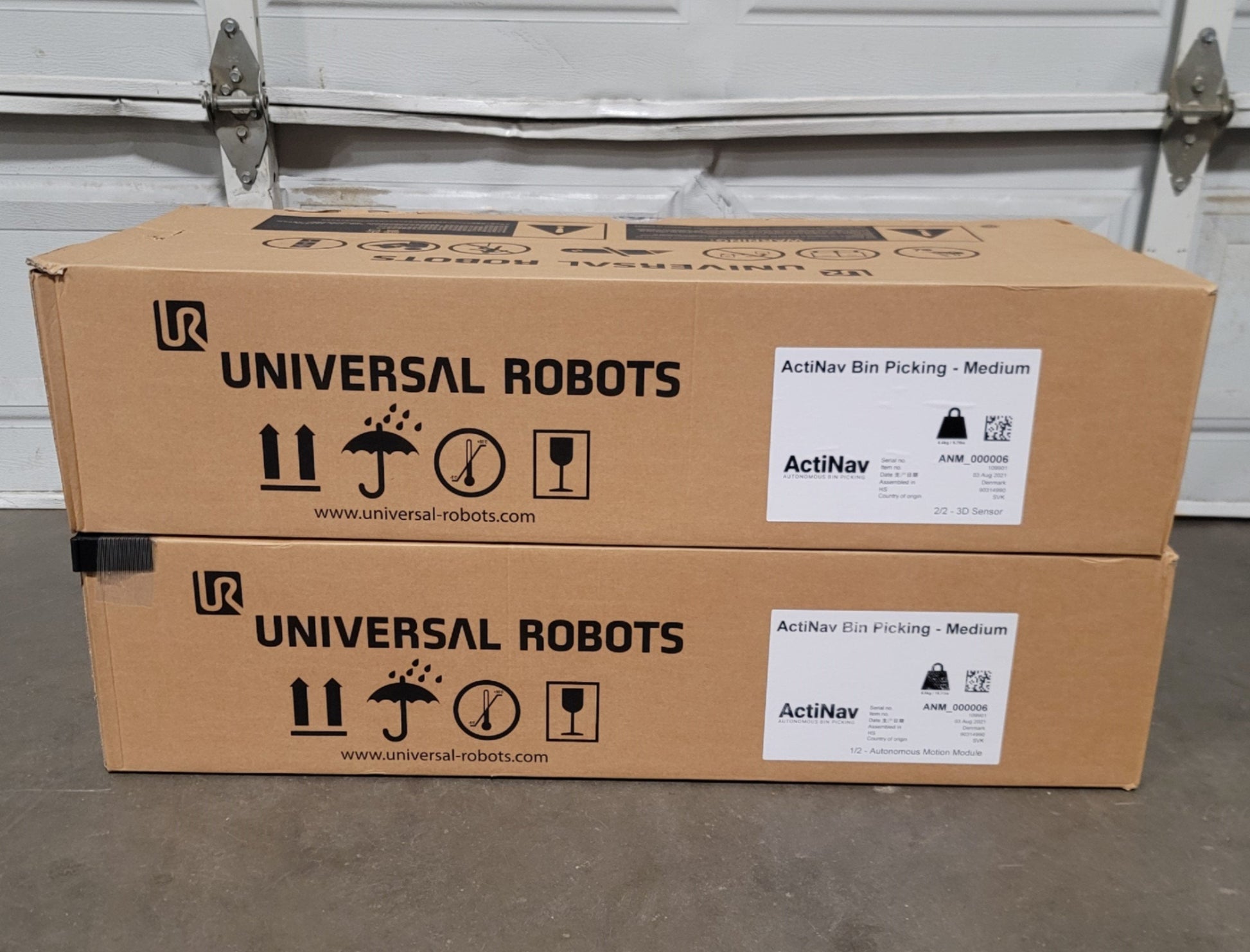

From our inventory we are selling a Universal Robots 109901 ActiNav Bin Picking System Motion Module And 3D Sensor.
Specifications:
Model #: 109901
More Information:
Universal Robots ActiNav Bin Picking System Motion Module And 3D Sensor

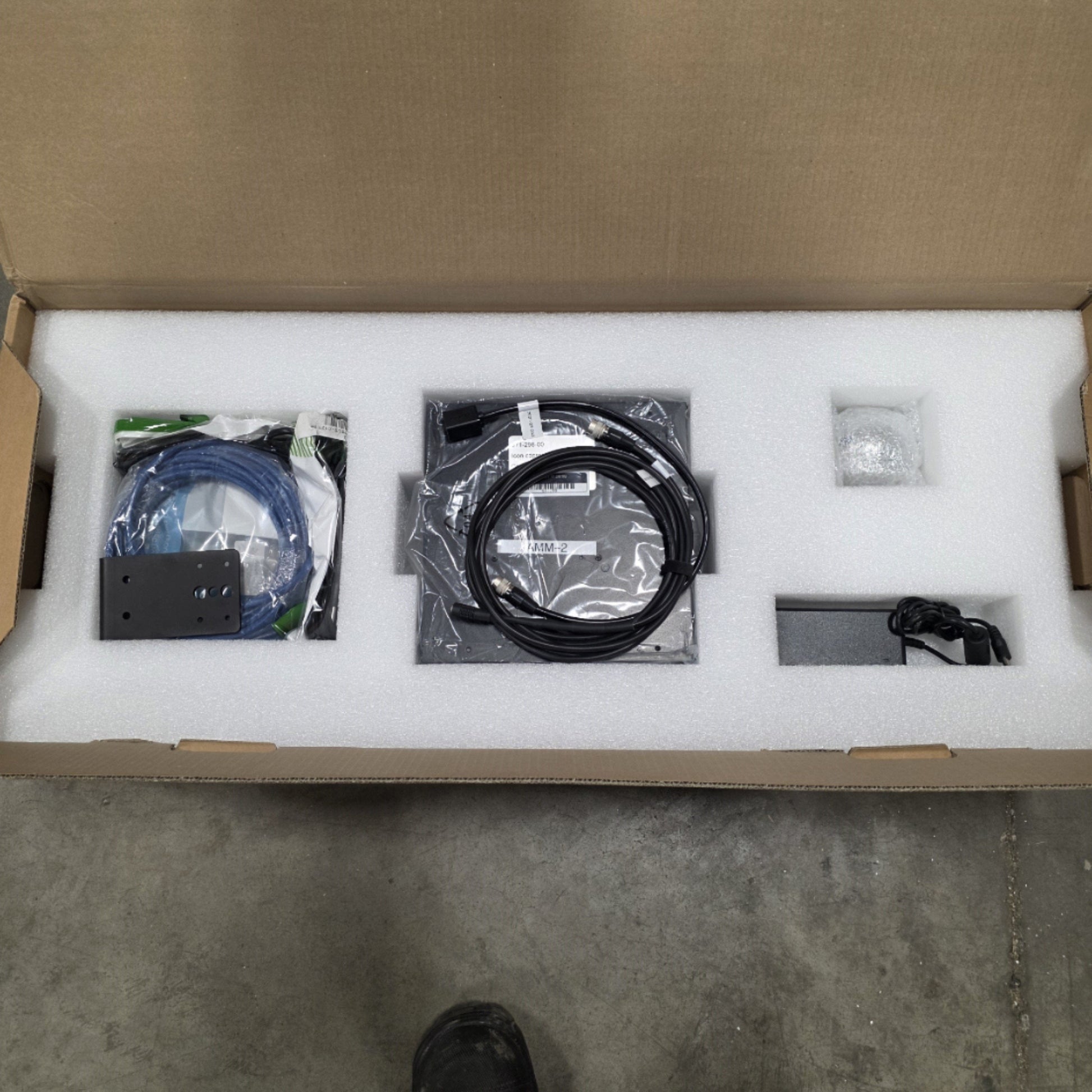

Autonomous Motion Module:
Power supply input voltage: 100?240 V AC
Power supply putput power: 250 W
Operating temperature: 0?40 øC
Operating humidity: 85% at 40 øC non-condensing
Operating vibration: 1 Grms
Operating shock: 10 G
Dimensions (W ? H ? D): 232 ? 90 ? 232 mm
EMC: CE/FCC Class A, CCC, BSMI
Safety certificates: UL, CB, CCC, BSMI

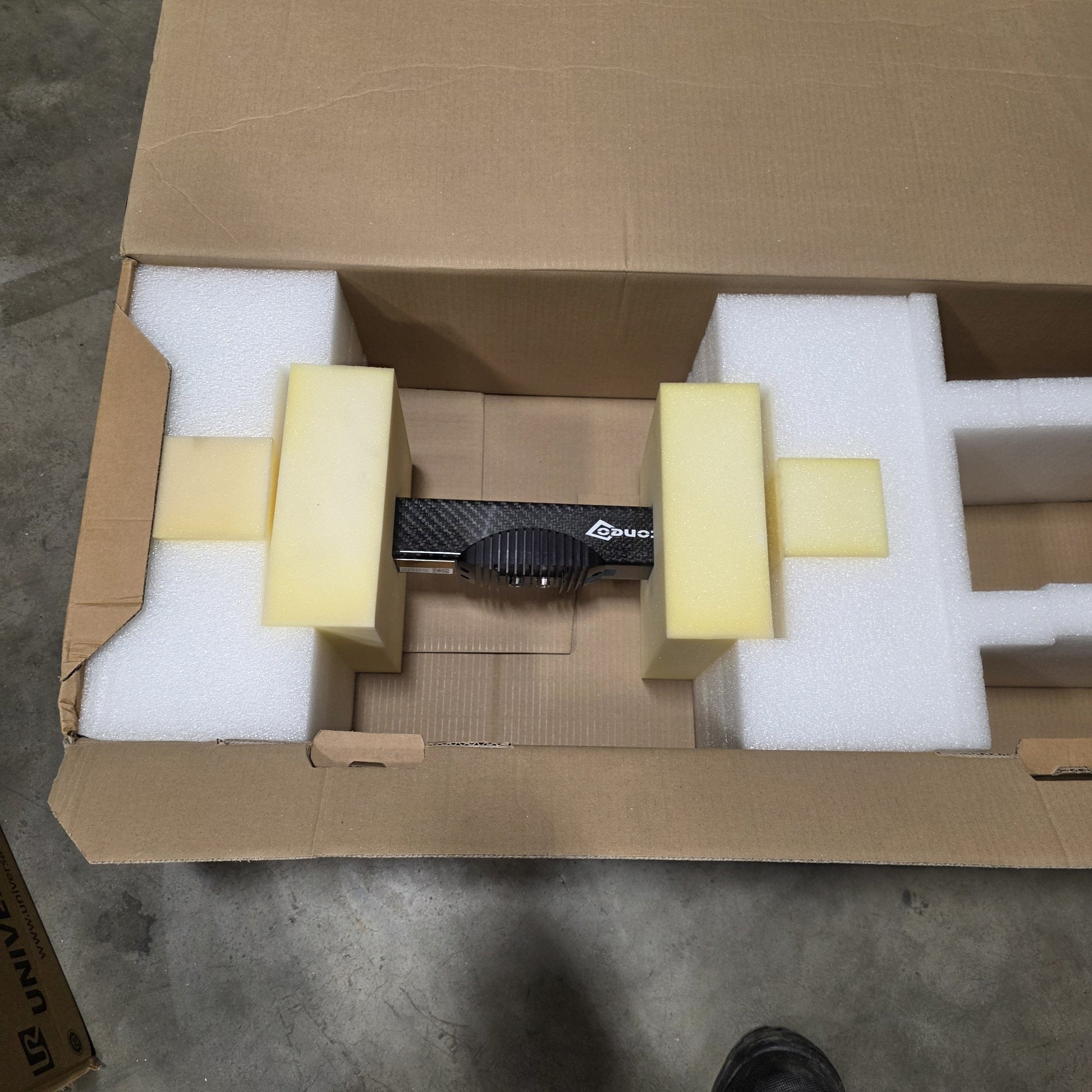

3D Sensor:
Minimum part size: 15 ? 15 ? 2 mm
Minimum thickness: 2 mm 5
Maximum bin size (W ? L ? D): 630 ? 490 ? 450 mm
Optimum scanning distance (focus): 650 mm
Scanning range (depth of field): 458?1118 mm
Scanning area (at focus distance): 590 ? 421 mm
Dimensions: 77 ? 68 ? 416 mm
Weight: 950 g
Light source: Visible red light
Wavelength: 638 nm
Laser class: 3R (IEC/EN 60825-1, 2014)
IP rating: IP40
Operating temperature: 0?30 øC
Operating humidity: 10?85% at 40 øC non-condensing
