Next Day Automation is NOT an authorized distributor for Adept Industrial Robotics Systems. The Original Manufacturer's warranty does not apply. This is a surplus item.
Product Description
Item Condition: Used SKU: SB-170160 ST71-3

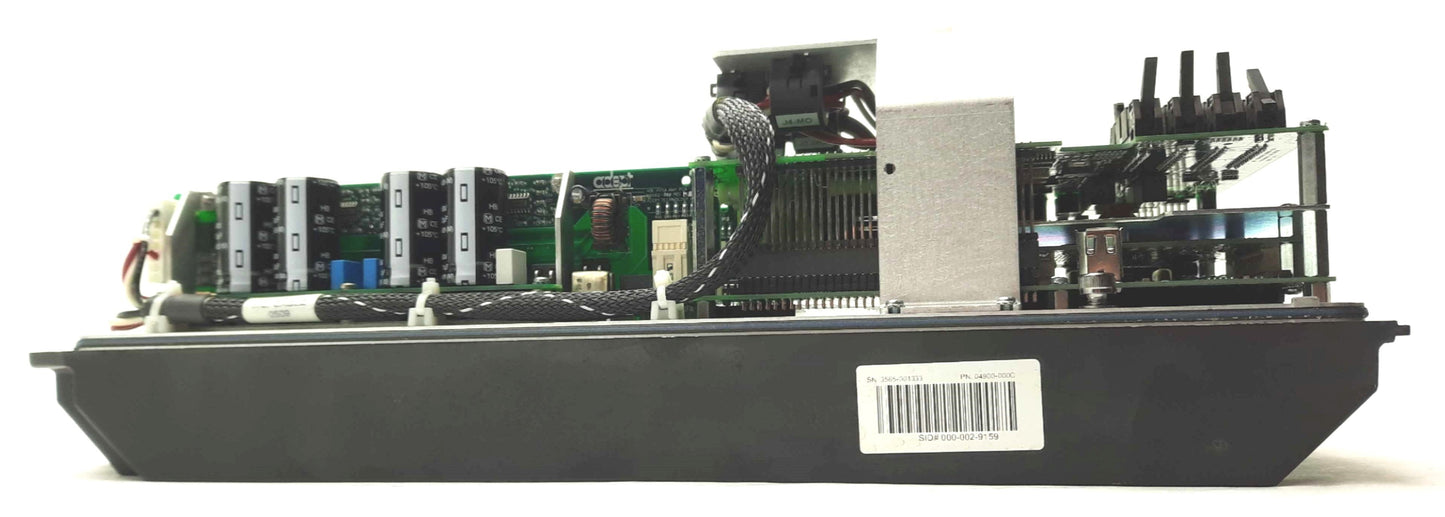

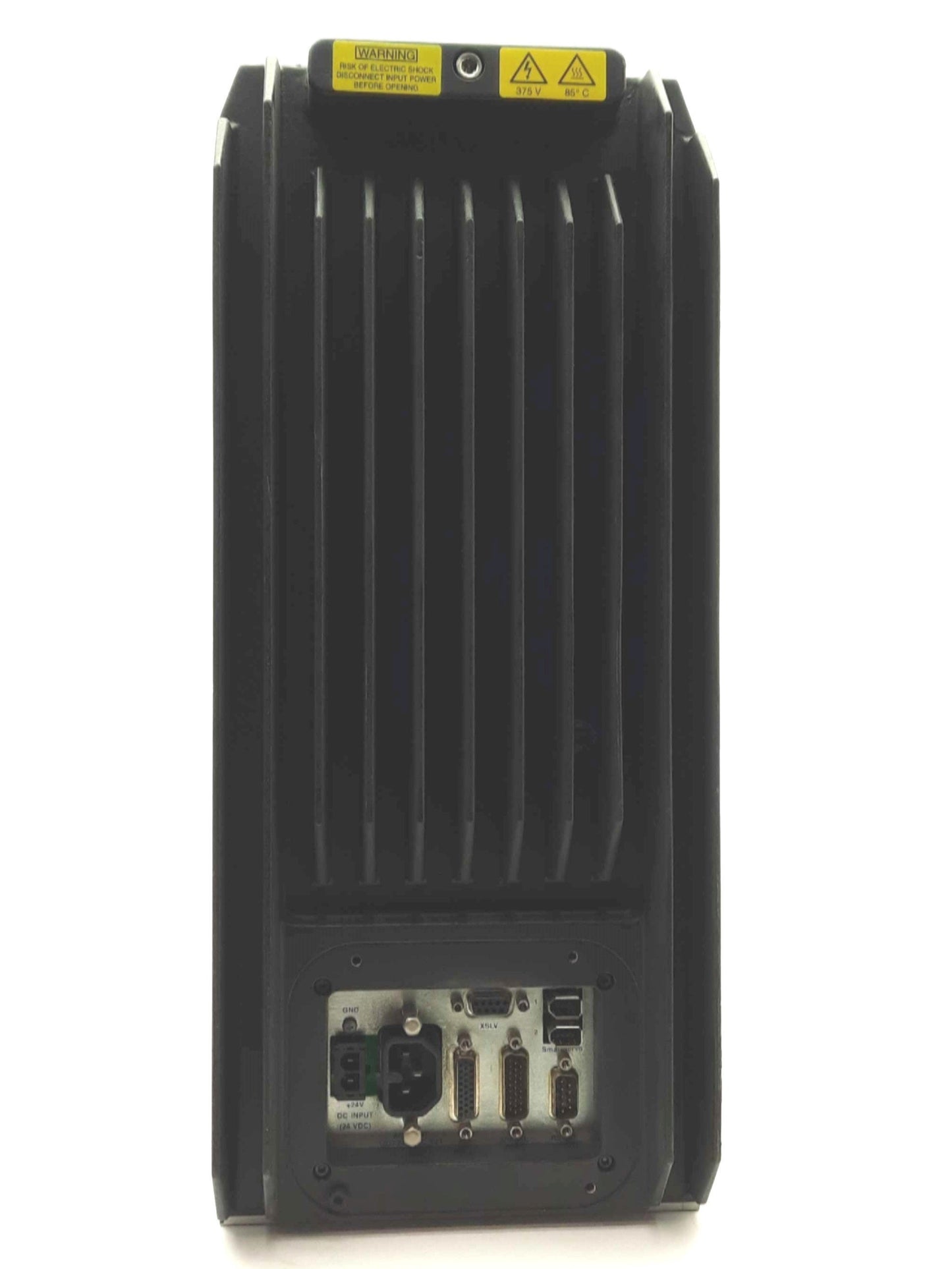

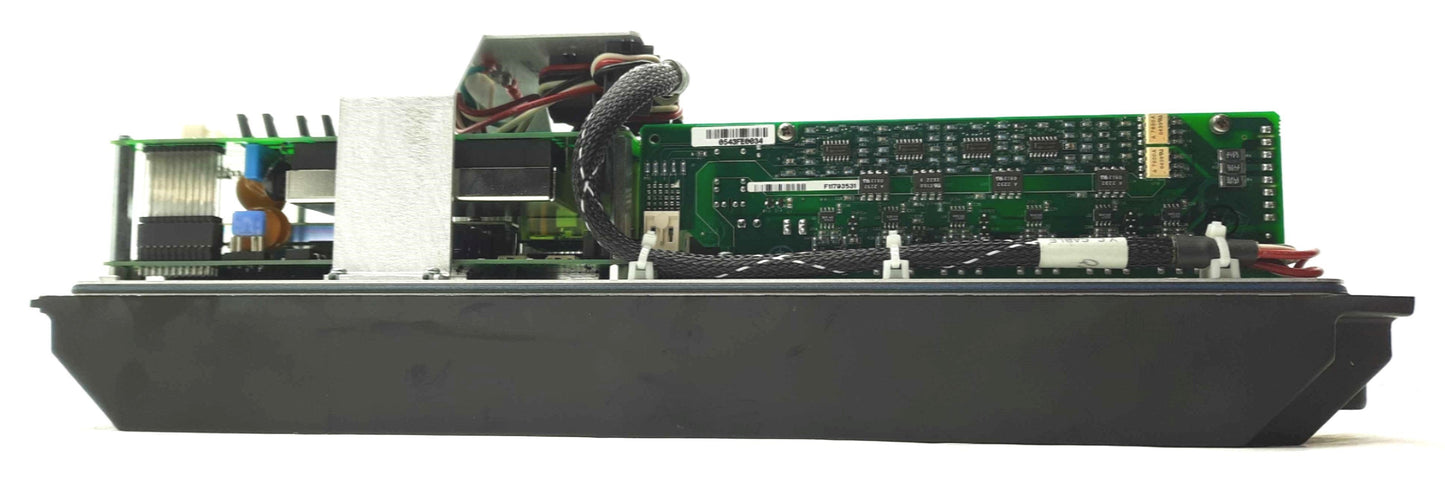

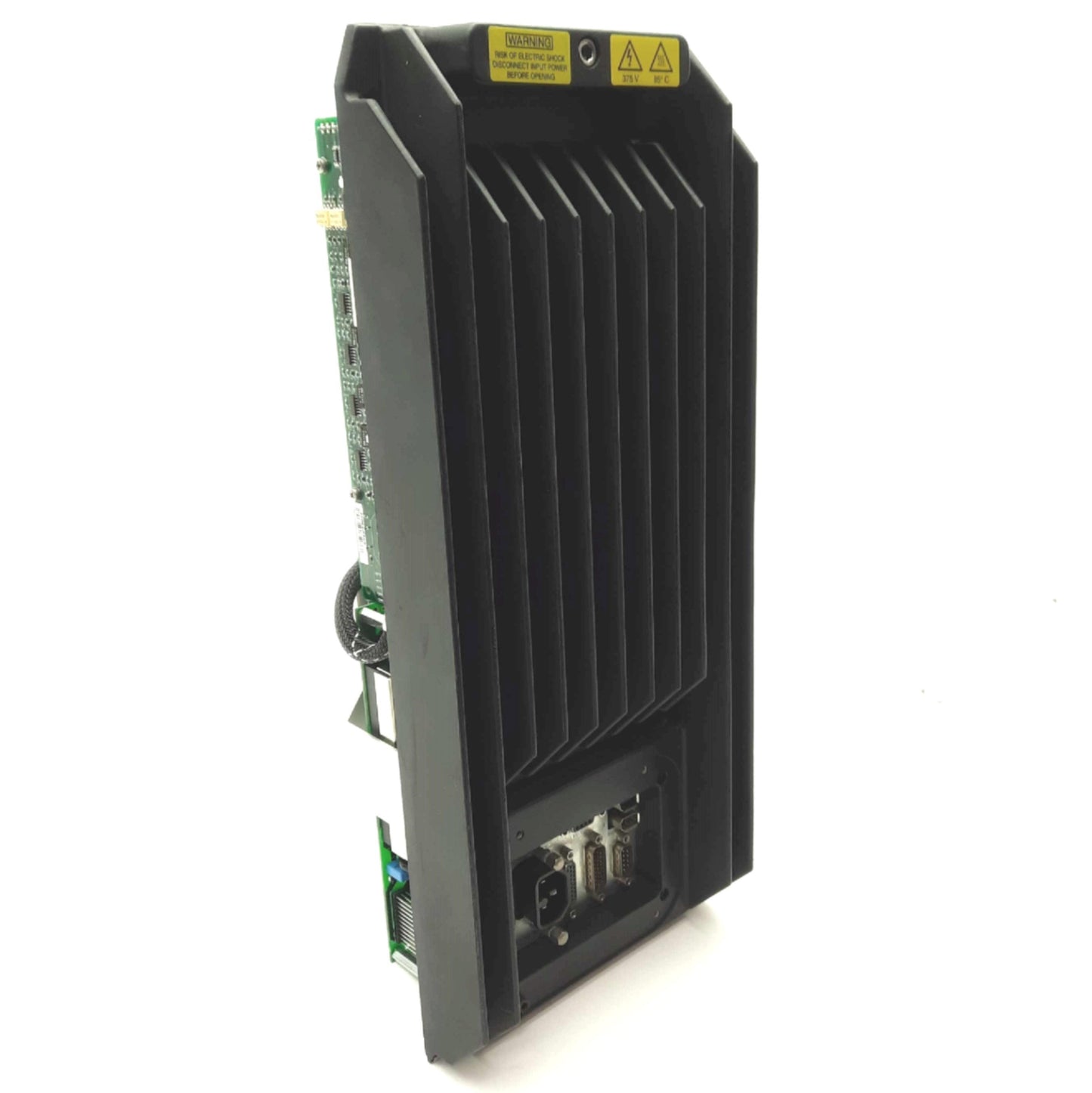

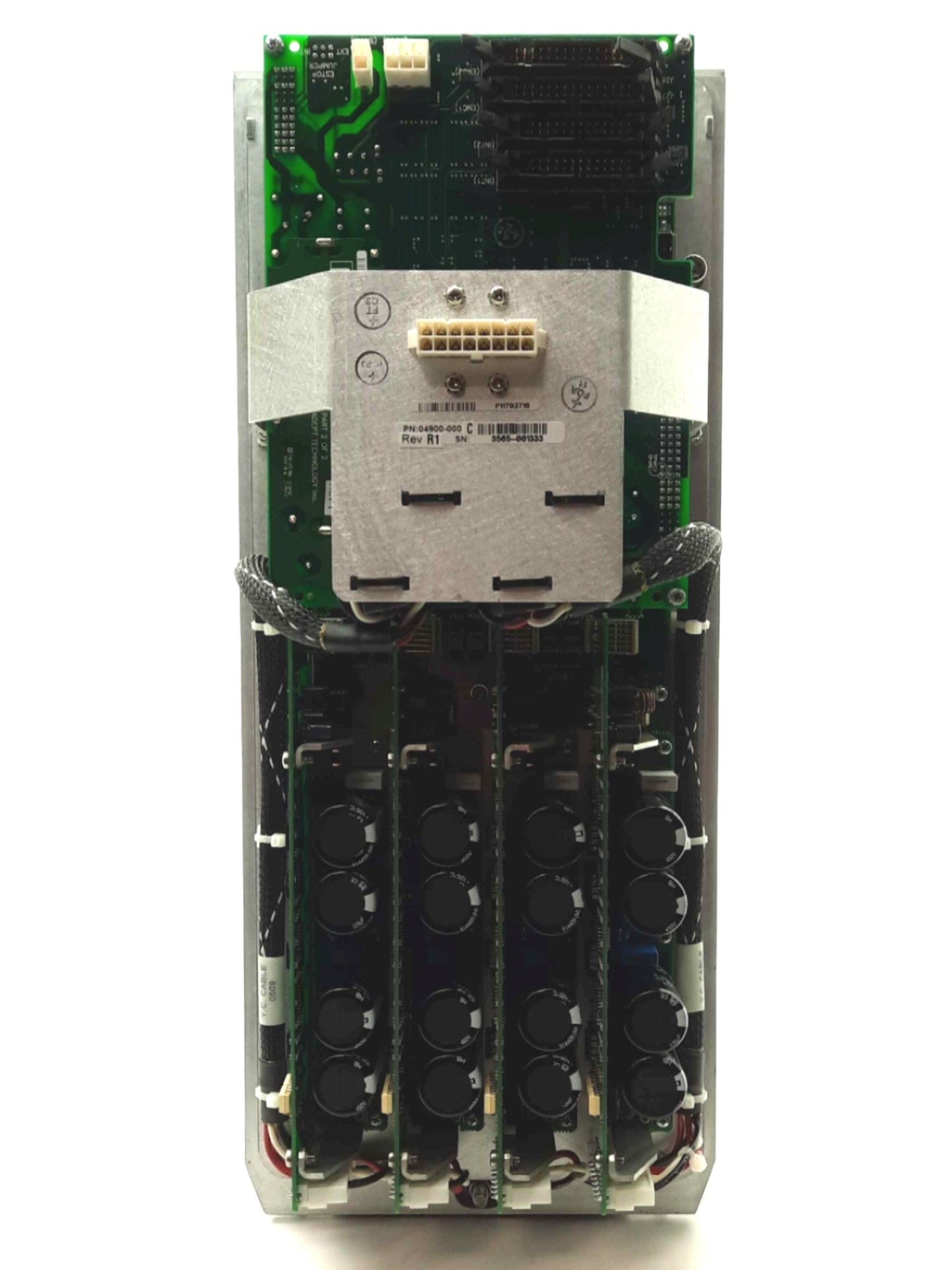

From our inventory we are selling a Adept 04900-000C Rev R1 Power Amplifier & Servo Controller For Cobra s800/600.
Specifications:

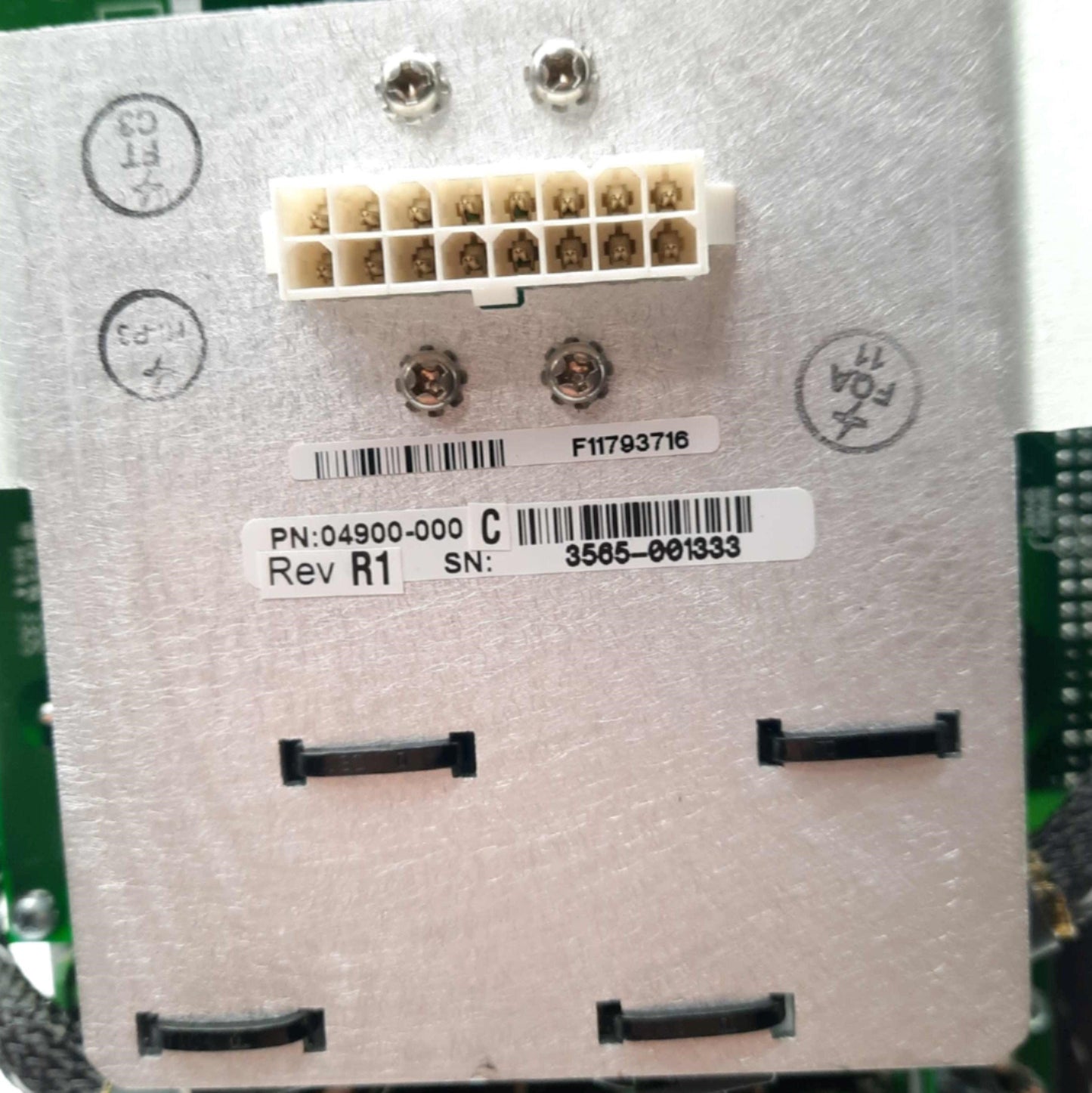

Model #: 04900-000C Rev R1
More Information:
AIB Servo Controller & Power Amplifier
Compatibility: Adept Cobra s600 & s800
Features:
On-board digital I/O
Low EMI for use with noise sensitive equipment
No external fan for quiet robot operation
8 kHz servo rate to deliver low positional errors and superior path following
Sine wave commutation to lower cogging torque and improve path following
Digital feed forward design to maximize efficiency, torque, and velocity
Temperature sensors on all amplifiers and motors for maximum reliability and easy troubleshooting
I/O:
XSLV: DB9 Female
XIO: DB26 Female
XPANEL: DB26 Male
RS-232: DB9 Male
Smart Servo Ports: 2x 6-Pin IEEE 1394
Power Requirements: 1 Phase 200-240VAC 50/60Hz, 24VDC
