Item Condition: Used
SKU: SB-166762
PJ-2-B

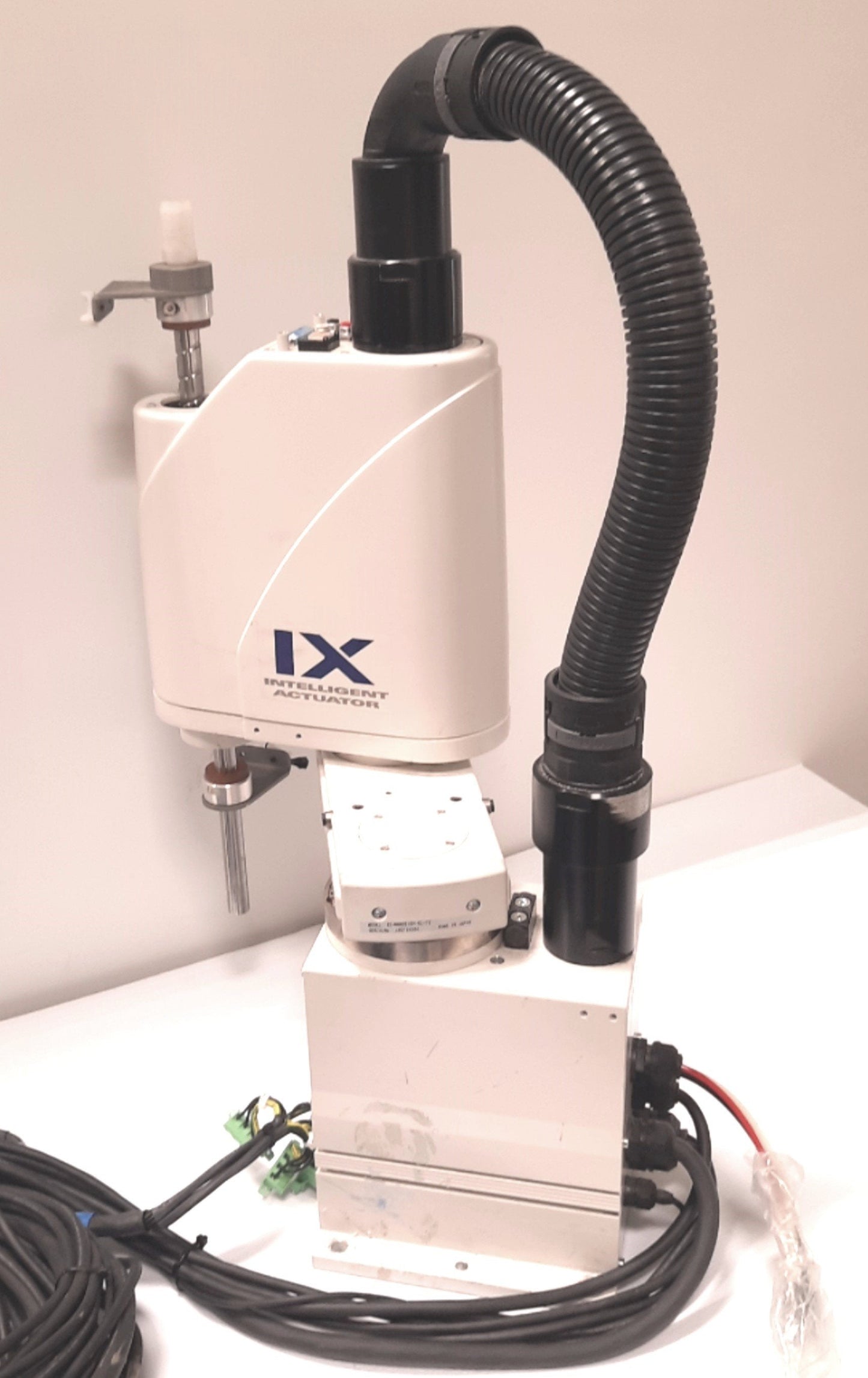

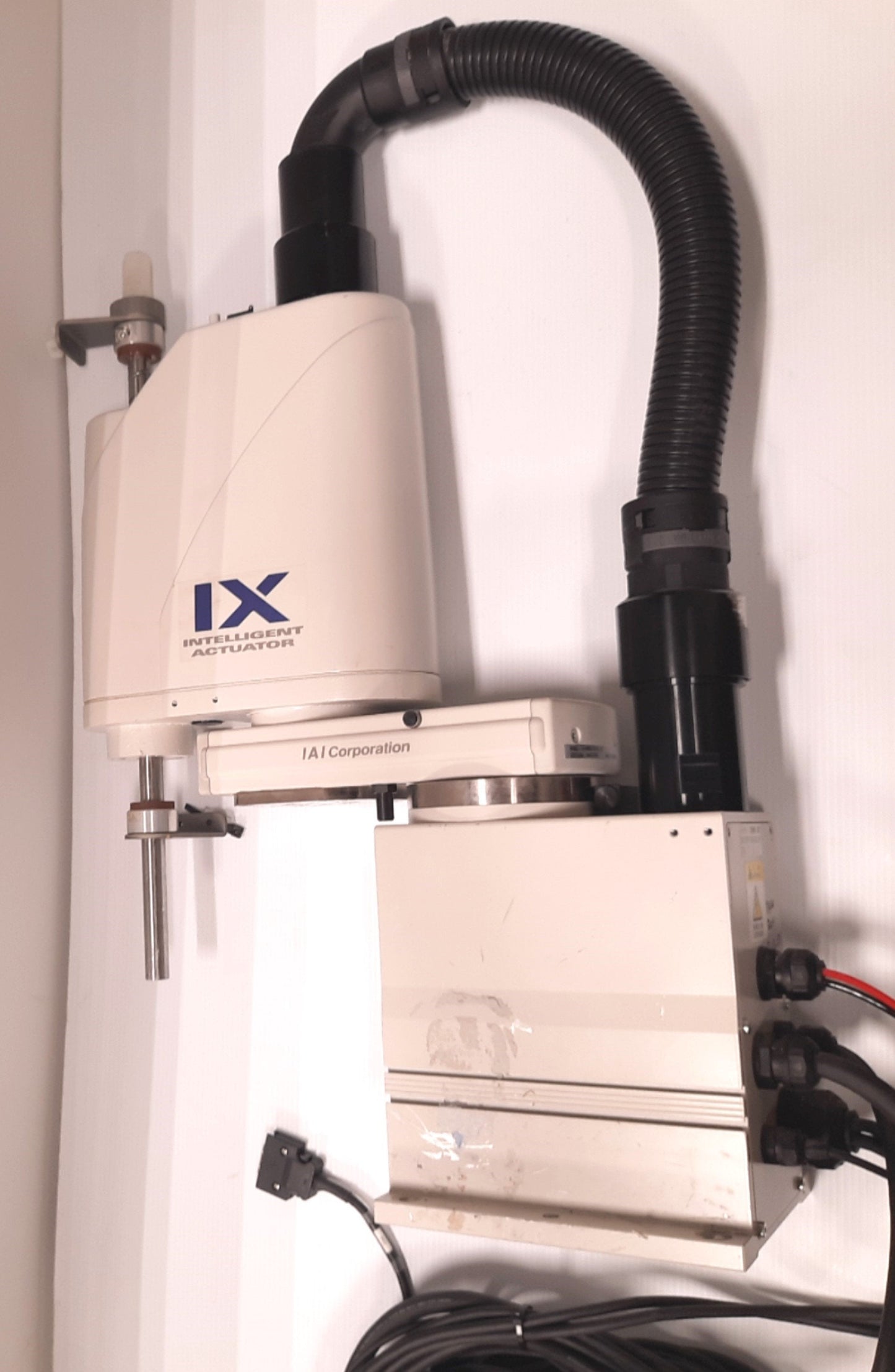

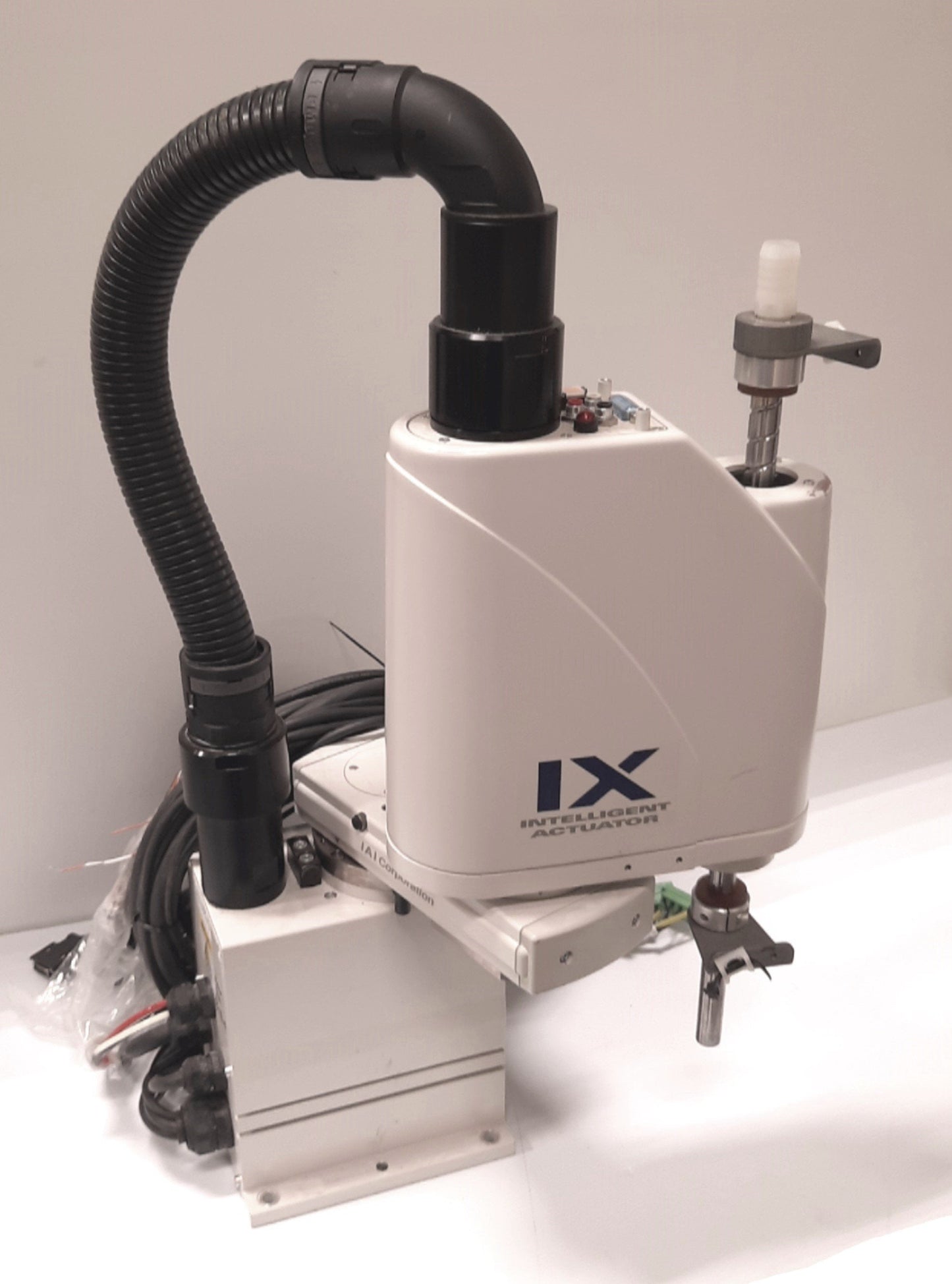

From our inventory we are selling a IAI IX-NNN2515H-5L-T2 SCARA Robot Standard 250mm Arm, 150mm Vertical, 17' Cable.

Specifications:

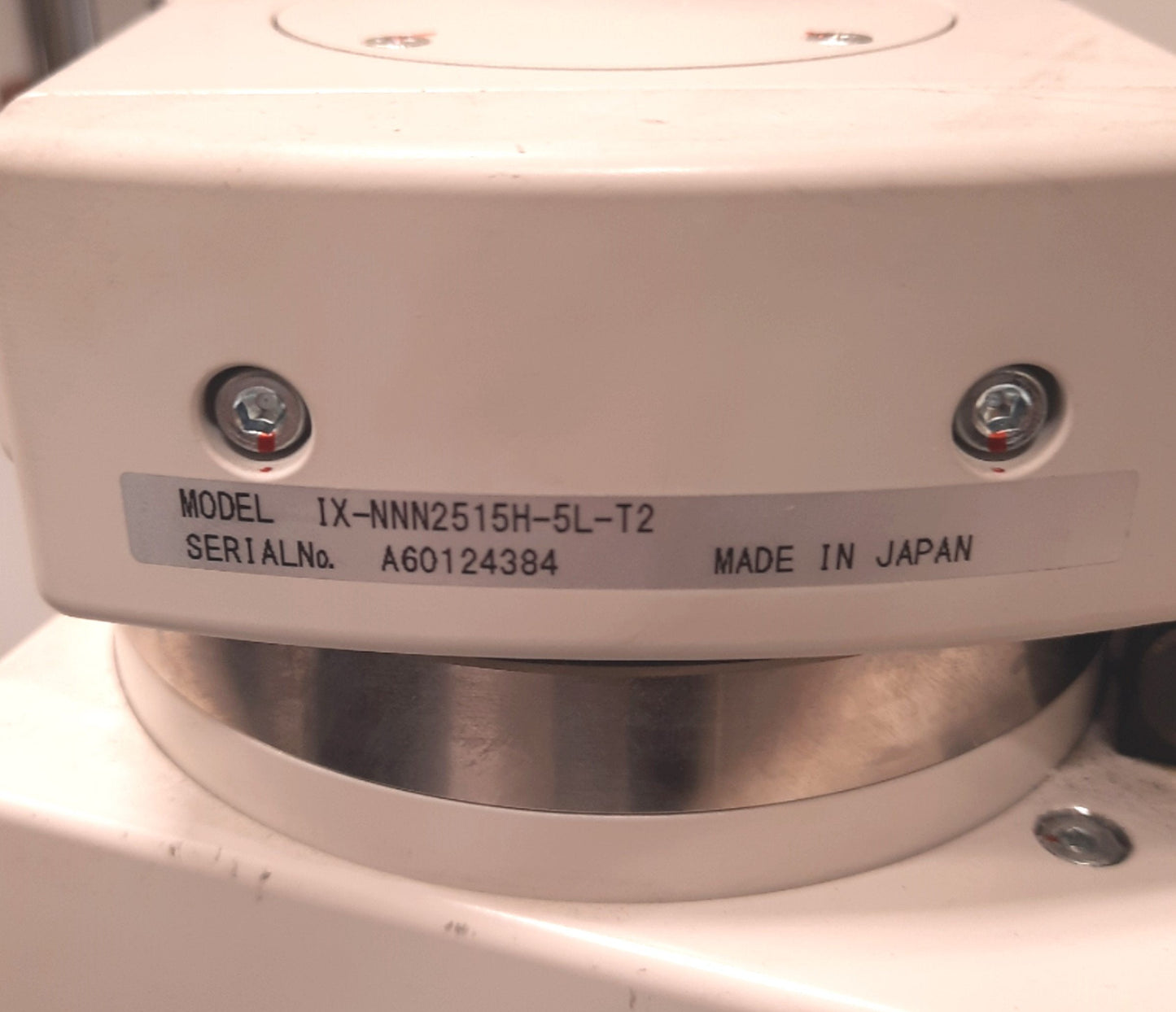

• Model #: IX-NNN2515H-5L-T2
• More Information:
  • IAI SCARA Robot
    • Arm Length: 250mm
    • Number of Axes: 4
    • Load Capacity: 1 kg Rated, 3 kg Maximum
    • Encoder Type: Absolute
    • Cable Length: 17'
    • Connection: 15 Pin D-sub  Socket
    • Axis Configuration:
      • Axis 1: Arm 1, 125mm Length, ñ120ø
      • Axis 2: Arm 2, 125mm Length, ñ130ø
      • Axis 3: Vertical Axis 150mm Range
      • Axis 4: Rotating Shaft, ñ360ø
    • Max Speed:
      • Axis 1 & 2: 3191mm/s (Resultant Speed)
      • Axis 3      : 1316mm/s
      • Axis 4      : 1600 Deg/s
    • Motor Capacity:
      • Axis 1      : 200W
      • Axis 2 & 3: 100W
      • Axis       4: 50W

This item will be shipped freight. Freight shipping cost is included to a location with a truck height loading dock and full size semi truck and trailer access. Full size truck access and forklift is acceptable. Deliveries to limited access/residential and/or requiring a liftgate will be subject to additional fees. Please contact us for additional information and quotes.
