Item Condition: Used
SKU: SB-166755
R3-3-A

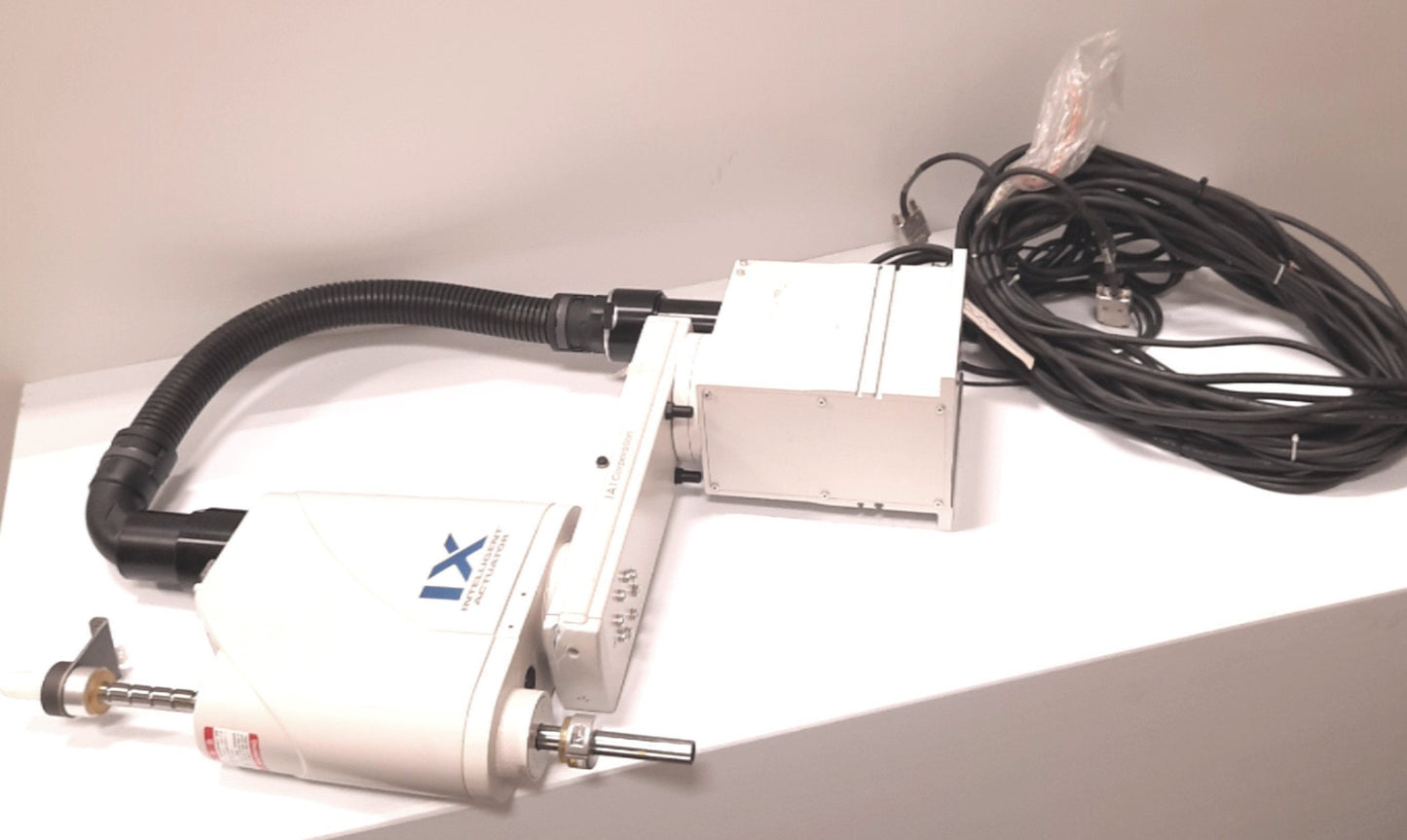

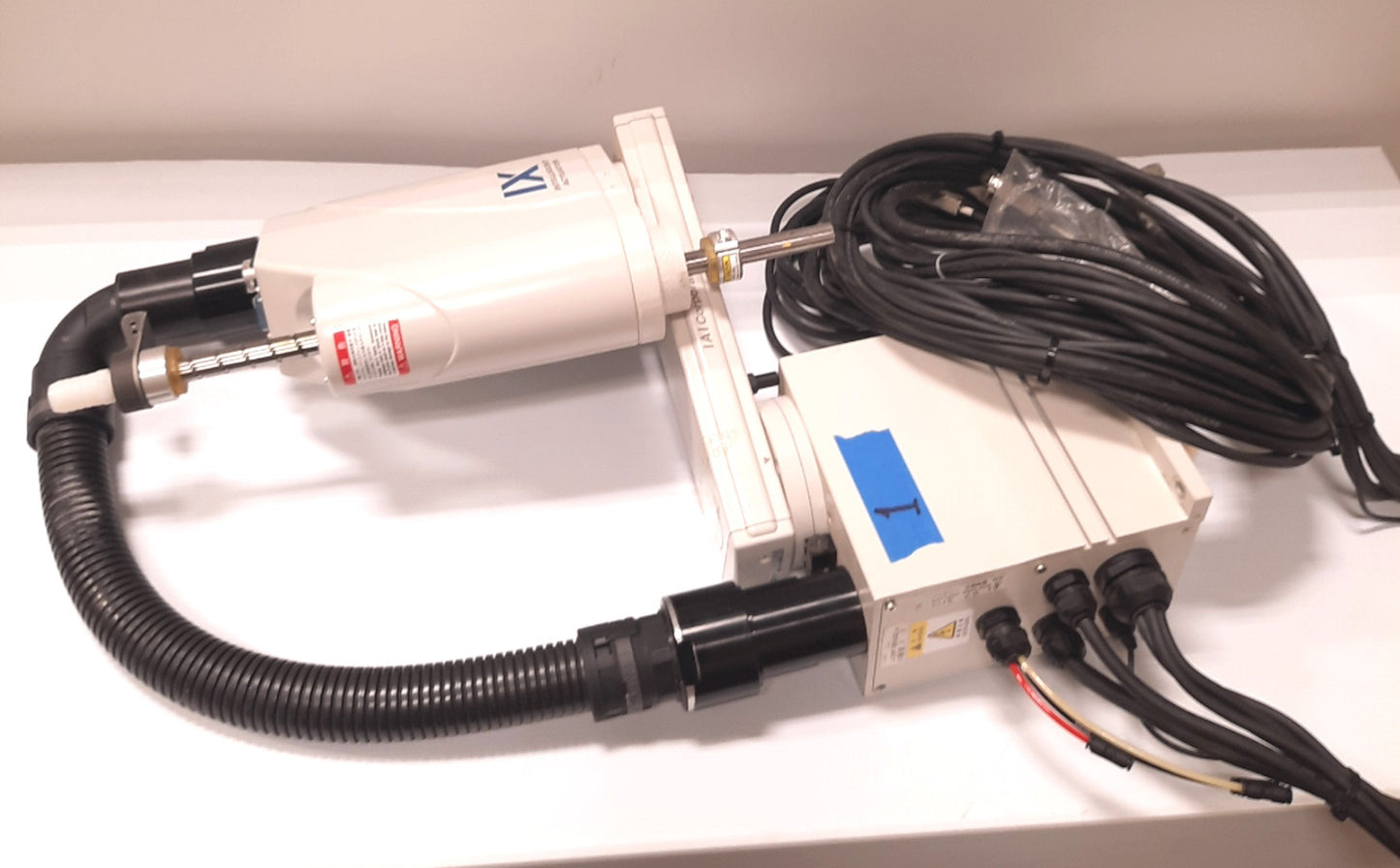

From our inventory we are selling a IAI IX-NNN3515-10L-T2 SCARA Robot Standard, 350mm Arm 150mm Vertical, 17Ft Cable.

Specifications:

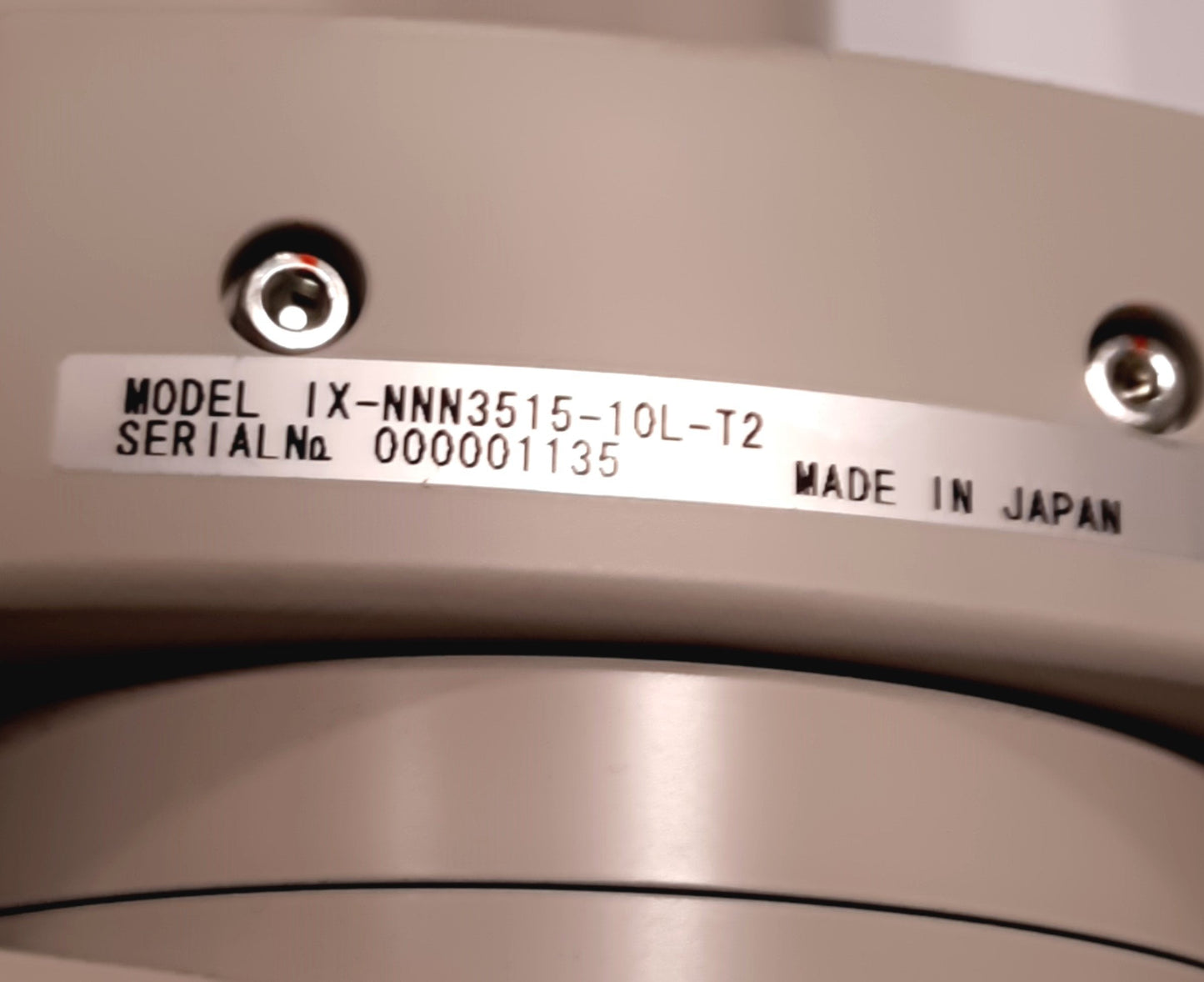

• Model #: IX-NNN3515-10L-T2
• More Information:
  • IAI Small SCARA Robot
    • Type: Standard
    • Arm Length: 350mm
    • Number of Axes: 4
    • Load Capacity: 1Kg Rated, 3Kg Maximum
    • Encode Type: Absolute
    • Cable Length: 17'

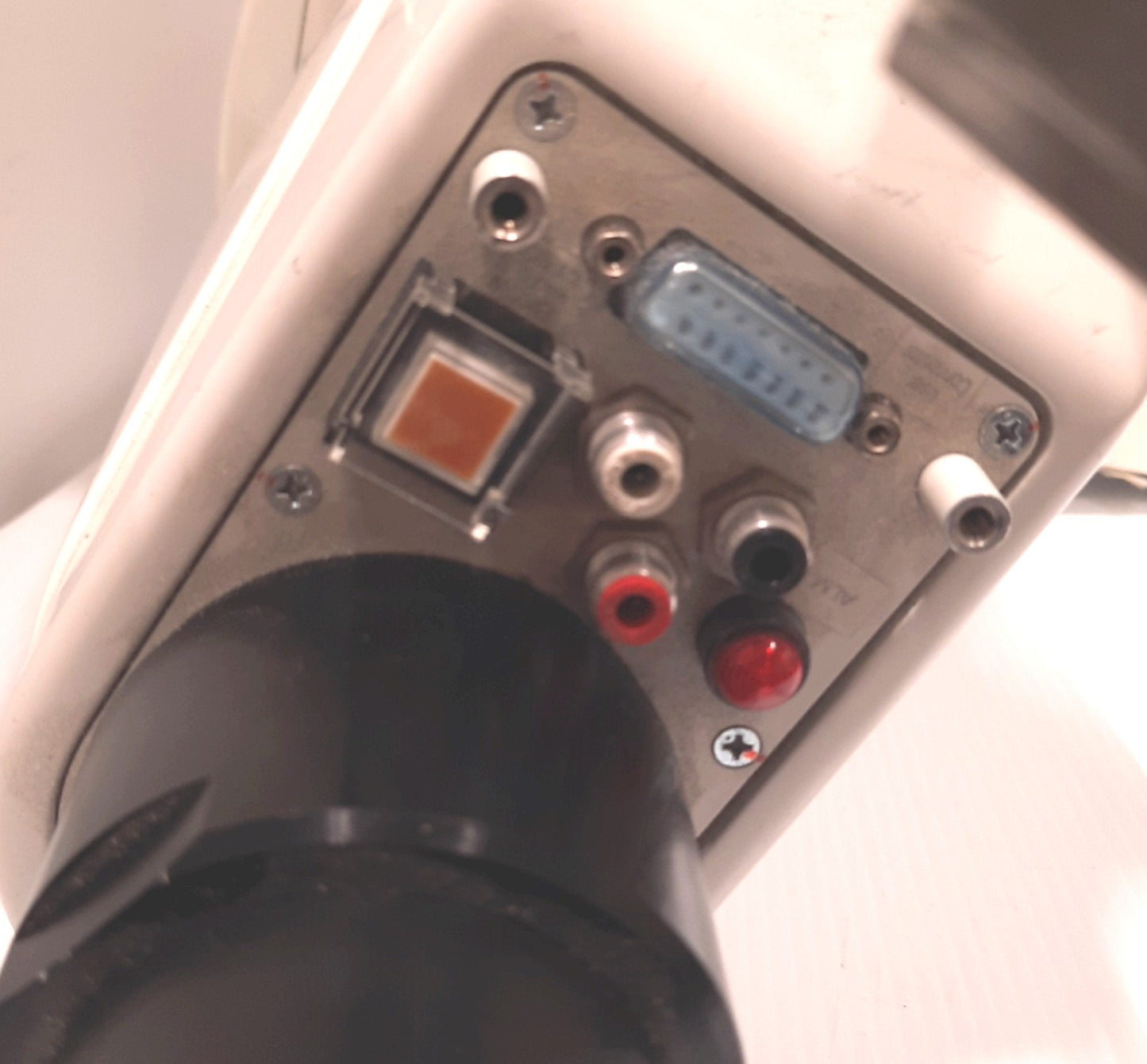

    • Connection: D-sub 15 Pin Socket
    • Axis Configuration
      • Axis 1: Arm 1, 225mm Length, ñ120ø
      • Axis 2: Arm 2, 125mm Length, ñ135ø
      • Axis 3: Vertical Axis, 150mm
      • Axis 4: Rotating Axis, ñ360ø
    • Max Speed:
      • Axis 1 & 2: 3979mm/s (Composite Speed)
      • Axis 3: 1106mm/s
      • Axis 4: 1600ø/s
    • Motor Capacity:
      • Axis 1: 200W
      • Axis 2 & 3: 100W
      • Axis 4: 50W

This item will be shipped freight. Freight shipping cost is included to a location with a truck height loading dock and full size semi truck and trailer access. Full size truck access and forklift is acceptable. Deliveries to limited access/residential and/or requiring a liftgate will be subject to additional fees. Please contact us for additional information and quotes.
