Item Condition: Used
SKU: SB-150734
PN-3-B

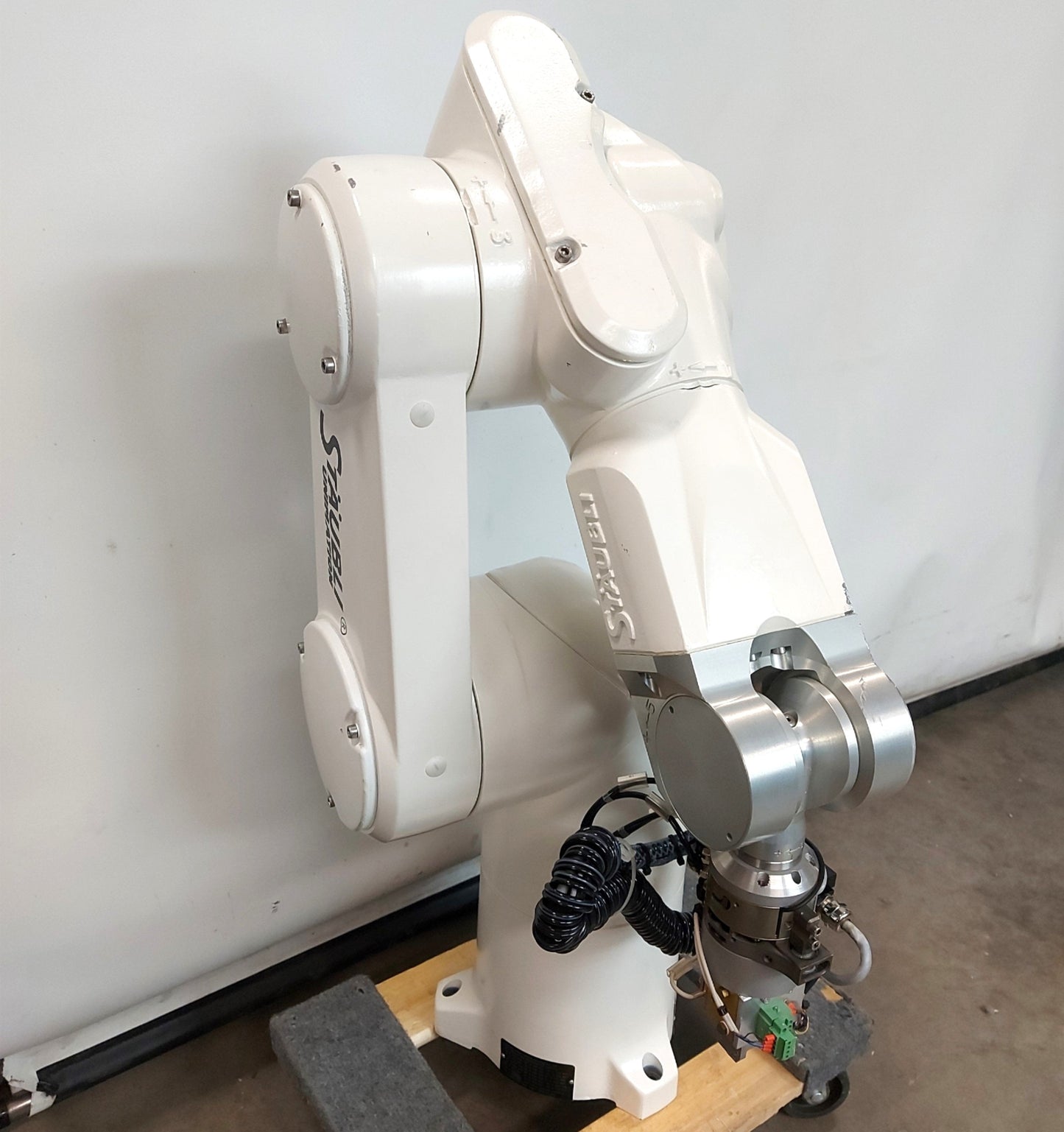

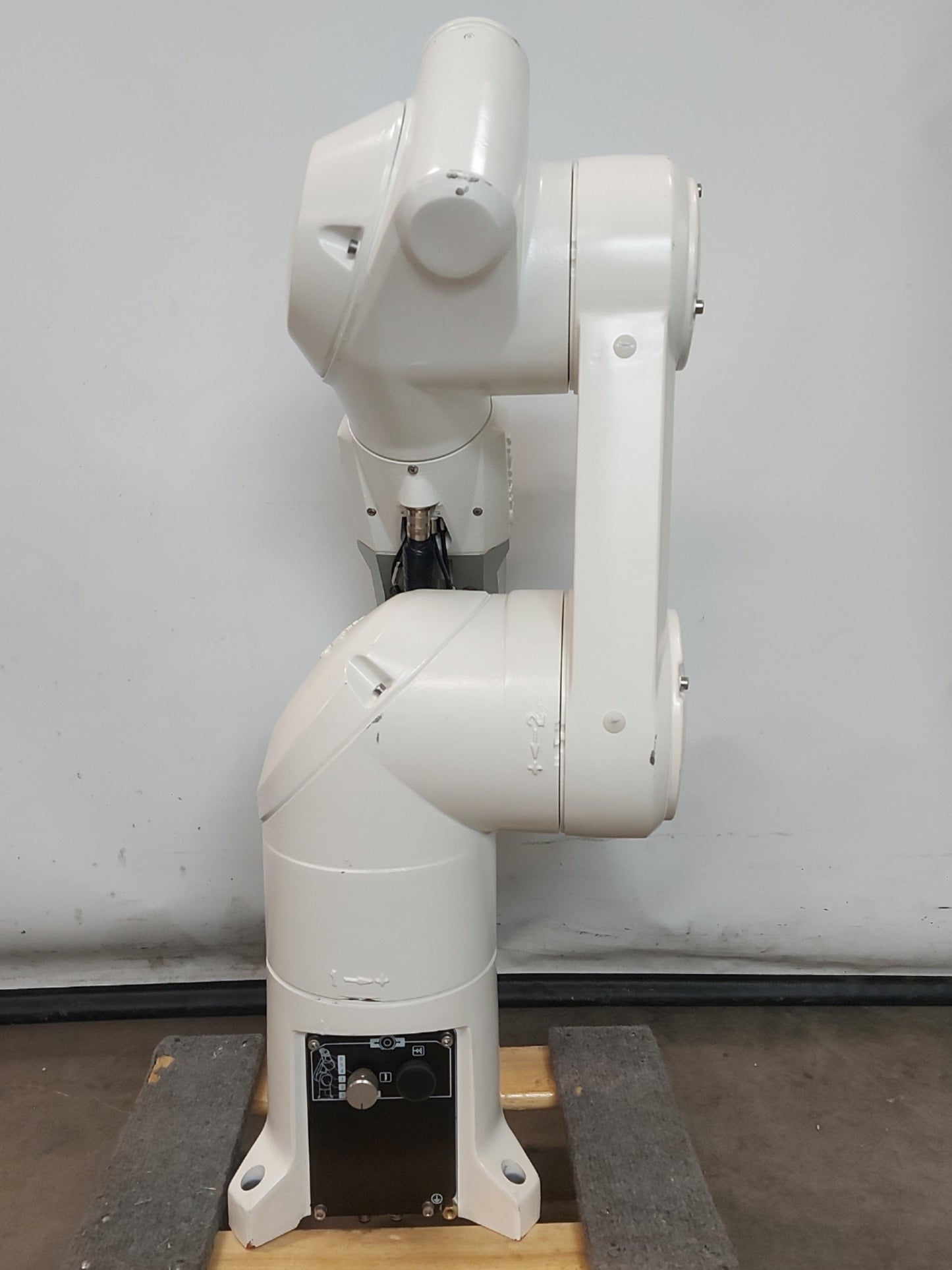

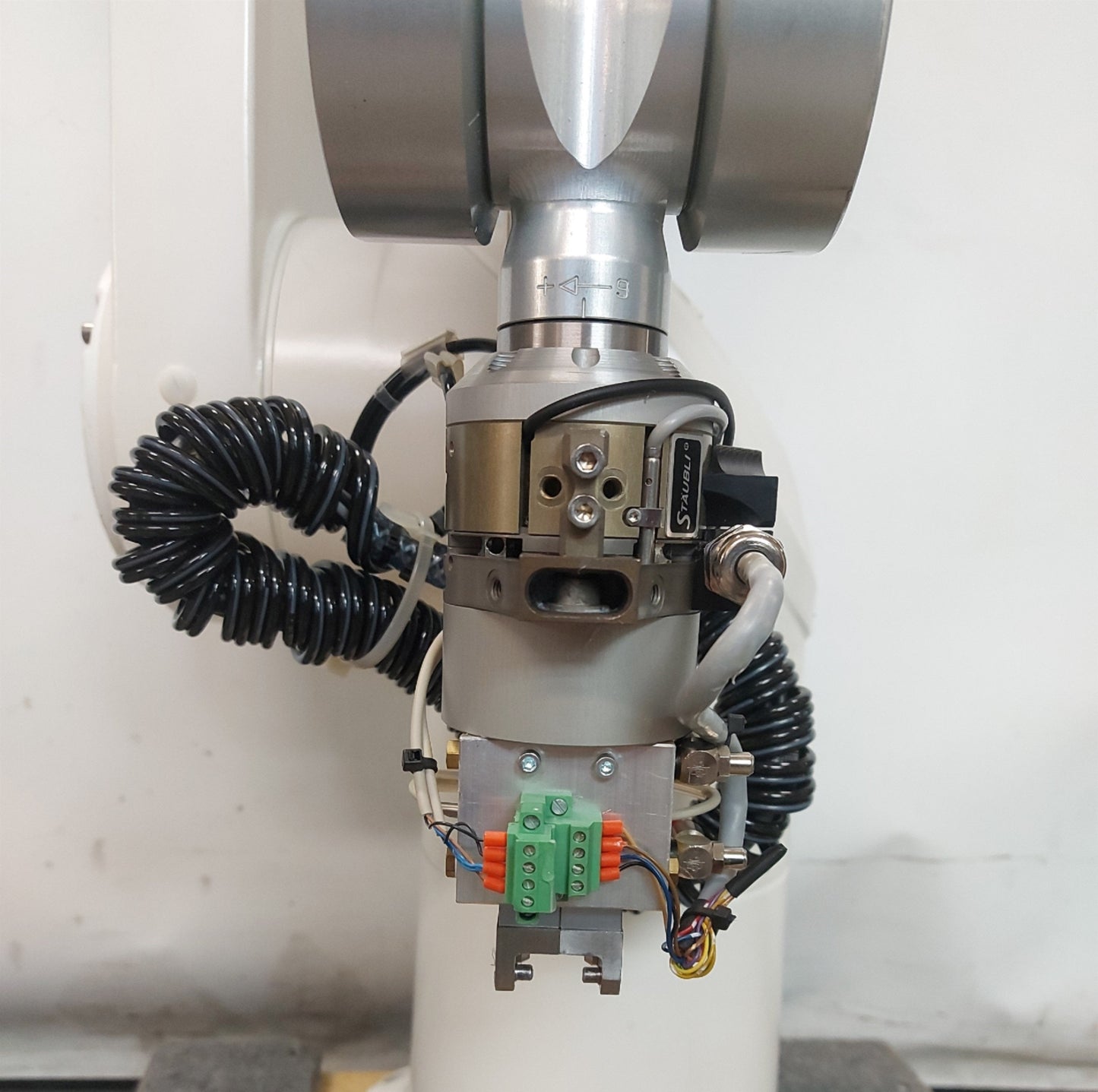

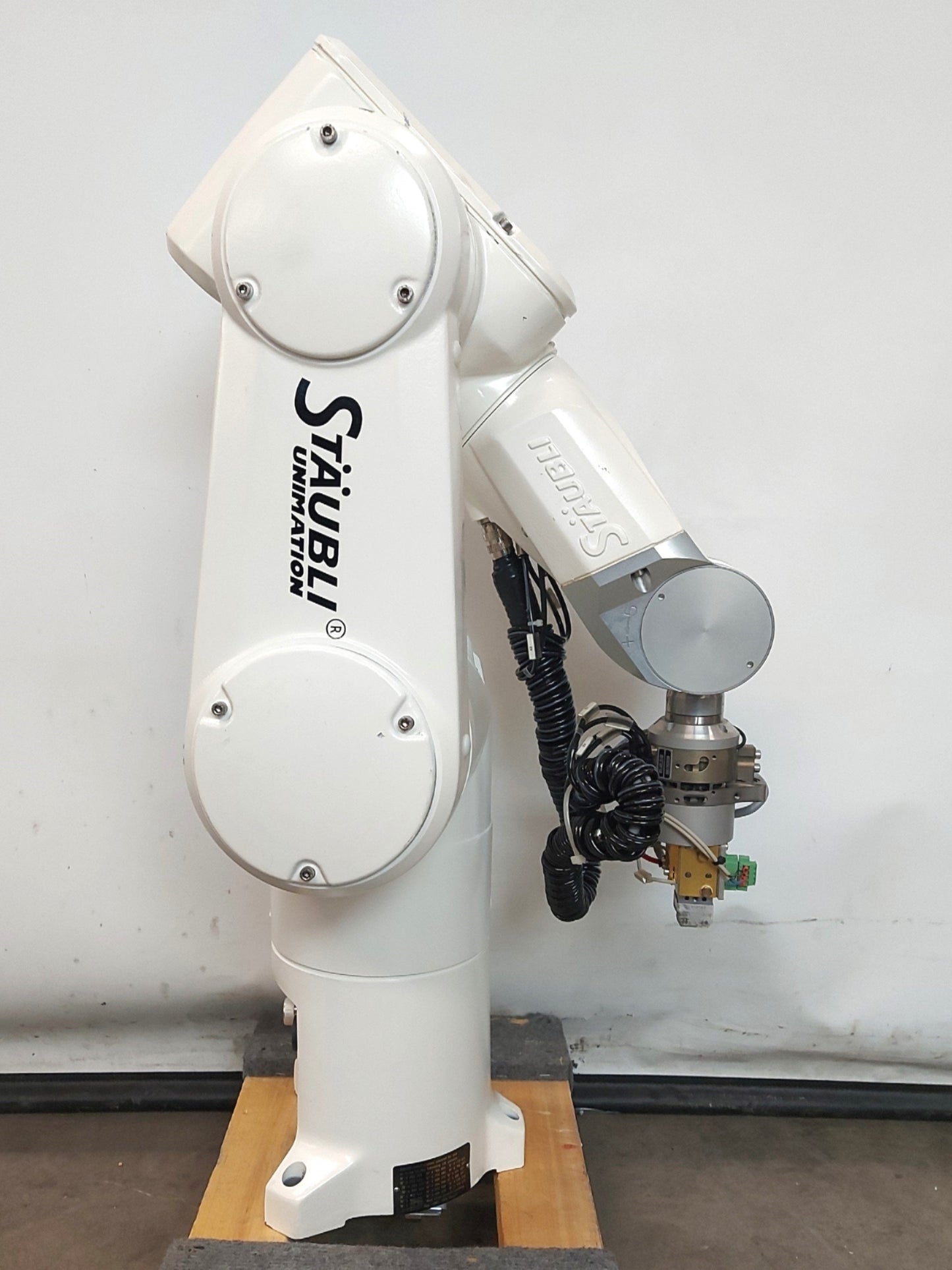

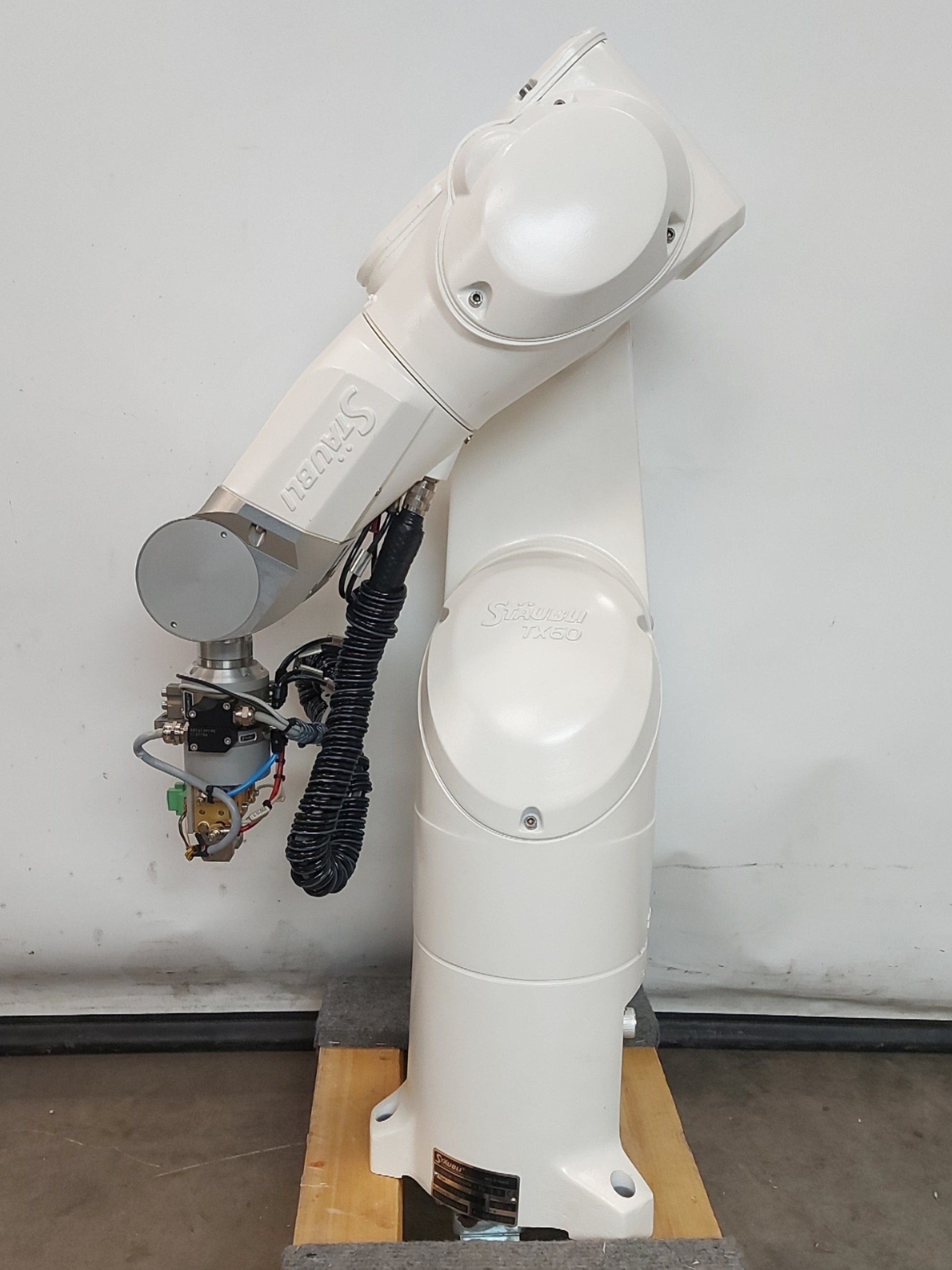

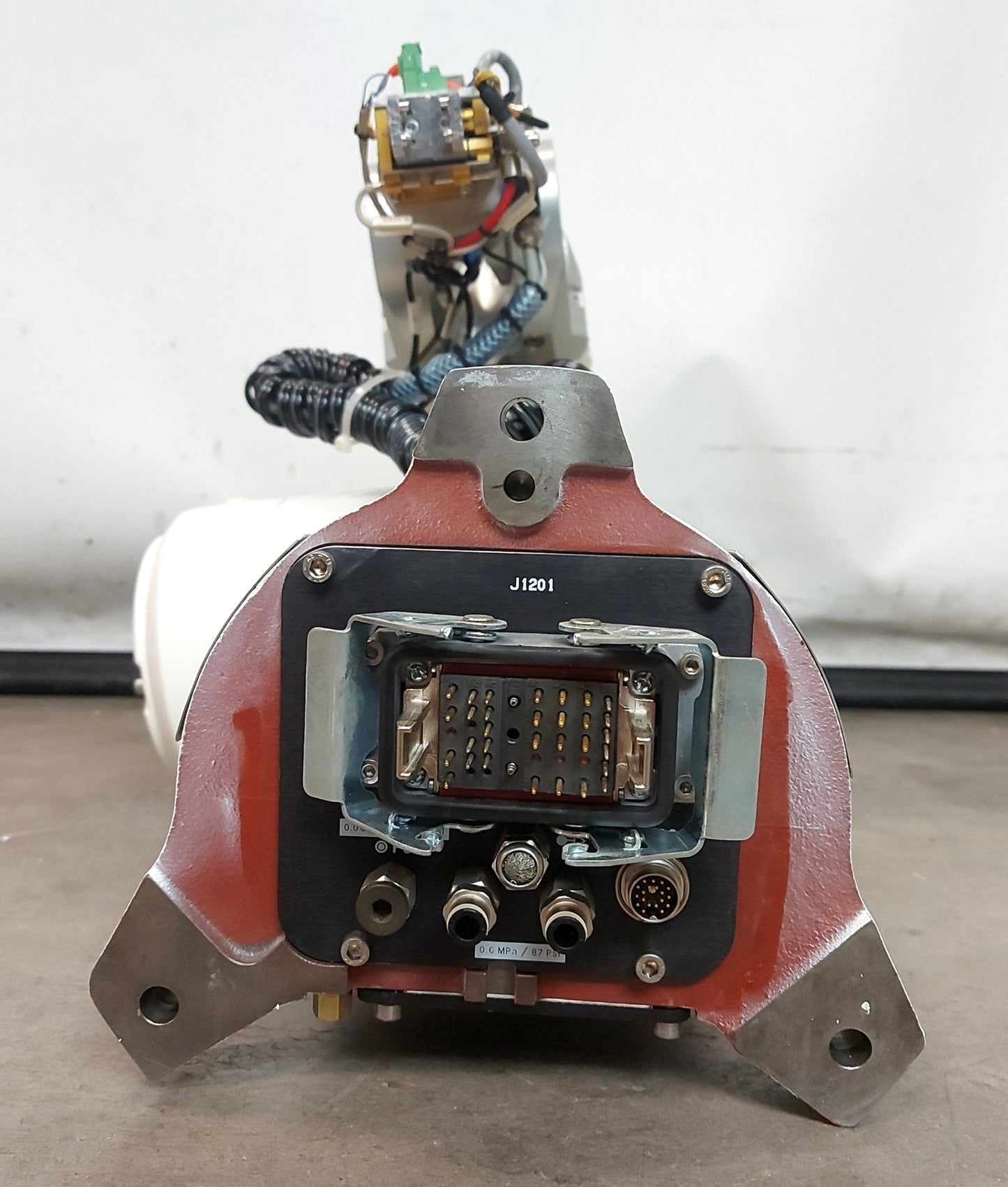

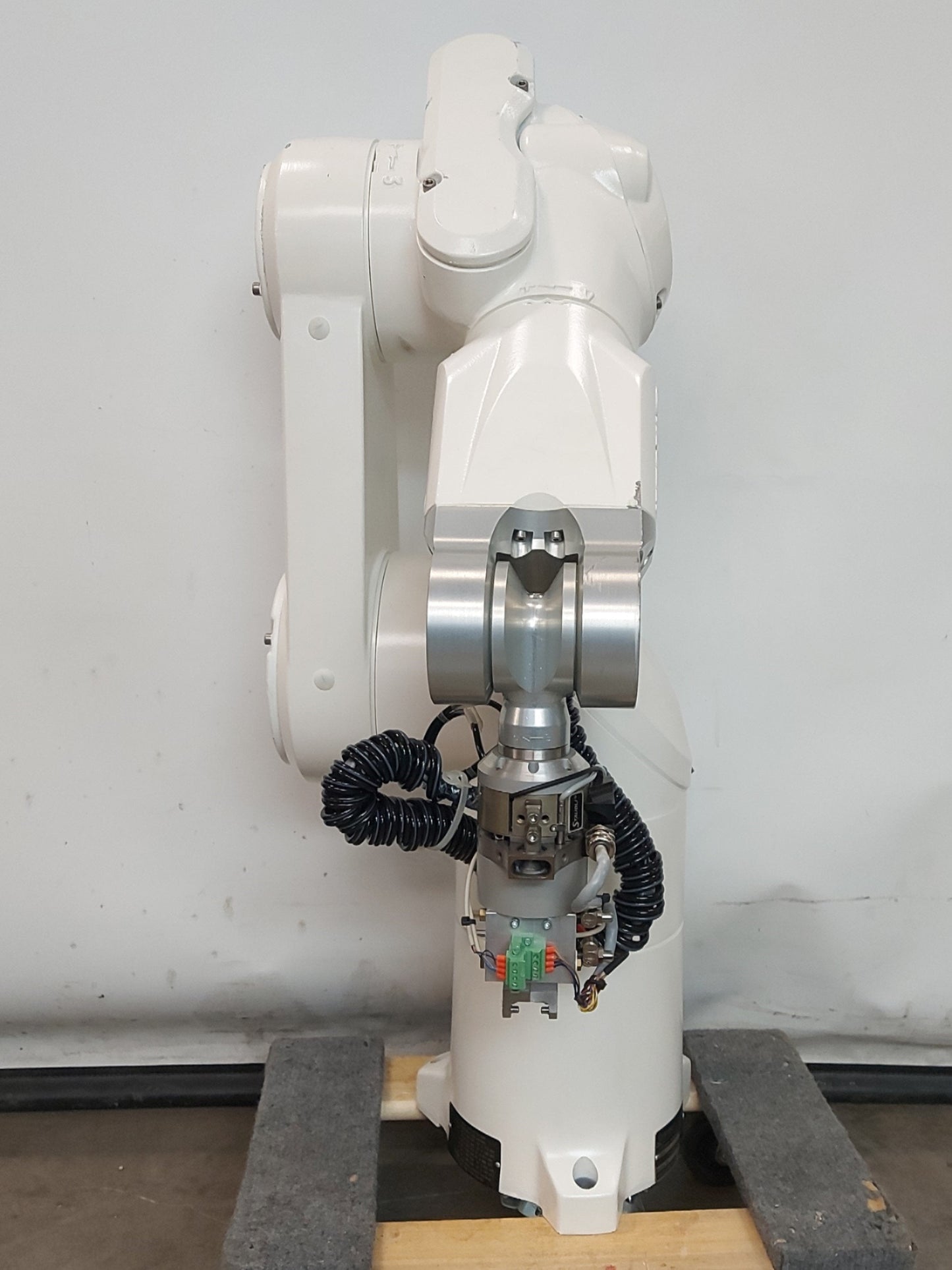

From our inventory we are selling a Staubli TX60 6-Axis Robot Manipulator Arm, 4.5kg Load, 670mm Reach, 8m/s Speed.

Specifications:

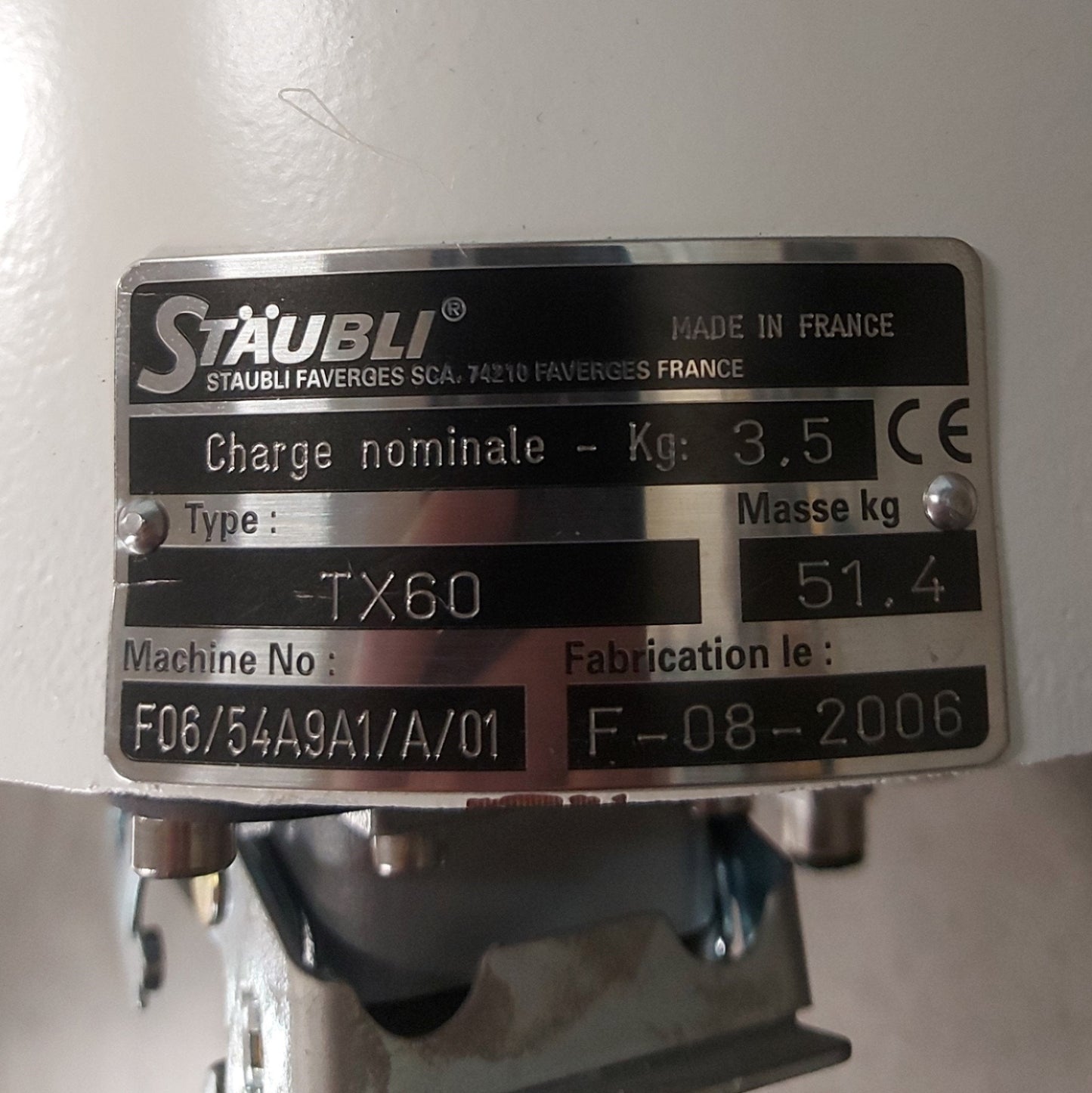

• Model #: TX60
• More Information:
  • SCARA Robot Arm
  • Load:
    • Max: 4.5kg
    • Nominal: 3.5kg
  • Repeatability: ñ0.02mm
  • Work Envelope:
    • Max Reach Between 1 & 6 Axis: 670mm
    • Max Reach Between 1 & 5 Axis: 600mm
    • Min Reach Between 1 & 5 Axis: 190mm
    • Min Reach Between 2 & 5 Axis: 189mm
    • Reach Between 3 & 5 Axis: 310mm
  • Maximum Speed:
    • Axis 1: 435ø/S
    • Axis 2: 410ø/S
    • Axis 3: 540ø/S
    • Axis 4: 995ø/S
    • Axis 5: 1065ø/S
    • Axis 6: 1445ø/S
    • Max Speed at Load Gravity Center: 8m/s
    • Max Inertia Axis 5: 0.325kg.mý
    • Max Inertia Axis 6: 0.1kg.mý
  • Range of Motion:
    • Axis 1: ñ180ø
    • Axis 2: ñ127.5ø
    • Axis 3: ñ142.5ø
    • Axis 4: ñ270ø
    • Axis 5: +132.5ø/-122.5ø
    • Axis 6: ñ270ø
  • Dimensions: 33.5 x 14.5 x 12.5"

This item will be shipped freight. Freight shipping cost is included to a location with a truck height loading dock and full size semi truck and trailer access. Full size truck access and forklift is acceptable. Deliveries to limited access/residential and/or requiring a liftgate will be subject to additional fees. Please contact us for additional information and quotes.
