Used Aerotech ATS20015-40P Motorized Linear Stage 6" Travel .1575in/rev w/BMS60 Servo
Sold out
$2,950.00 USD
Warranty Terms and Conditions

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for Aerotech. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-138795
RN-2-B

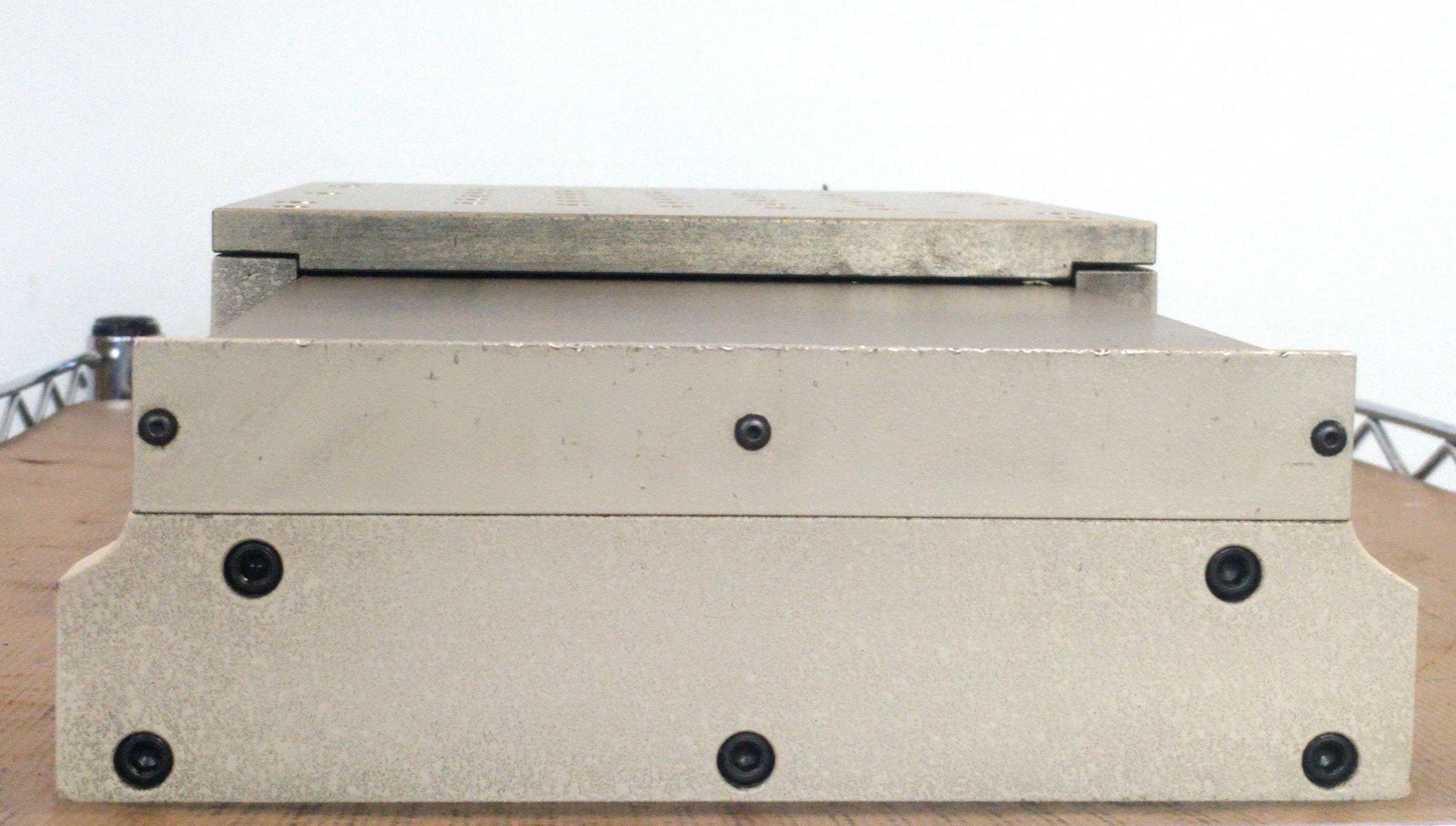

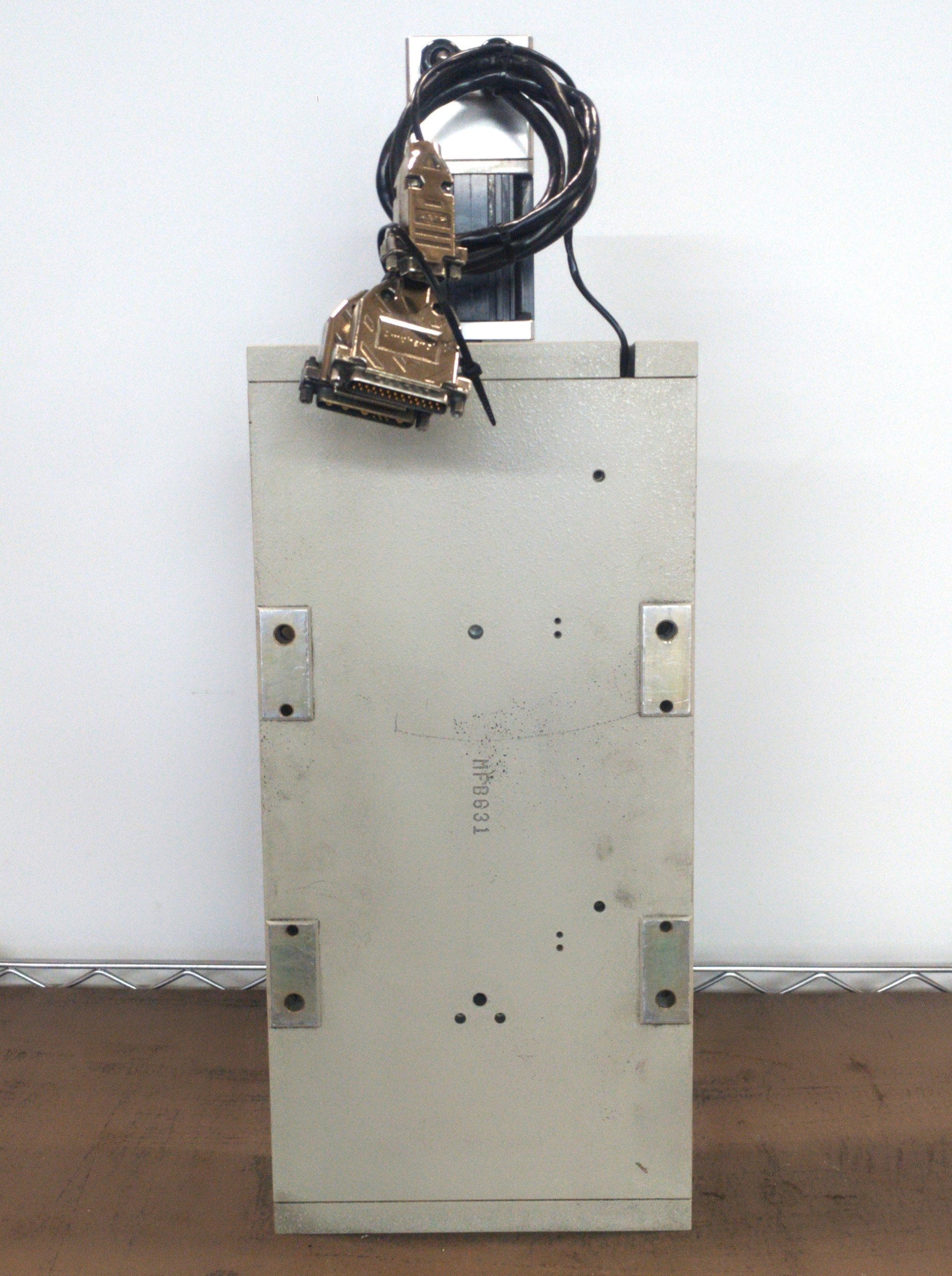

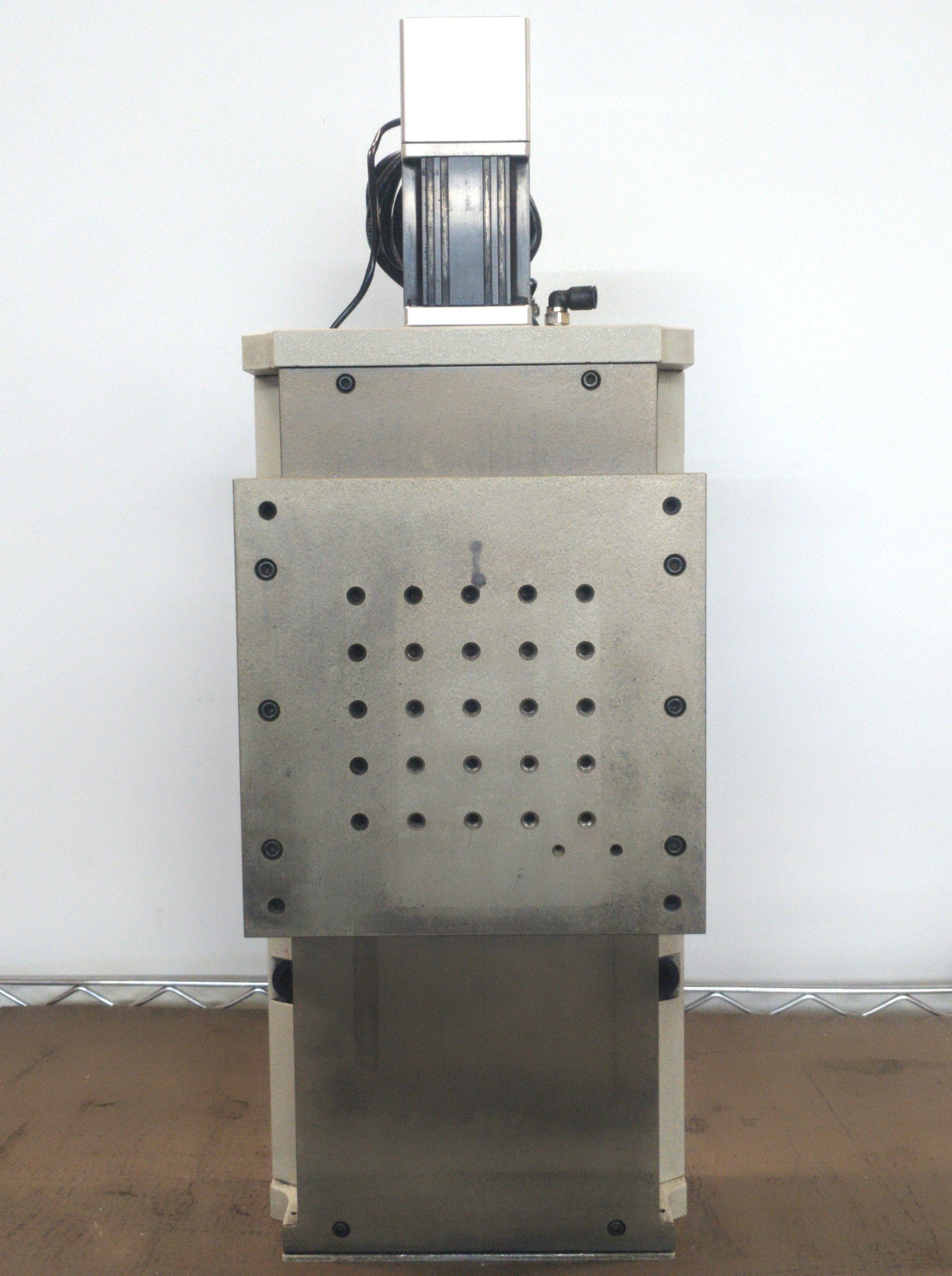

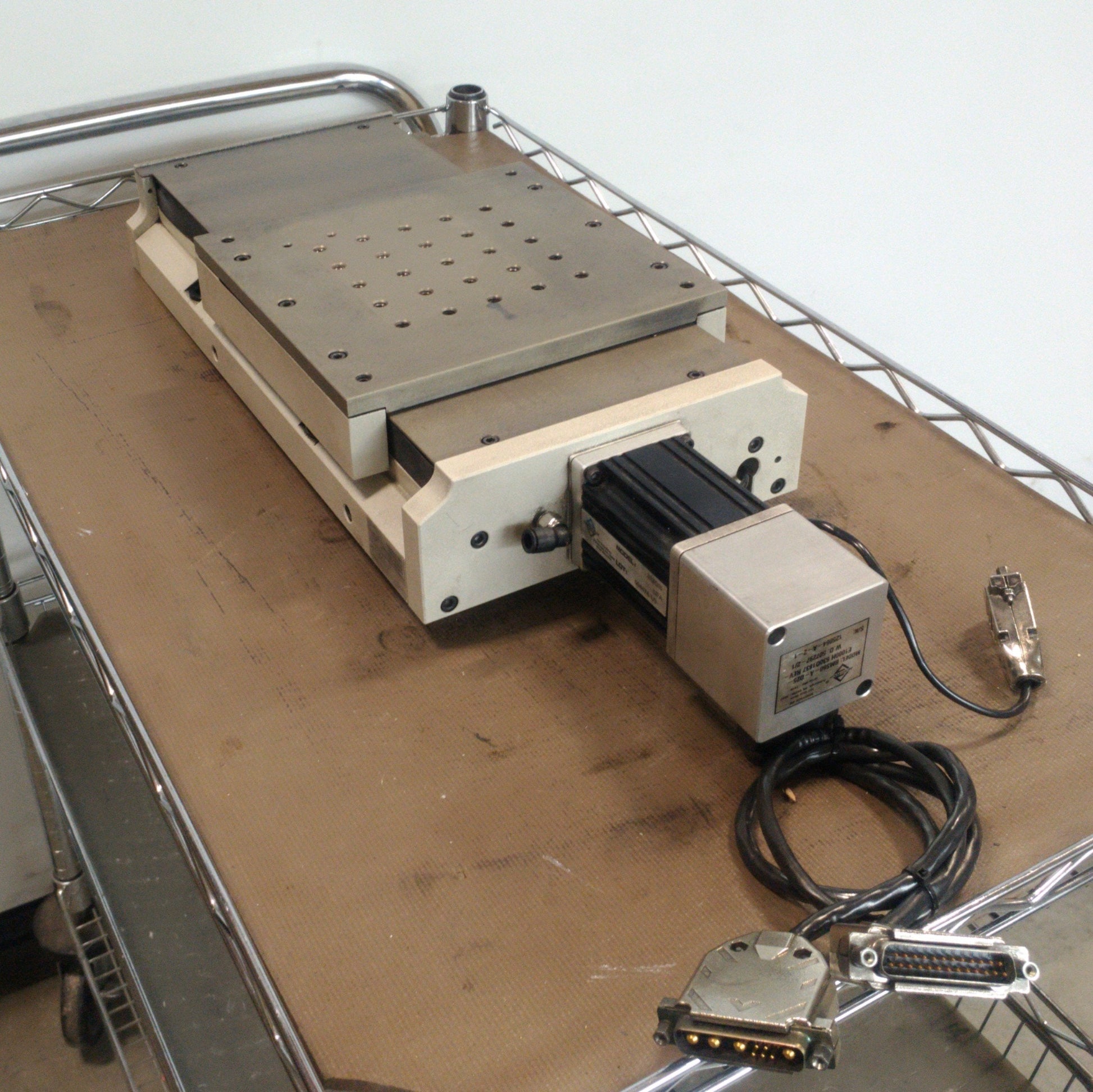

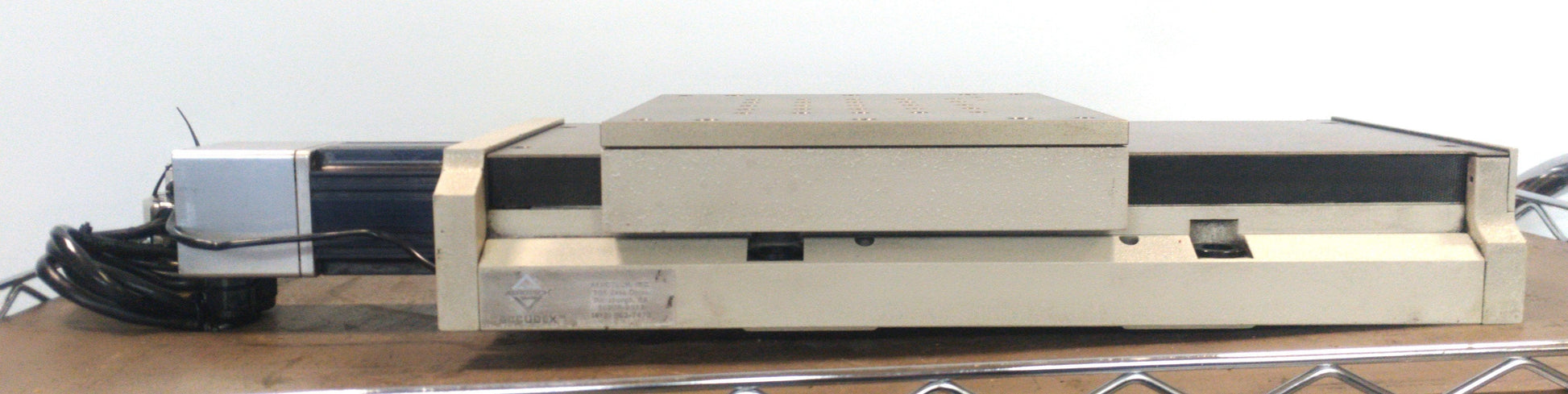

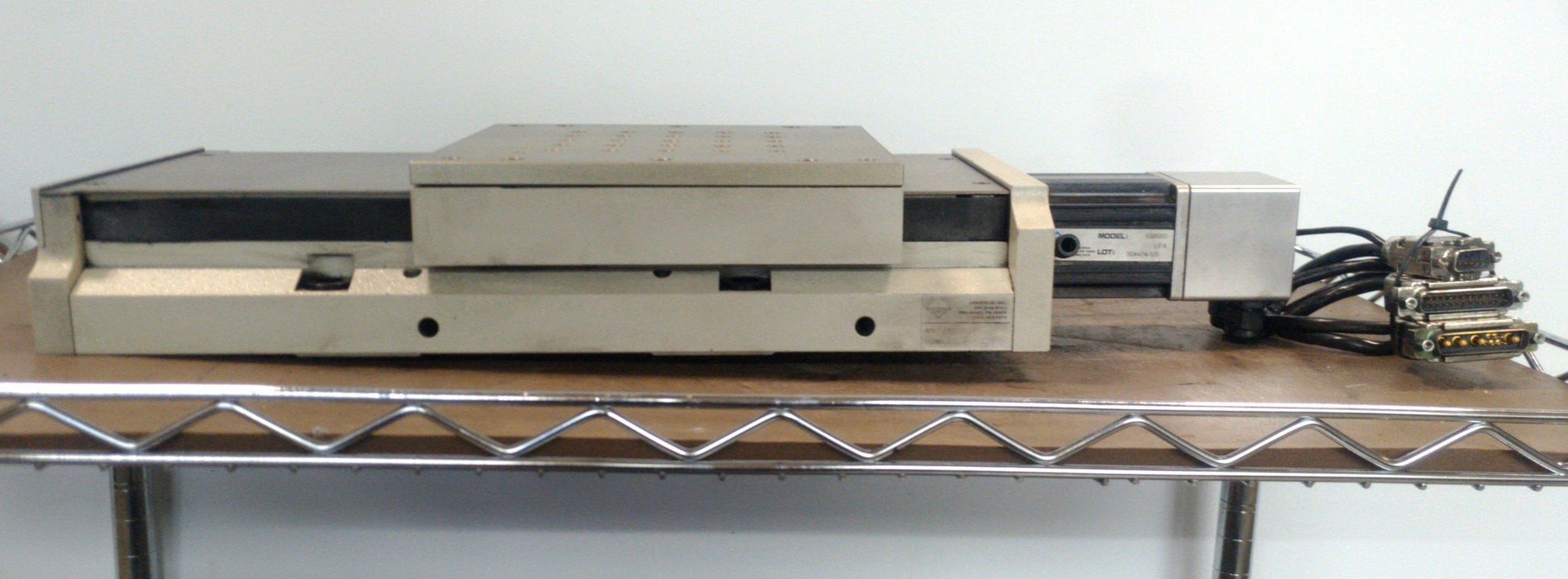

From our inventory we are selling a Aerotech ATS20015-40P Motorized Linear Stage 6" Travel .1575in/rev w/BMS60 Servo.

Specifications:

  • Model #: ATS20015-40P
  • More Information:
    • Precision Double-Row Ball Bearing Linear Stage
    • Travel: 6" (150mm)
    • Inch Per Revolution: .1575" (4mm)
    • Max Speed: 8.7in/s (220mm/s)
    • Motor Mount: NEMA 23
    • Load Capacity: 176lbs (80kg)
    • Stage Dimensions: 8 x 8"
    • Stage Thread: M6 x 1.0
    • Connector: 9-Pin D-Sub Linear Encoder
    • Dimensions: 22 1/16 x 8 x 3 1/4"

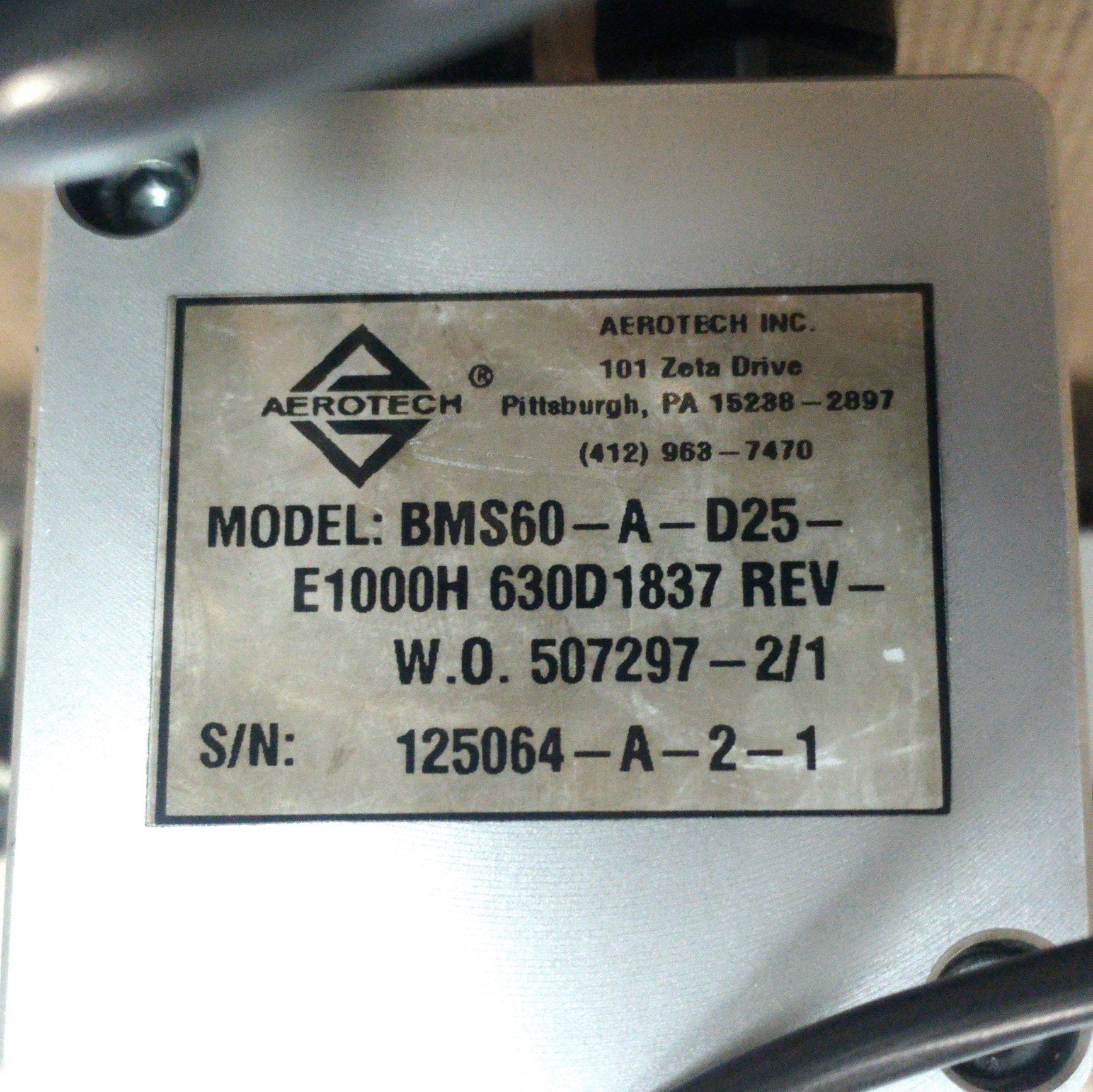

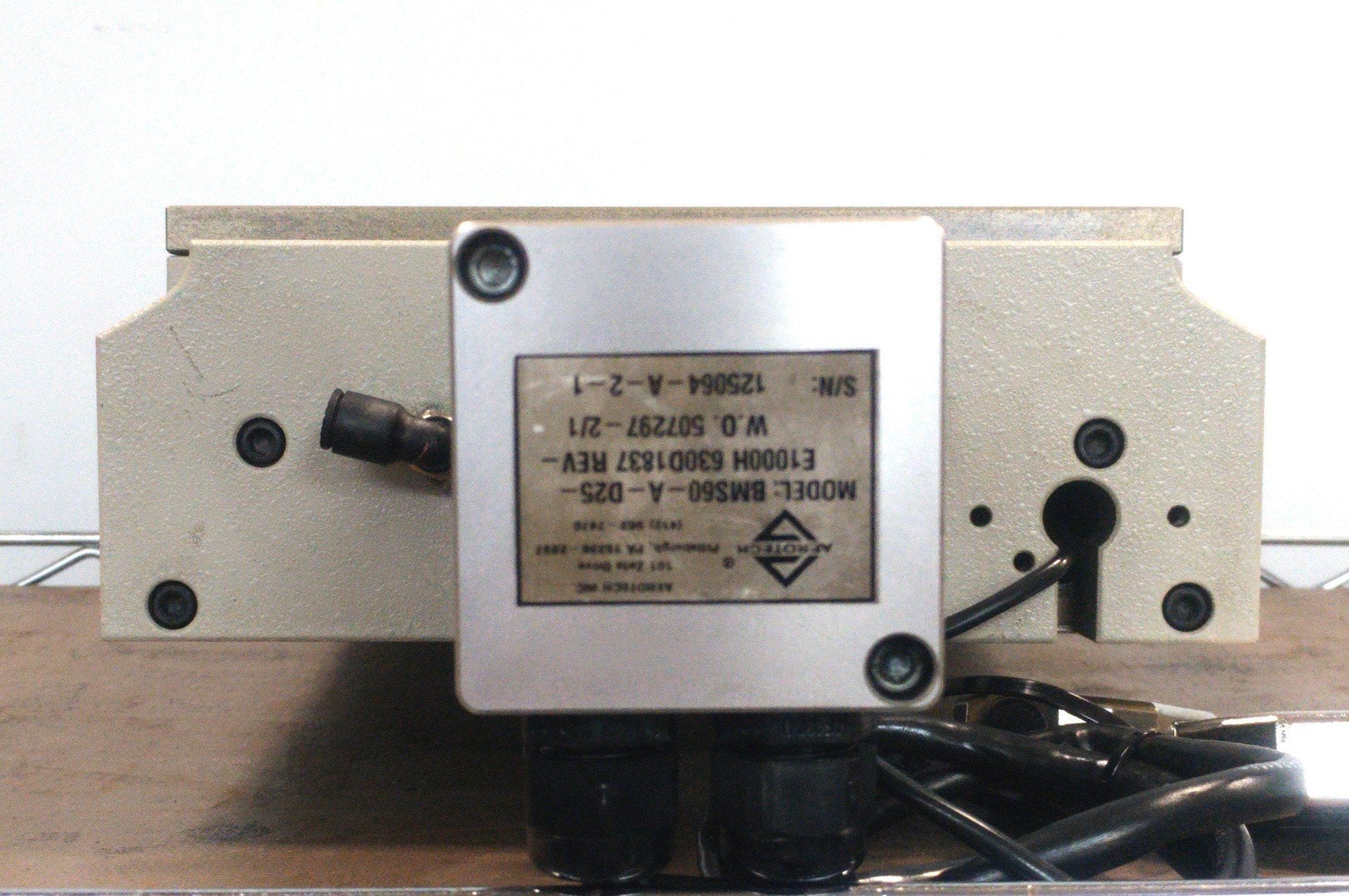

  • Model #: BMS60
  • More Information:
    • Servo Motor
    • Motor Size: NEMA 23
    • Torque:
      • Continuous: 46.2oz-in
      • Peak: 184.9oz-in
    • Speed: 4000RPM

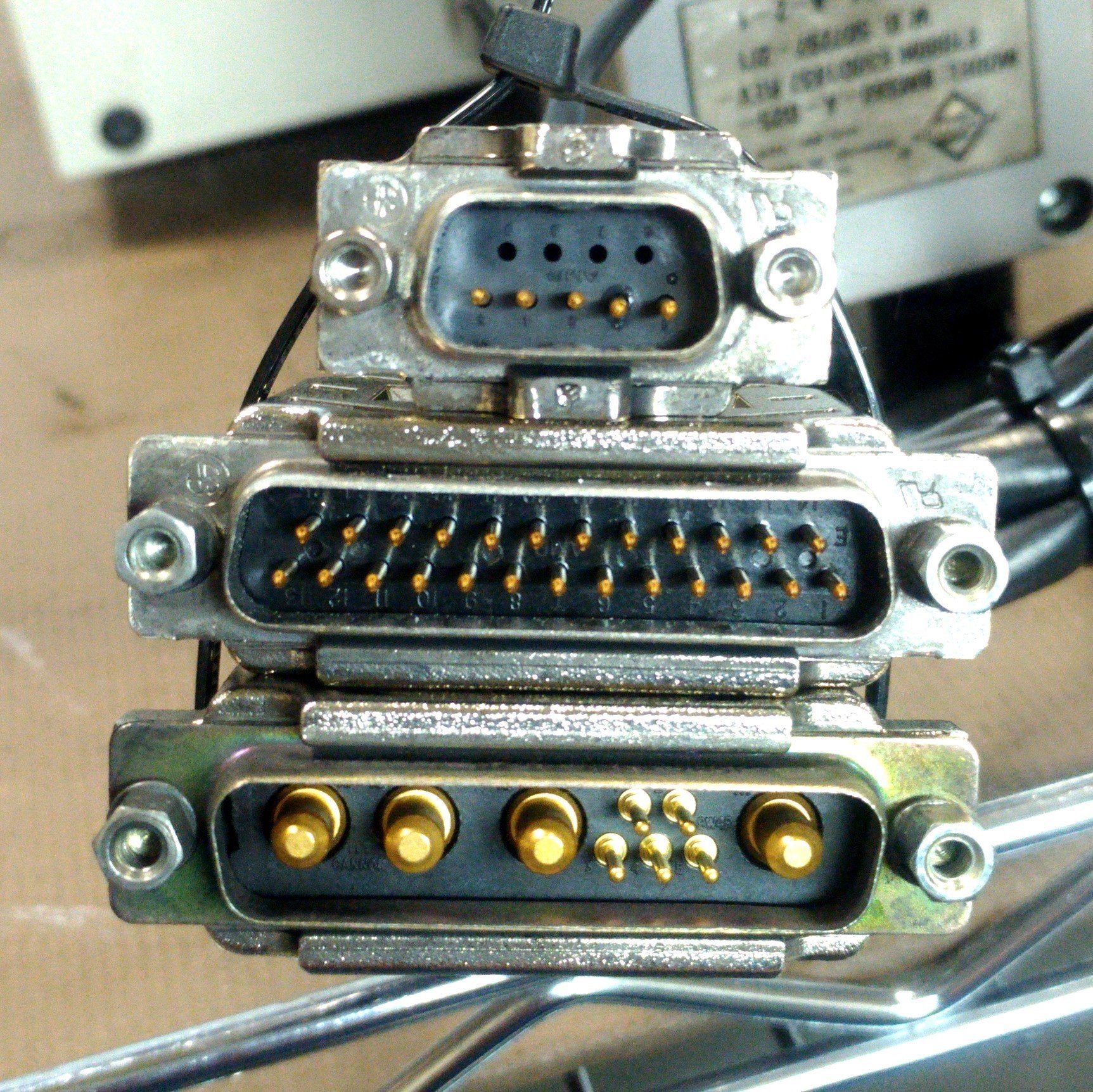

    • Connectors: 9-Pin High Power D-Sub, 25-Pin D-Sub Feedback
    • Current:
      • Continuous: 2.3A
      • Peak: 9.2A
    • Max Bus Voltage: 340VDC
