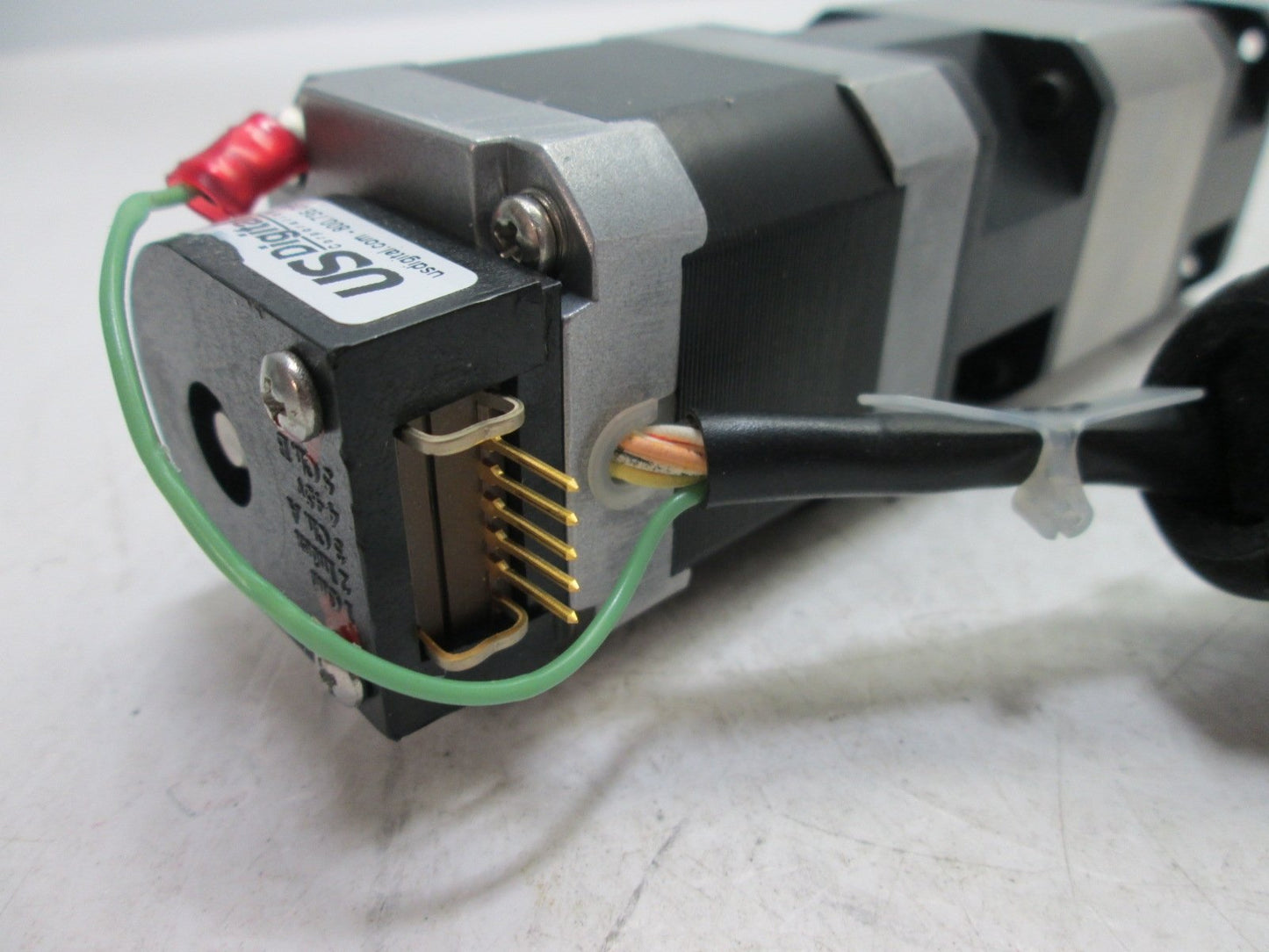

Used Applied Motion HT17-075D-WAA Step Motor With 17PL016 Gearhead, Shaft Dia: 0.5"
$100.00 USD
Shipping calculated at checkout.
Warranty Terms and Conditions
We have 1 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for Applied Motion Products. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-091364
ST67-3-A

From our inventory we are selling a Applied Motion HT17-075D-WAA Step Motor With 17PL016 Gearhead, Shaft Dia: 0.5".

Specifications:

  • Model #: HT17-075D-WAA, 17PL016
  • More Information:
    • Step Motor:
      • Frame Size: NEMA 17
      • Encoder Resolution: 2000 Lines (8000 Counts Quadrature)
      • Number of Lead Wires: 8
      • Unipolar Holding Torque: 44.4 oz-in
      • Bipolar Holding Torque: 62.8 oz-in
      • Step Angle: 1.8 deg
      • Bipolar Series Current: 0.85A/Phase
      • Bipolar Parallel Current: 1.7A/Phase
      • Unipolar Current: 1.2A/Phase
      • Rotor Inertia: 9.63E-04 oz-in-secý
    • Gearhead:
      • Ratio: 16:1
      • Nominal Torque: 169 in-lb
      • Input Speed: 6500 RPM Max
      • Shaft Diameter: 0.5" (12.7mm)
View full details

Used Applied Motion HT17-075D-WAA Step Motor With 17PL016 Gearhead, Shaft Dia: 0.5"

$100.00 USD
