Specifications:

• Model #: TQ10X
• More Information:

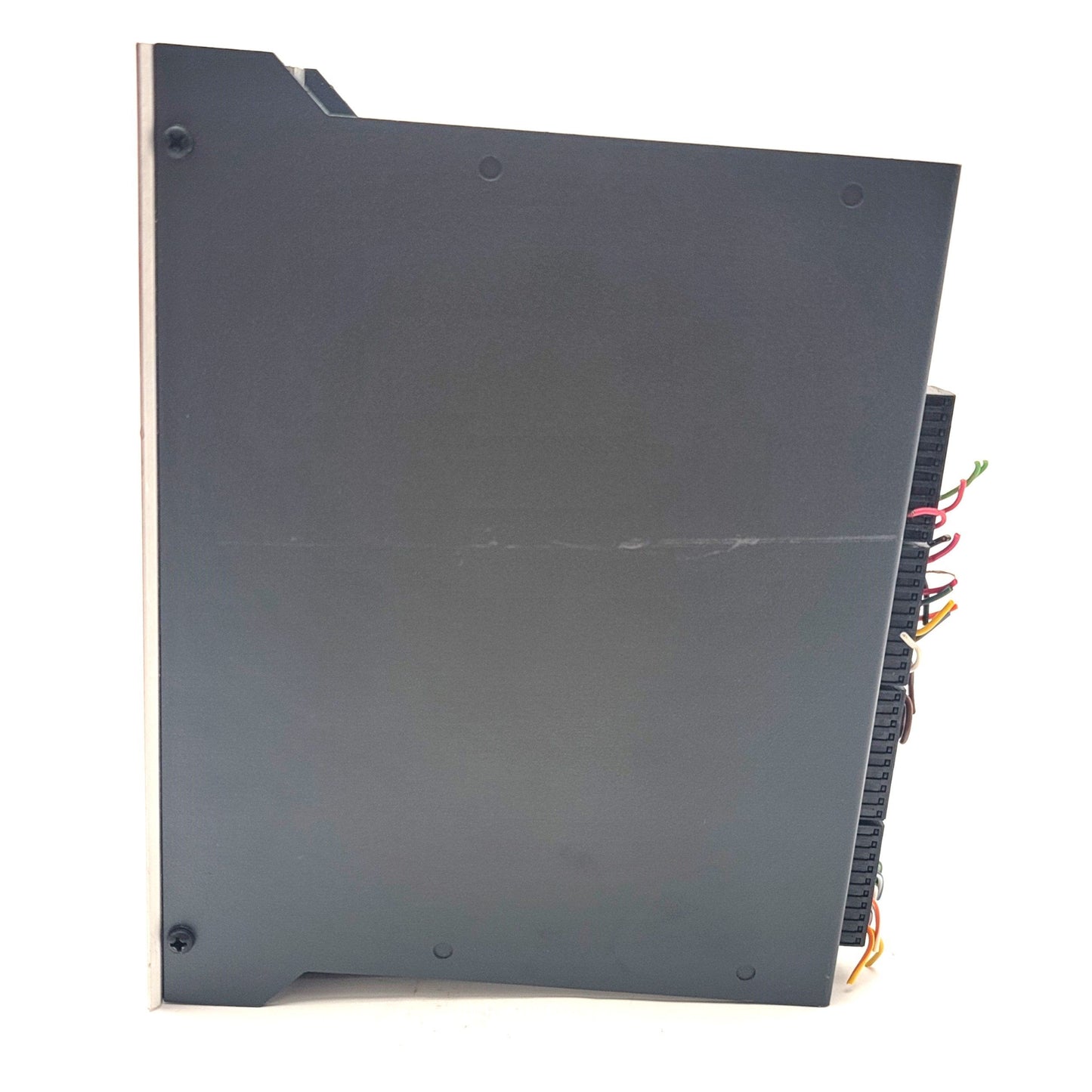

• Compumotor Brushless Servo Driver
• Input Voltage: 95-132VAC 50/60Hz
• Peak Output Current: 10A
• Nominal Output Voltage: 170VAC, 1.1HP
• Peak Output Power: 1.1HP 830W
• Continuous Output Power: 420W
• Inputs:
• Programmable Inputs: 5 user-defined, TTL signal levels: low = 0.8 V; high = 2?5V
• End Of Travel Limits: CW/CCW, 0?5 V, TTL signal levels: low = 0.8 V; high = 2?5V
• RS232C: 3-wire (Rx, Tx, GND) connections, RS485 optional
• Outputs:
• Programmable Outputs: 2 user-defined, TTL signal levels: low = 0.8 V; high = 2?5V
• Fault Output?Isolated: 24 V max voltage; 10 mA max current
• LED Name: Indication
• -Enable (Bicolor) Green = enabled; Red = power on, not enabled
• -Drive temp Red = fault (drive overtemp, etc.)
• -Motor fault Red = fault (short circuit, motor overtemp, etc.)
• -Peak current/Foldback Green = current is near peak (over~75%)
• (Bicolor) Red = in foldback (peak current time exceeded)
• -Regen (Bicolor) Green = regen active; Red = overvoltage fault
