Specifications:

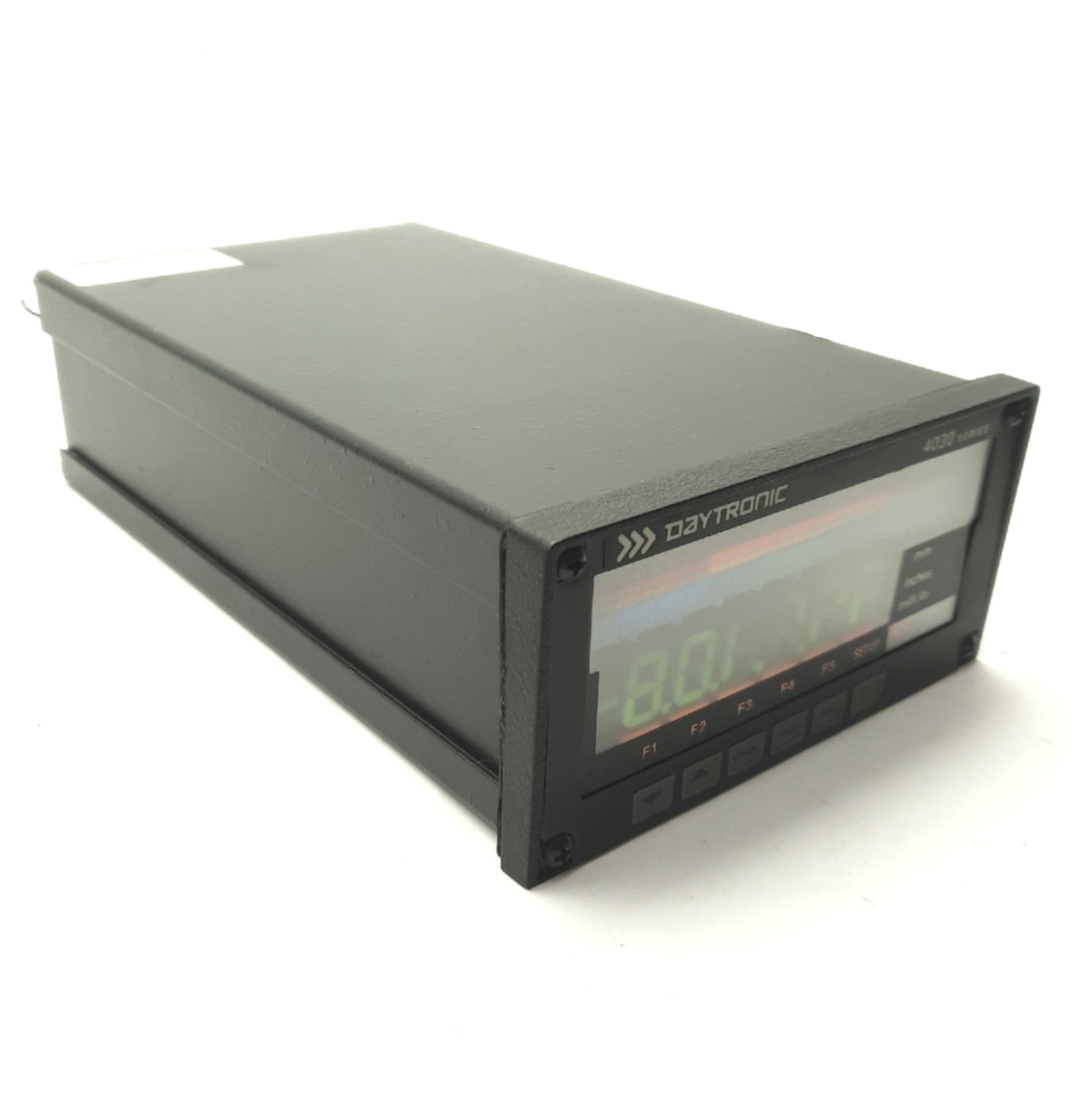

• Model #: 4030
• More Information:

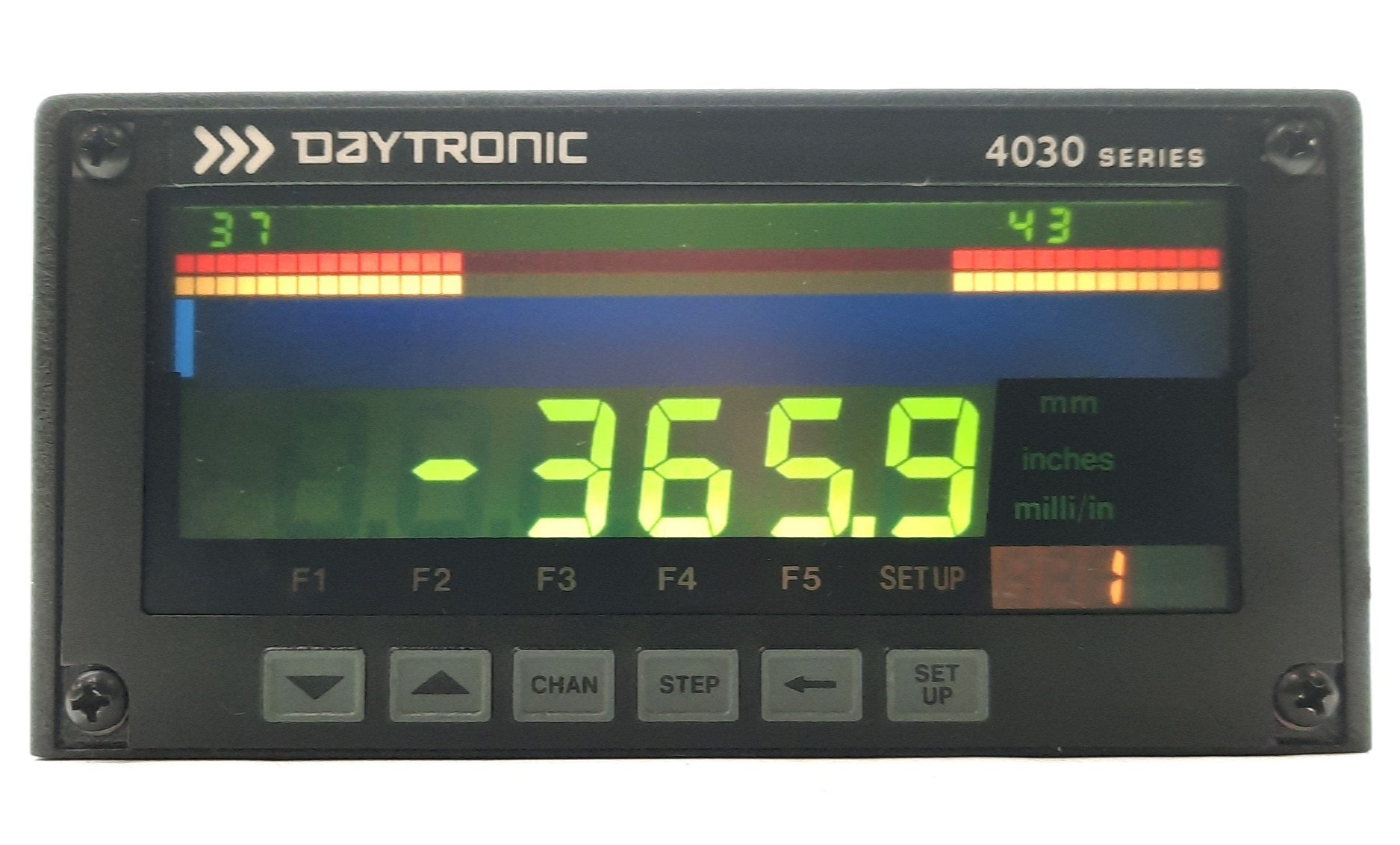

• Panel Meter User Display & Interface
• # of Channels: 1

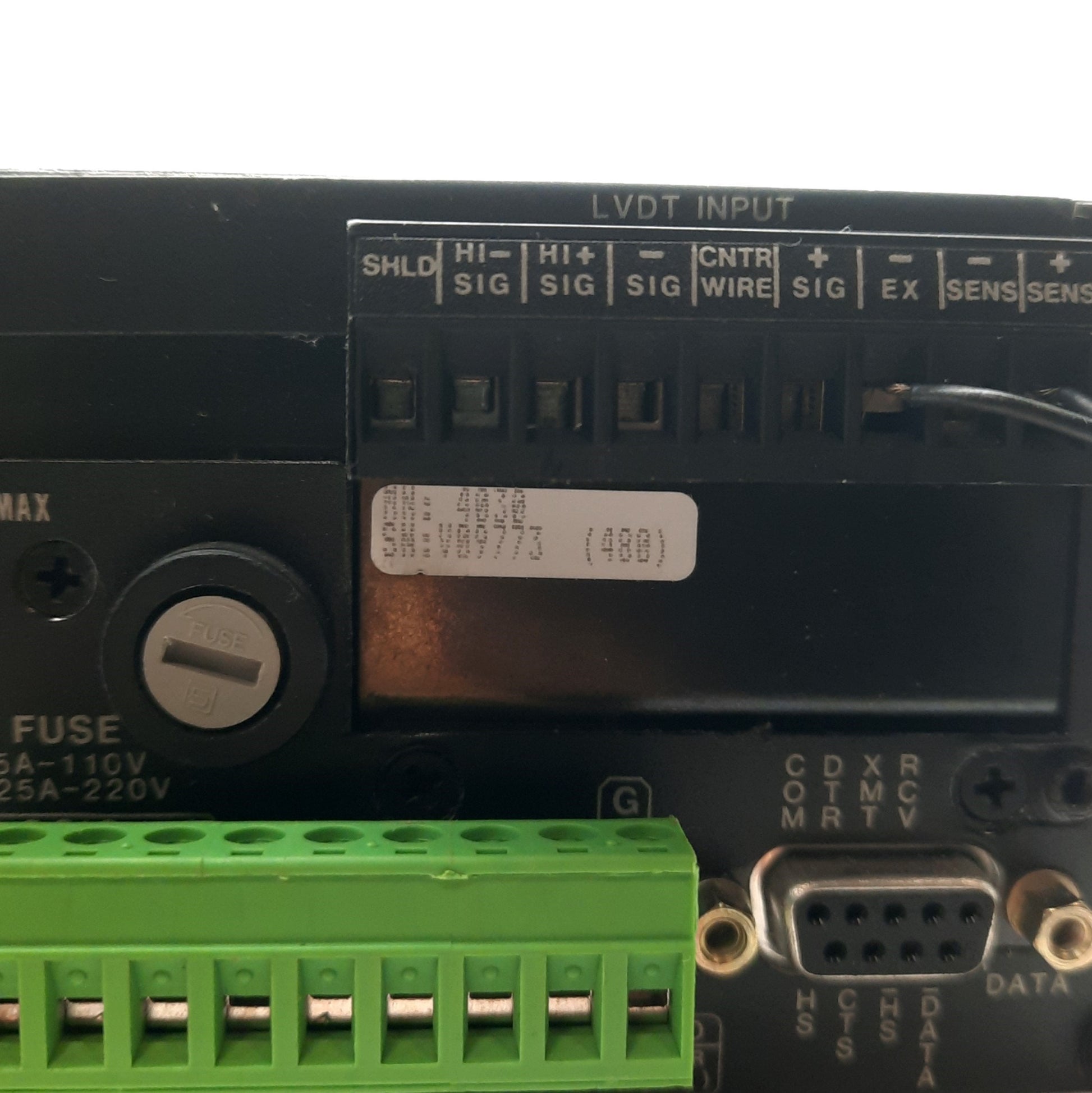

• Transducer Types: 5- or 7-Wire LVDT's Capable of 4000-Hz Operation and Having Primary Impedance of 80 ohms or Greater; 3- or 5-Wire Variable Reluctance Transducers
• Excitation: 3VAC (RMS) at 4000 Hz; 40 mA (RMS), Maximum
• Amplifier:
• Common-Mode Range: ñ5 V operating; ñ12 V without instrument damage.
• Common-Mode Rejection Ratio: infinite at DC and 60 Hz; -60 dB at 3 kHz.
• Input Impedance: Differential: 400 kilohms;
• Common-Mode: 100 kilohms.
• Offset: Initial: ñ3% of full scale; vs. temperature: ñ20 ppm/øC; vs. time: ñ0.01% of full scale / month
• Gain Accuracy: ñ0.02% of full scale, typical, following calibration.*
• Gain Stability: vs. temperature: ñ50 ppm/øC; vs. time: ñ20 ppm/month.
• Filter (per channel): 3-pole modified Butterworth; 3 dB down at 10 Hz; 60 dB down at 100 Hz.
• Step Response Settling Time (Full-Scale Output): To 1% of final value: 130 milliseconds. To 0.1% of final value: 150 milliseconds. To 0.02% of final value: 200 milliseconds.
• Analog Output: ñ10 V, microprocessor driven and scaled, ñ1 mV resolution.
• Accuracy: 0.05% of current voltage reading ñ 2 mV.
• Output Bandwidth: 40 Hz max

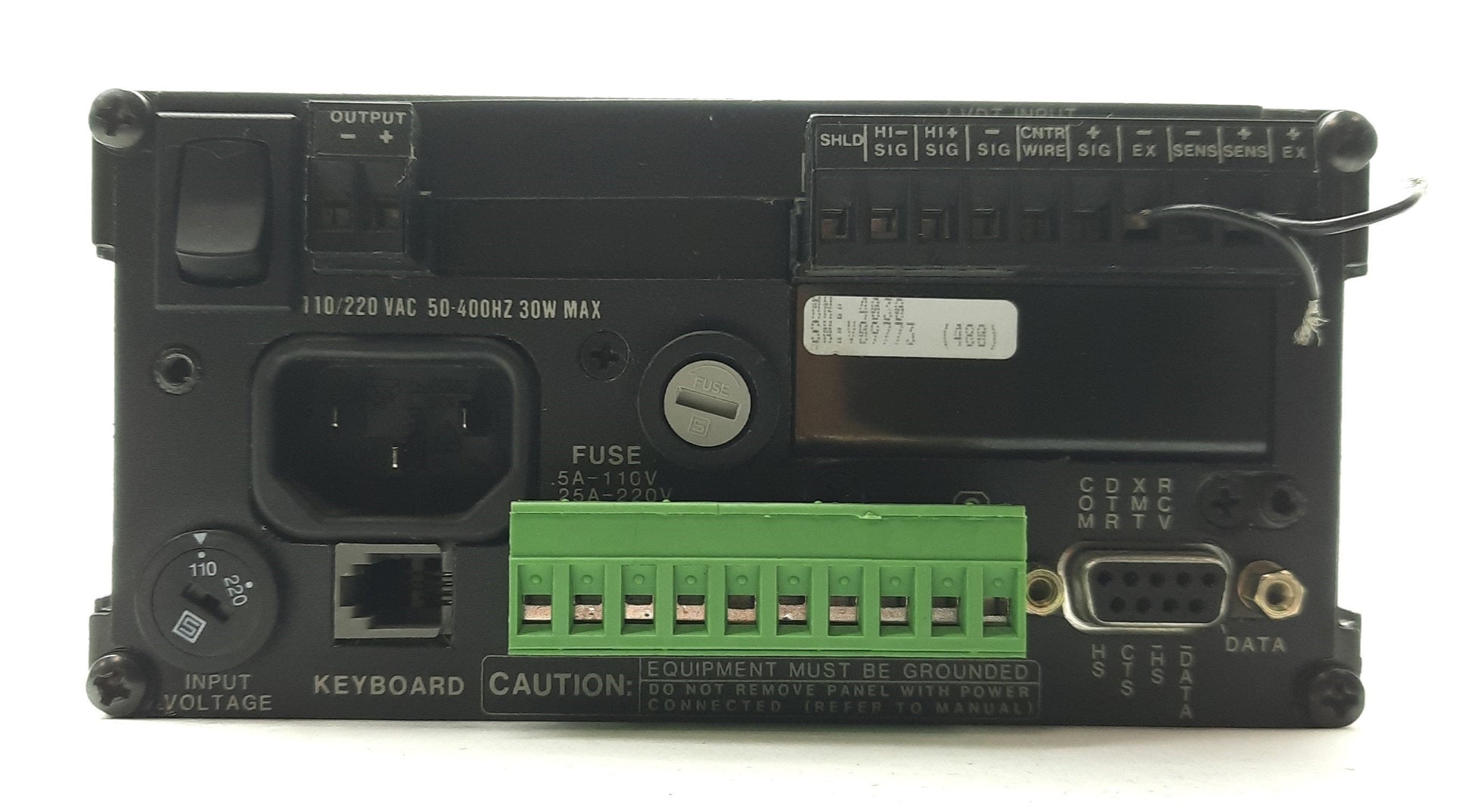

• Communication: RS-232
• Power Requirements: 90-135/180-279VAC 47-63Hz 35W
