  • Used DE-STA-CO DRF-106M-90 Pneumatic Rotary Actuator 90ø 86.5mm Table 1.8kg 40-100PSI
Used DE-STA-CO DRF-106M-90 Pneumatic Rotary Actuator 90ø 86.5mm Table 1.8kg 40-100PSI
$1,225.00 USD
Shipping calculated at checkout.
Warranty Terms and Conditions
We have 4 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for DE-STA-CO. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-173108
RT-3-B

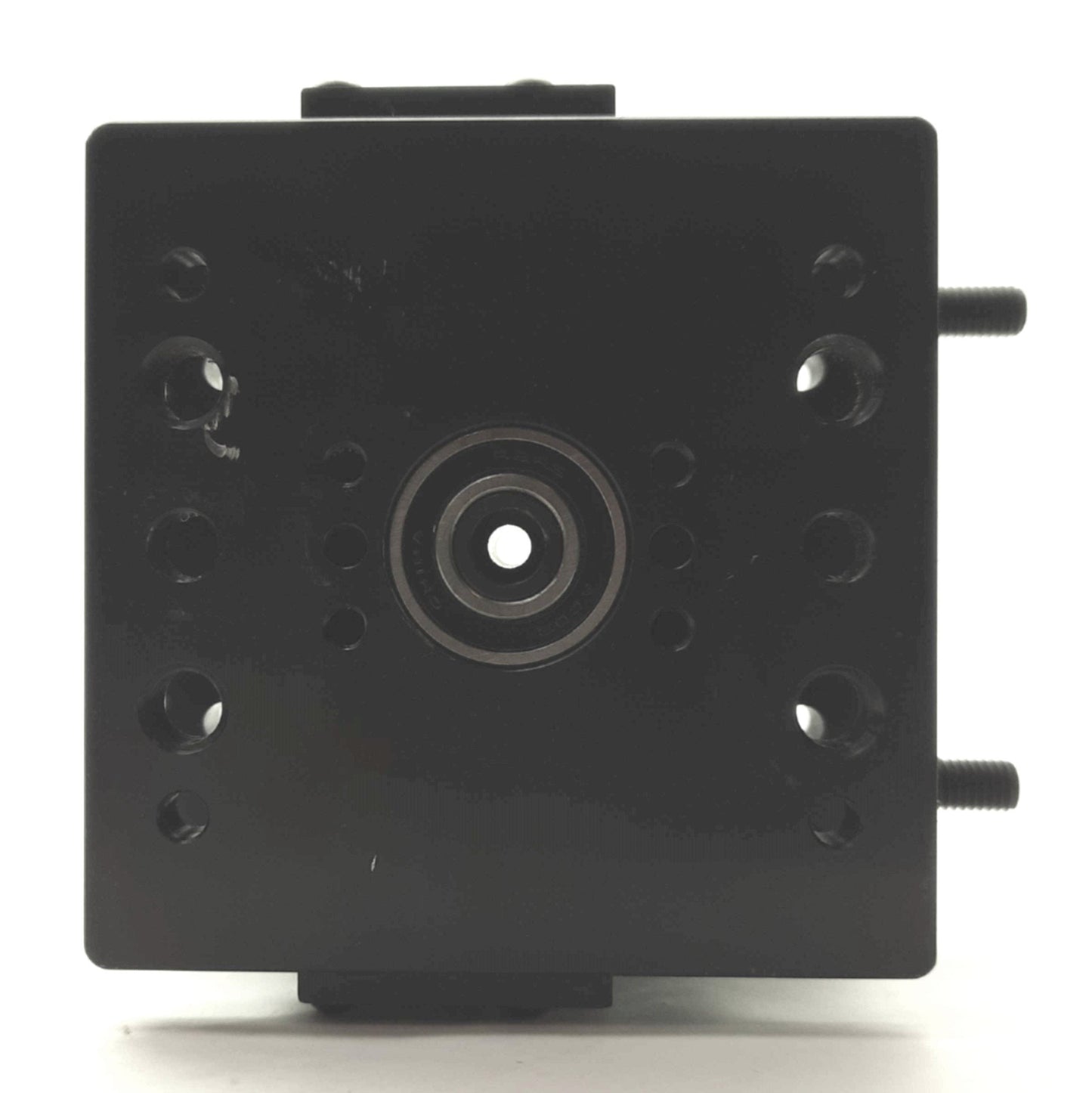

 From our inventory we are selling a DE-STA-CO DRF-106M-90 Pneumatic Rotary Actuator 90ø 86.5mm Table 1.8kg 40-100PSI.

Specifications:

  • Model #: DRF-106M-90
  • More Information:
    • Pneumatic Rotary Actuator
    • Maximum Payload: 4lbs (1.8kg)
    • Turntable Size: 86.5mm
    • Table Thread: M5
    • Maximum Payload Inertia: 0.0207 in-lbs secý (2.3 x 10?)
    • Maximum Torque @ 100PSI/7 bar: 33.2lbs-in (3.8NM)
    • Maximum Rotation: 90ø
    • Pitch Diameter of Pinion: 0.750" (19.1mm)
    • Pressure Range: 40-100psi (3-7bar)
    • Port Size: 2x M5
    • Ingress Protection: IP54
    • Displacement (180ø): 1.16in? (19cm?)
    • Actuation Time 180ø@100psi: 0.6sec
    • Actuation Time 90ø@100psi: 0.45sec
    • Color: Anodized Black
    • Dimensions: 125 x 115 x 58mm

Item Specifics & Seller Notes:
Anodization color/finish may differ from the pictured example. They are functionally identical.
