Specifications:

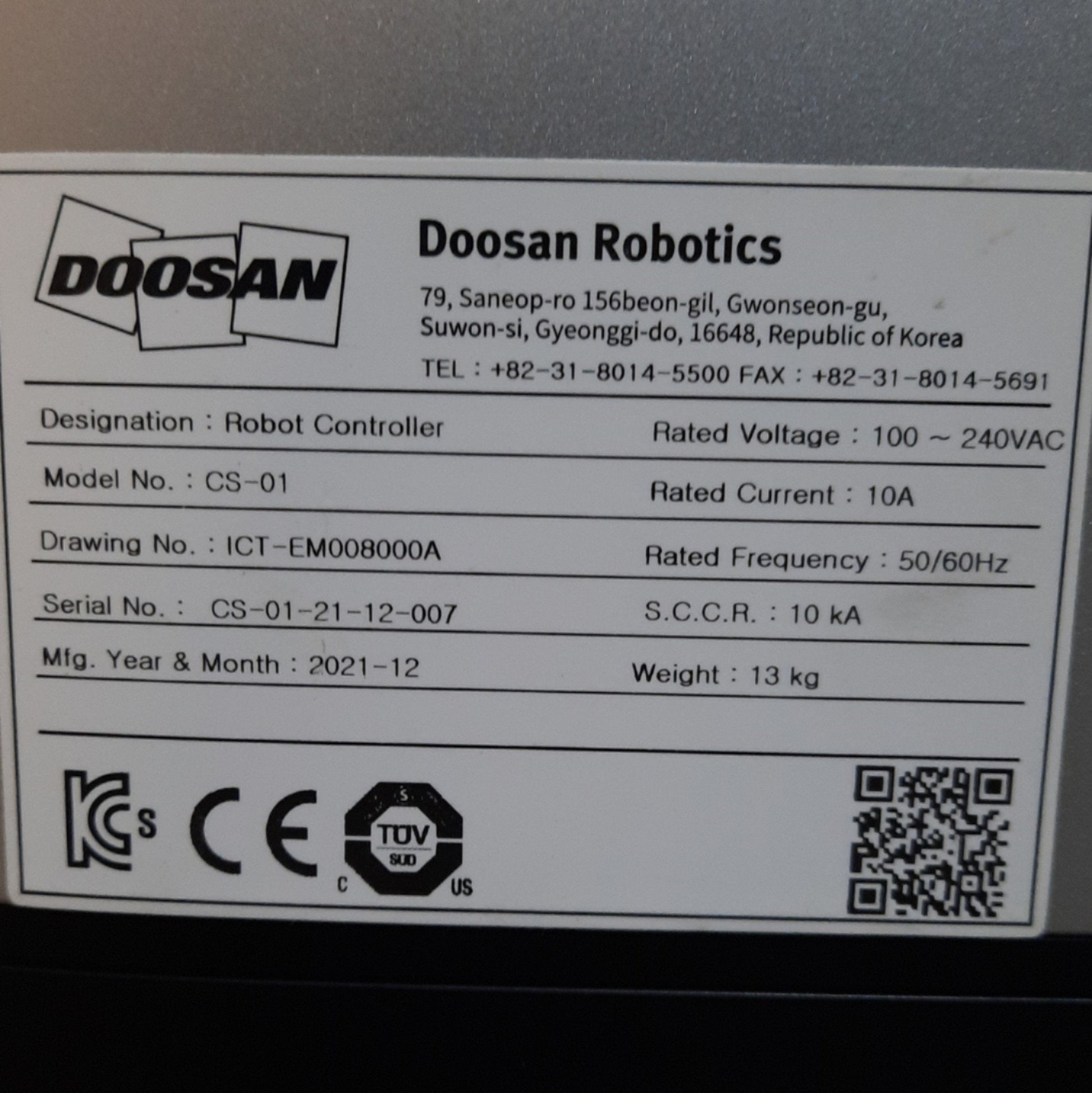

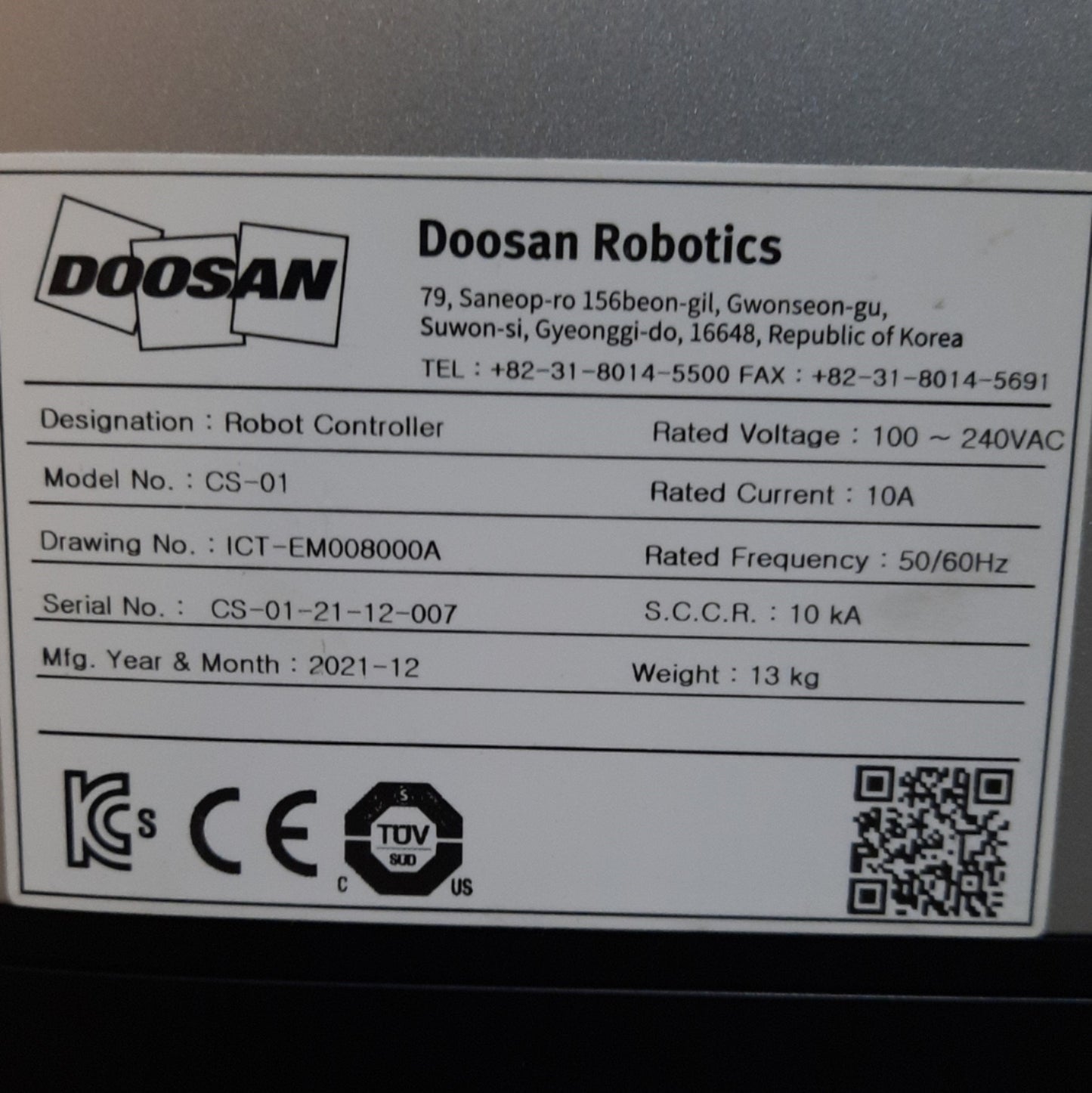

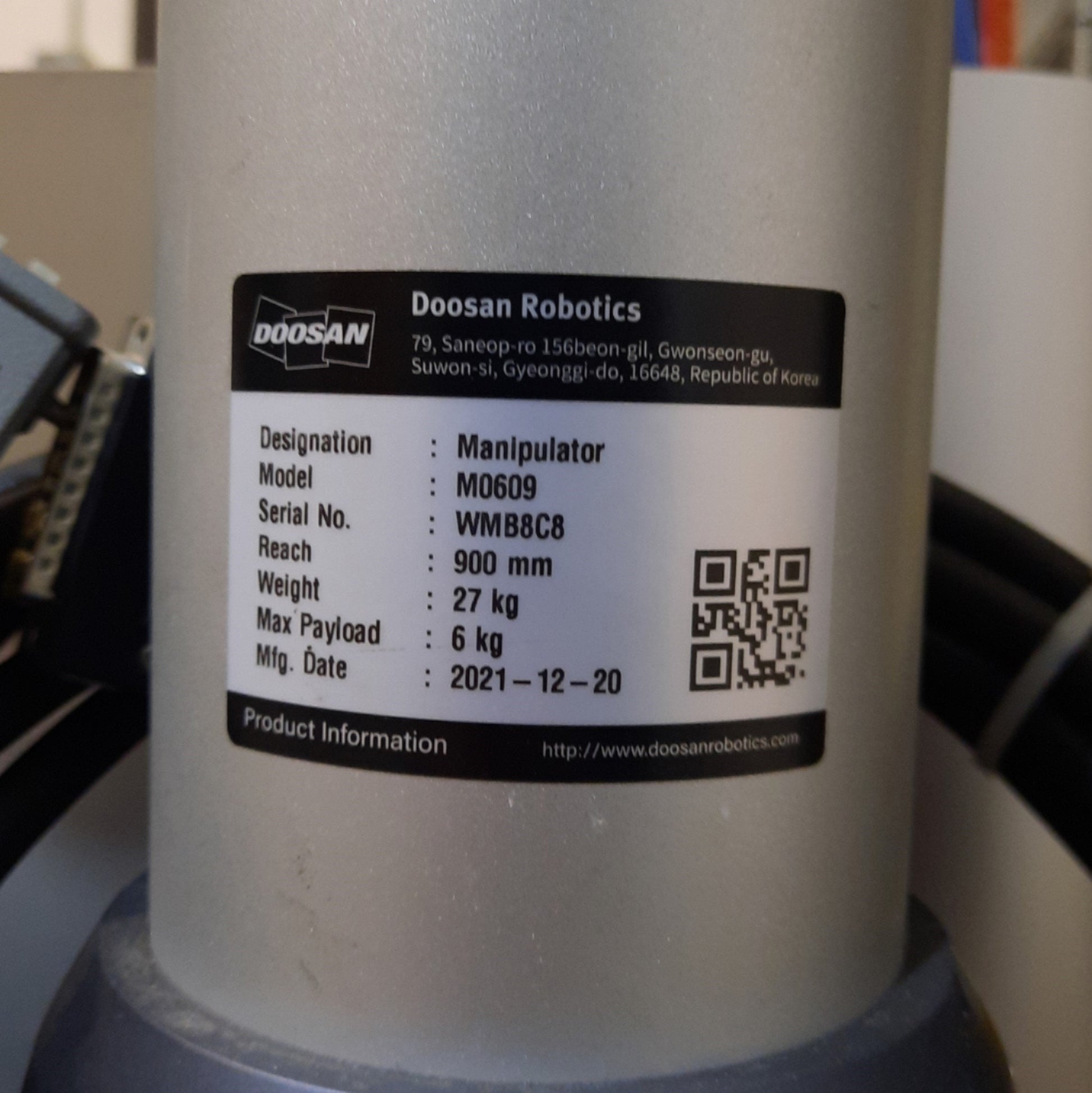

• Model #: M0609, CS-01
• More Information:

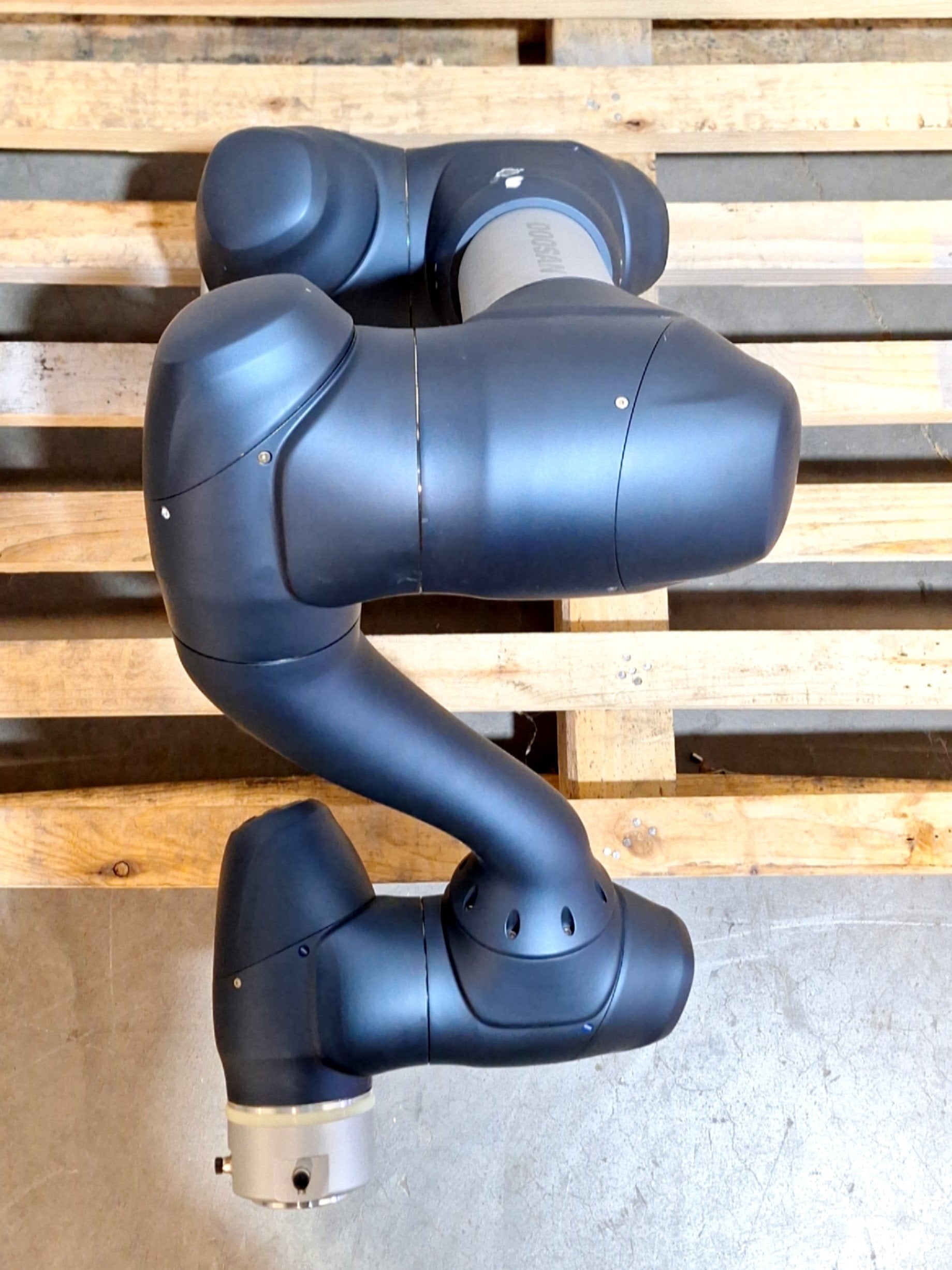

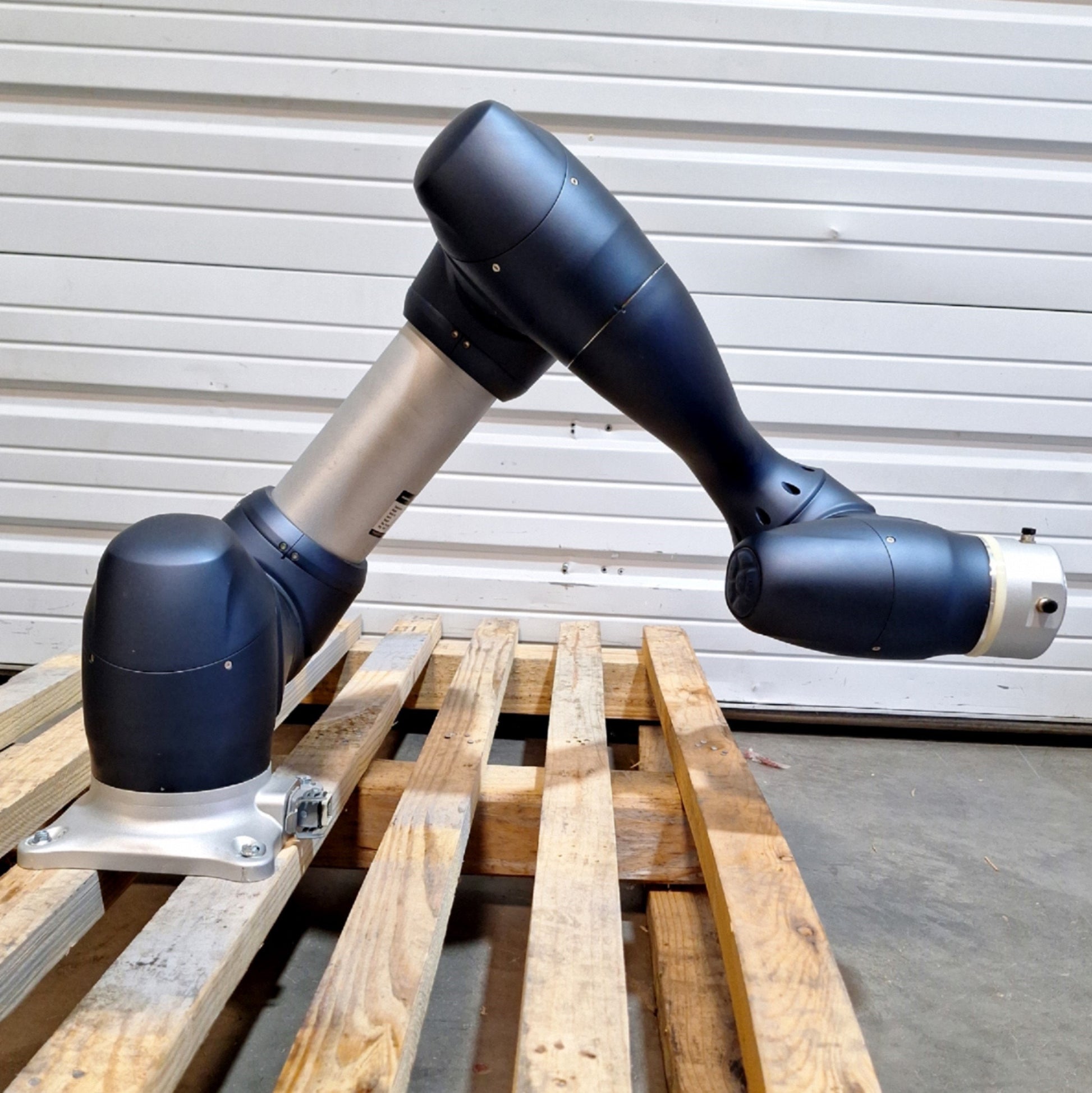

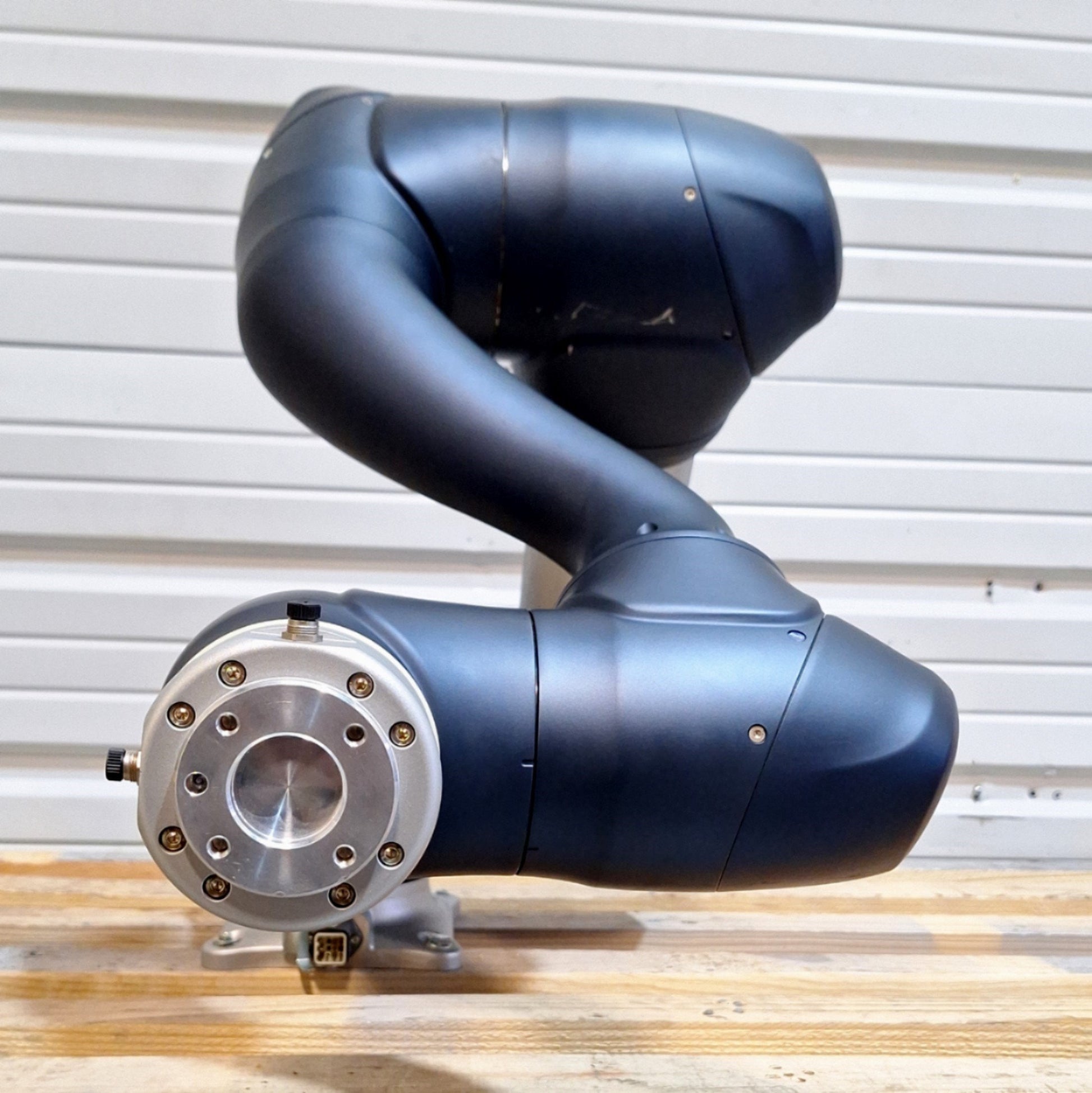

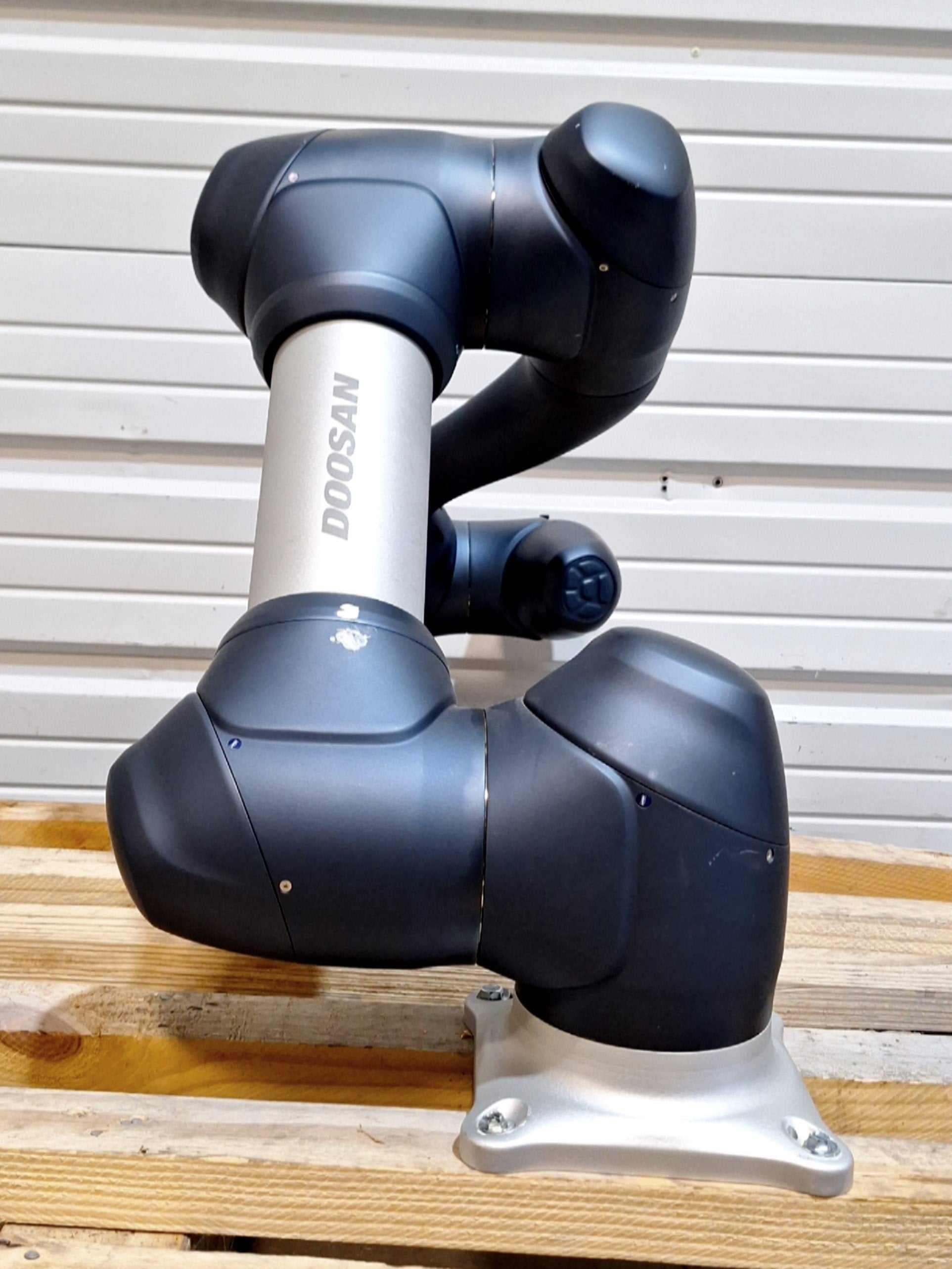

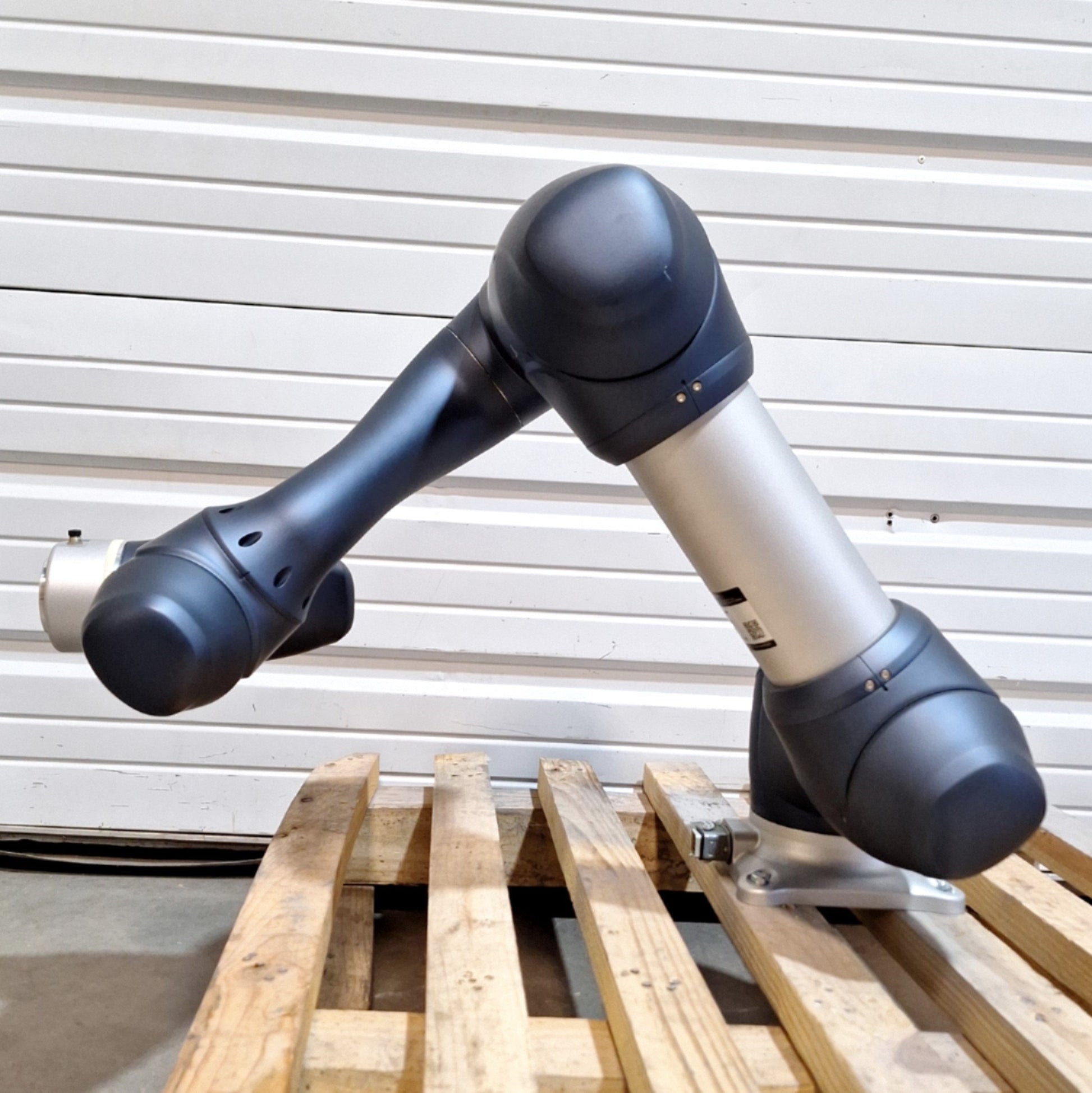

  • Cobot Robot System

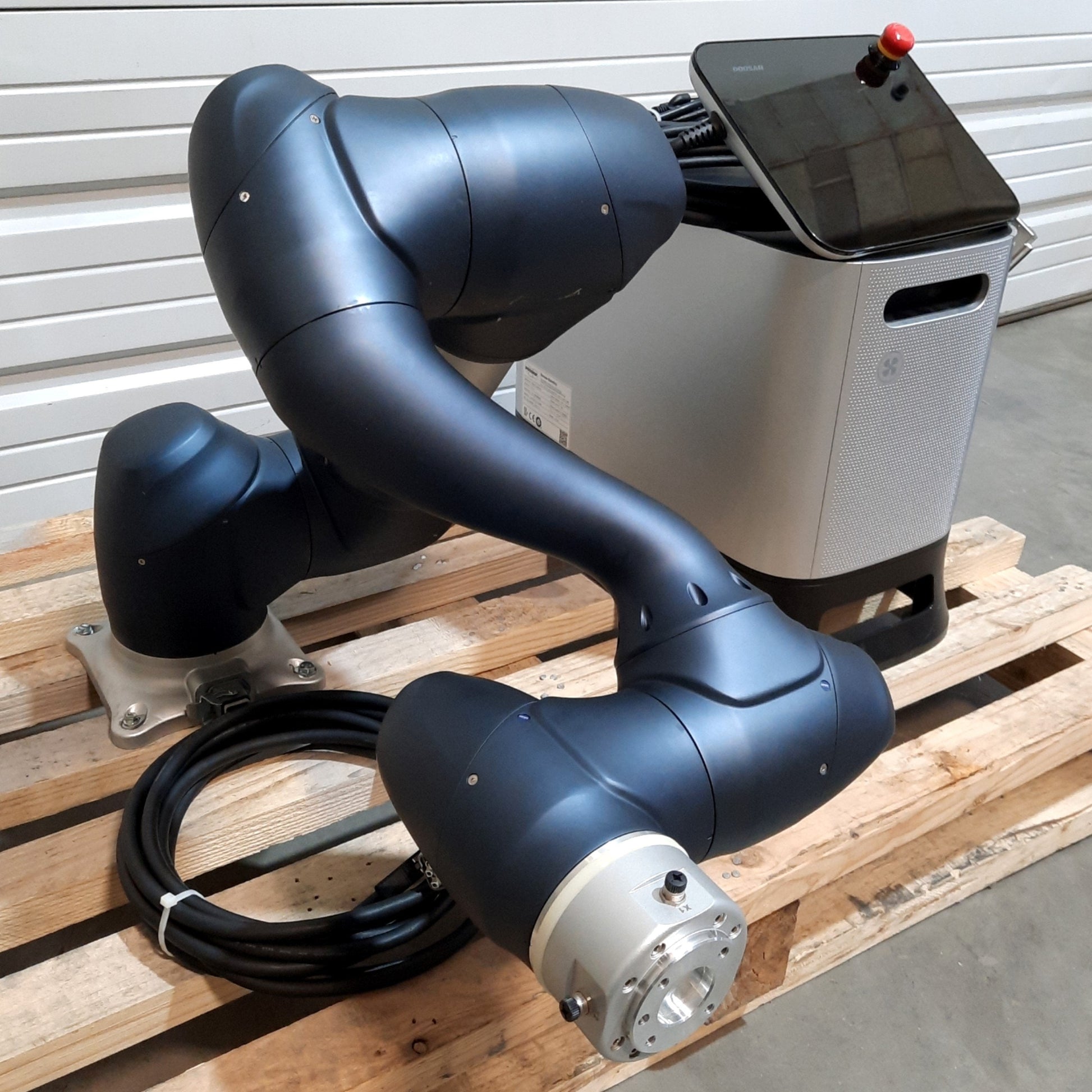

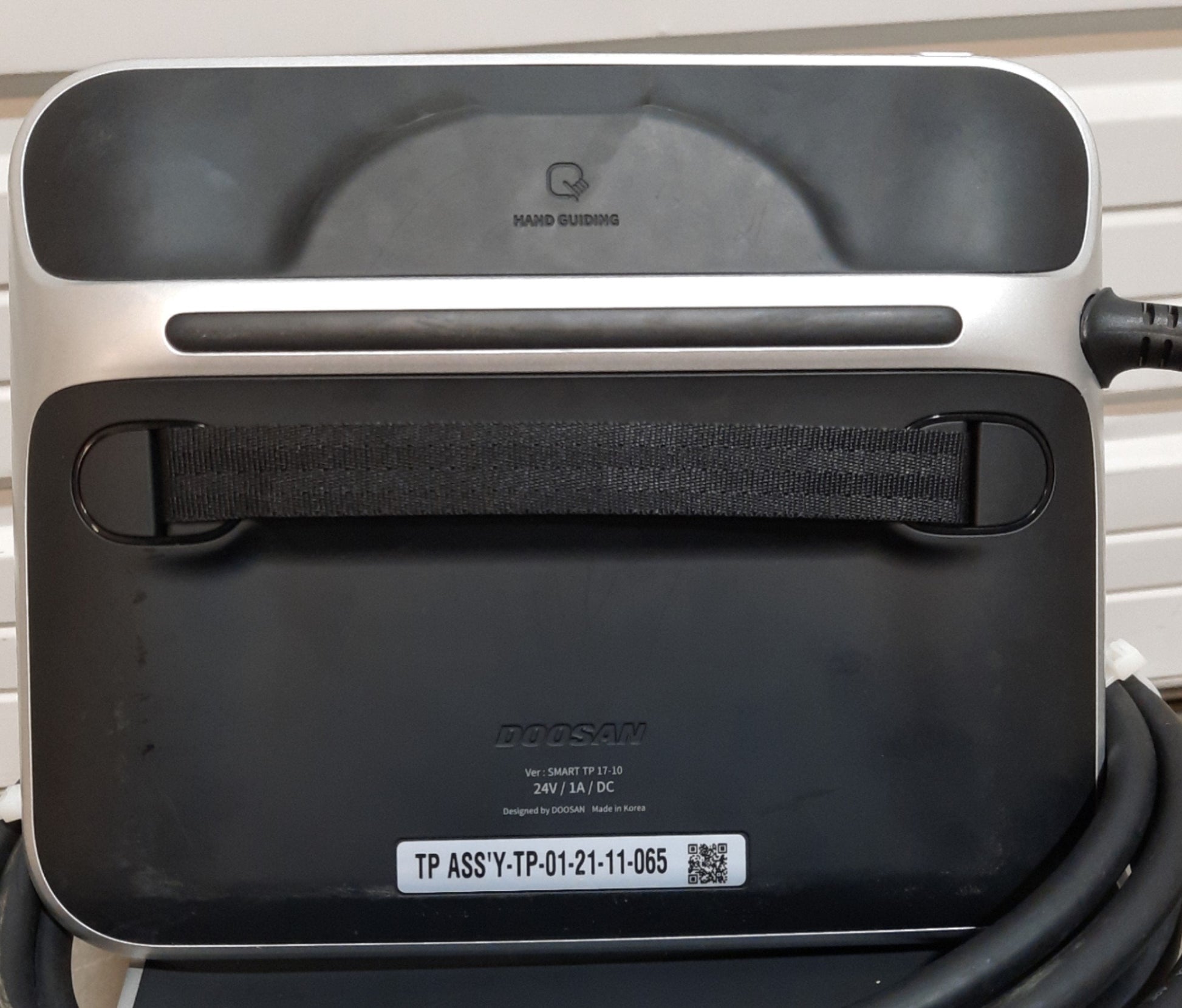

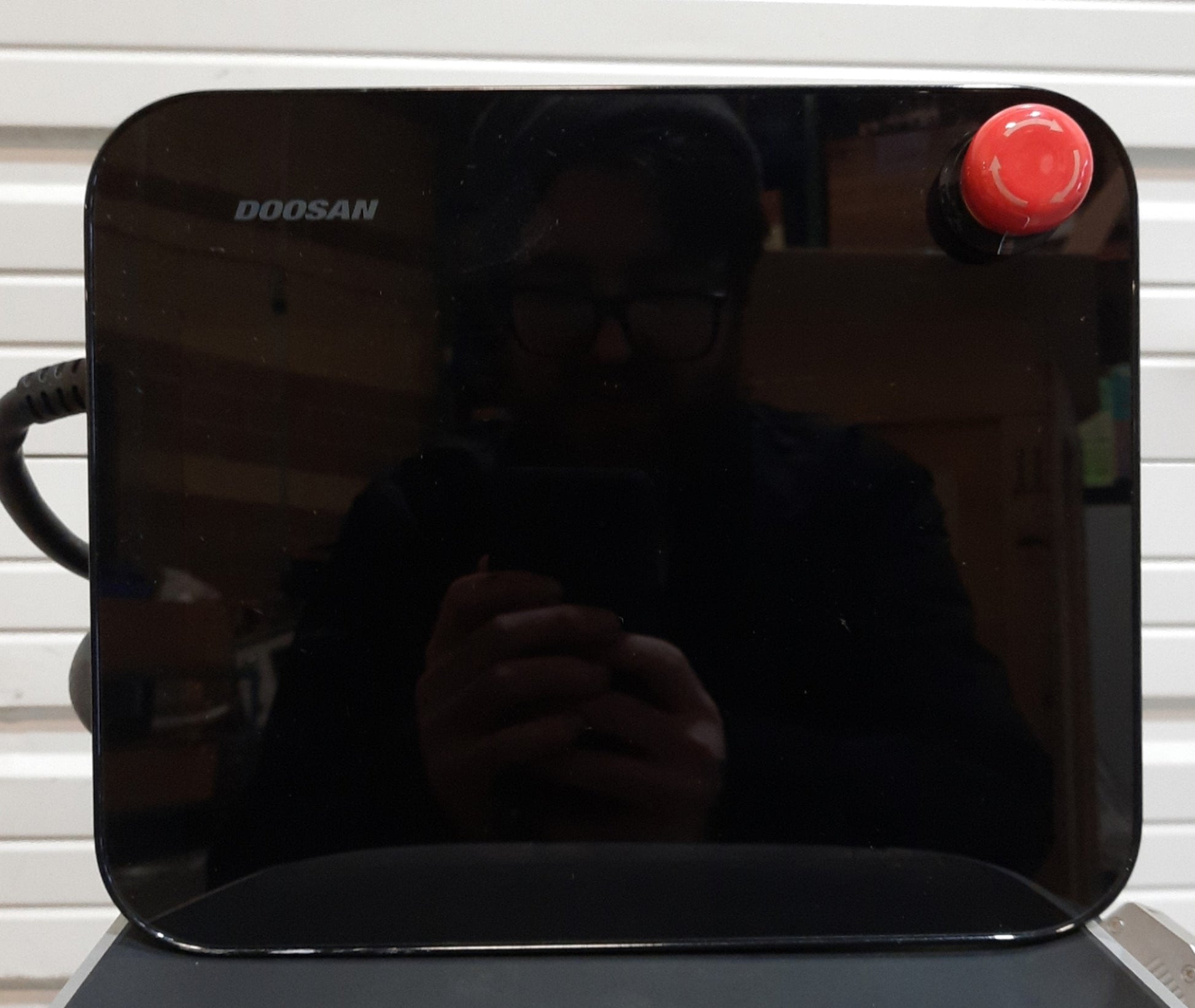

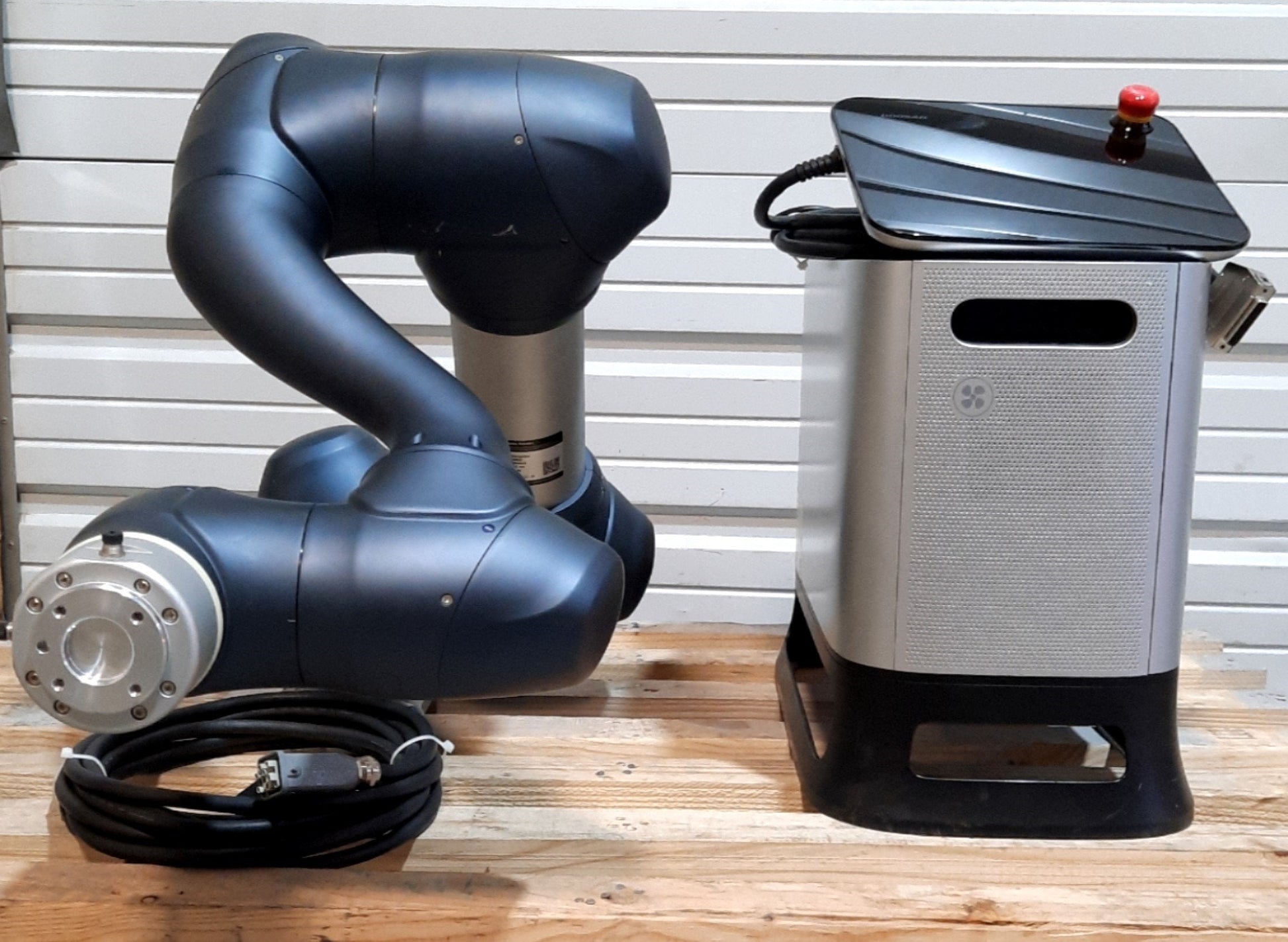

  • Includes: Cobot, Controller, Pendant, Robot Cable, Power Cable
  • Load: 6kg
  • Reach: 900mm
  • Tool Speed: 1m/s
  • Repeatability: ±0.05mm
  • Movement:

    Joint	Range	Speed
    1	-360-360°	±150
    2	-360-360°	±150
    3	-150-150°	±180
    4	-360-360°	±225
    5	-360-360°	±225
    6	-360-360°	±225

  • I/O:
    • Robot:
      • Digital: 6/6
      • Power Supply: 24VDC

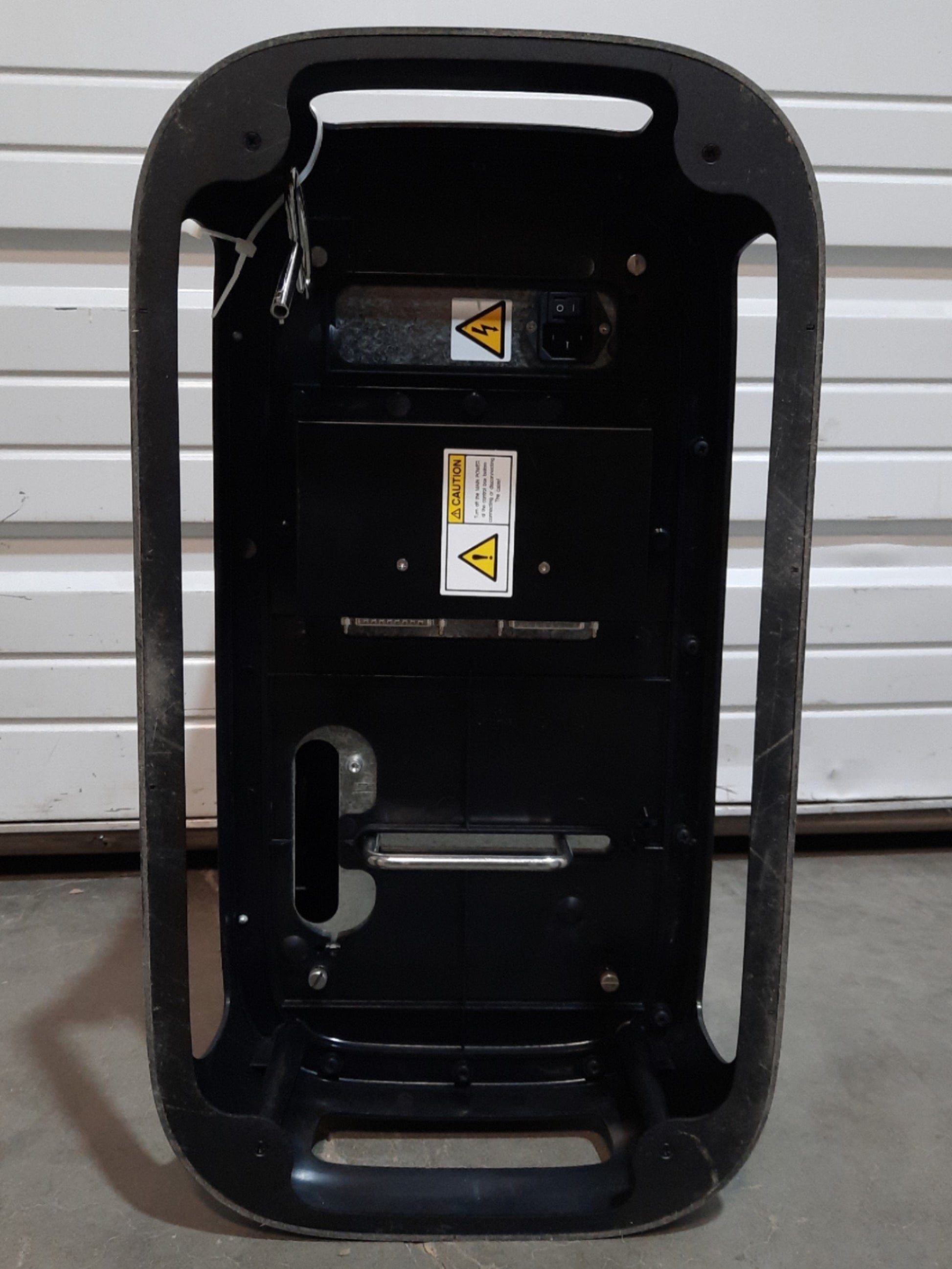

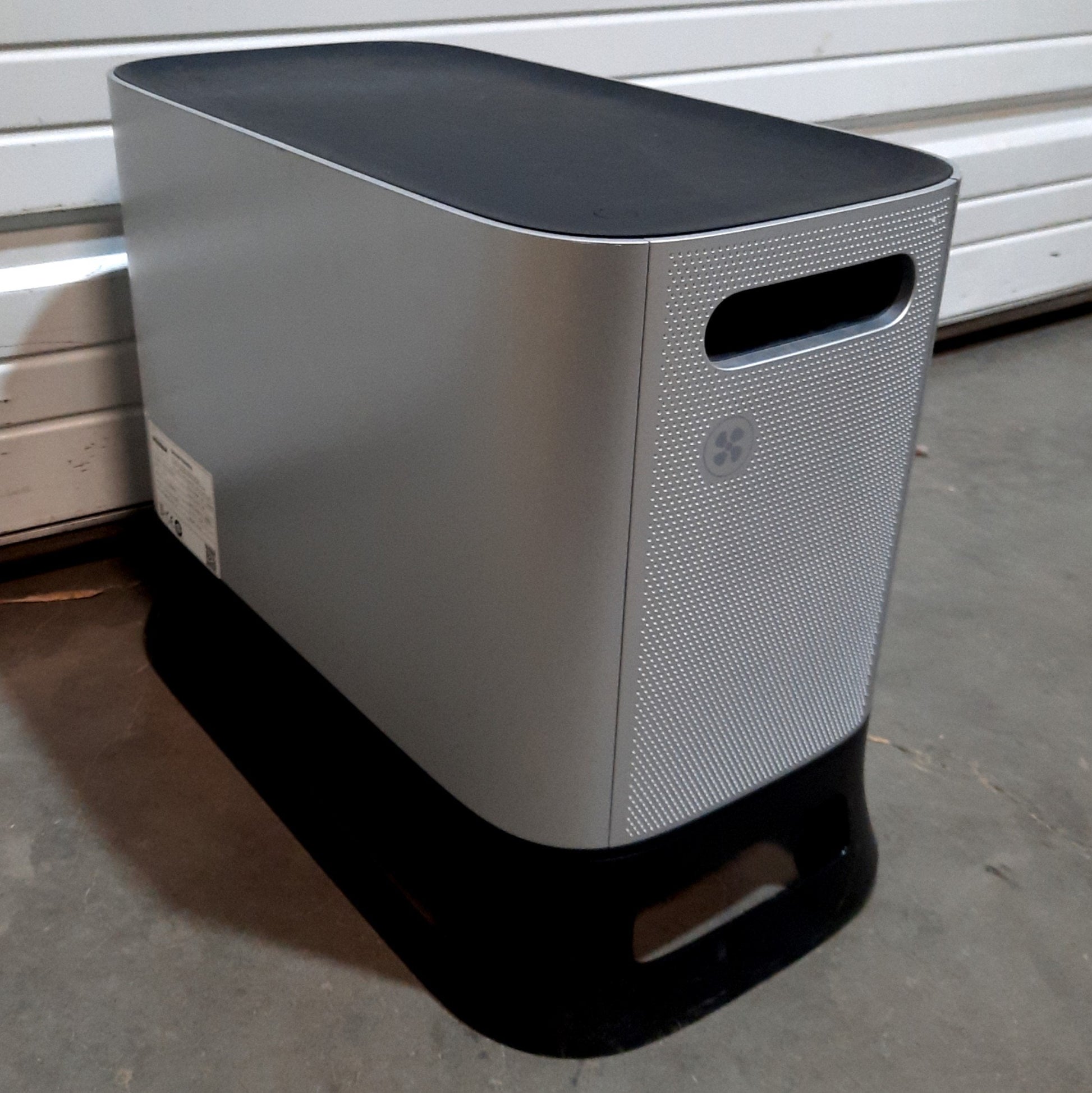

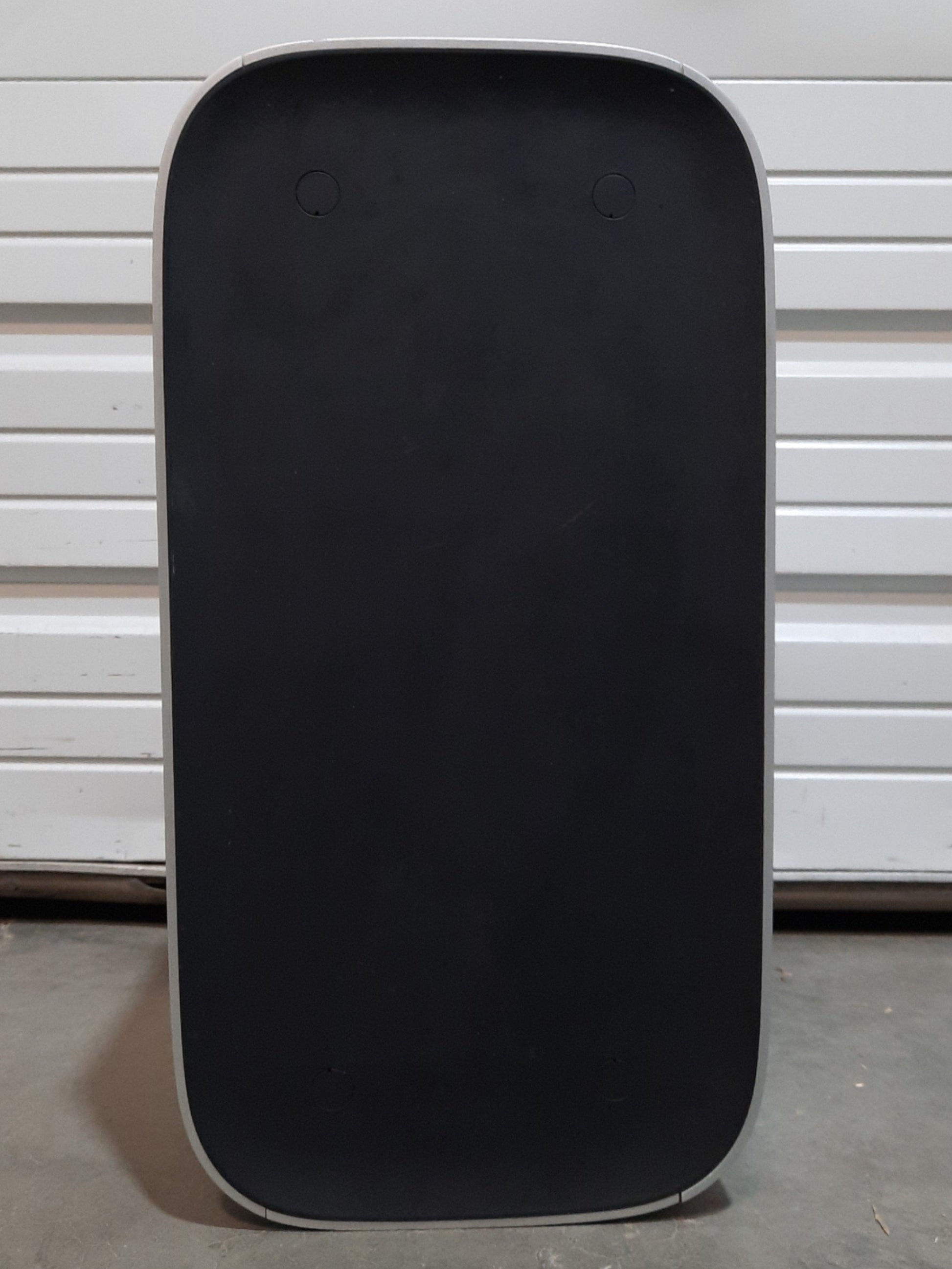

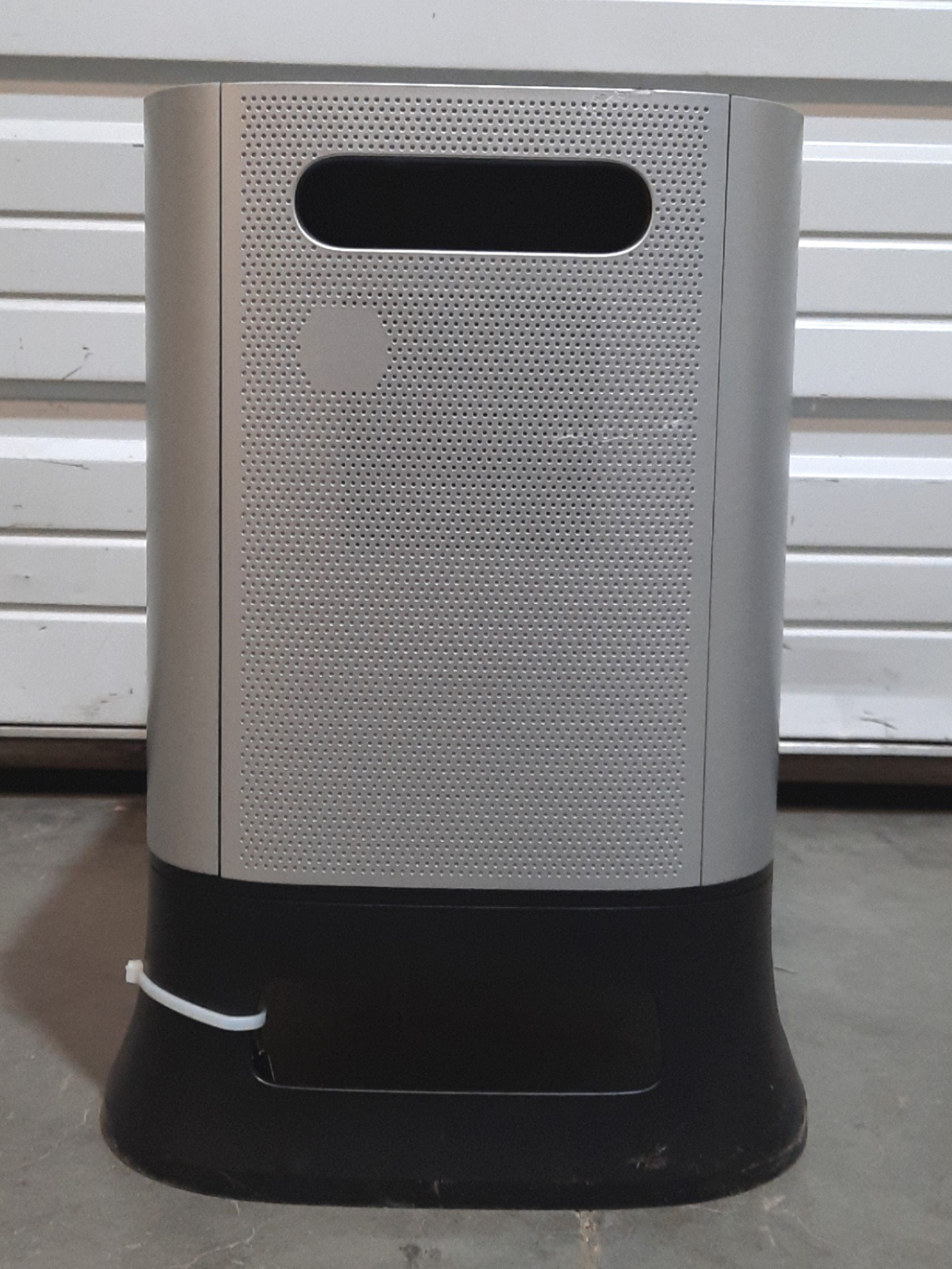

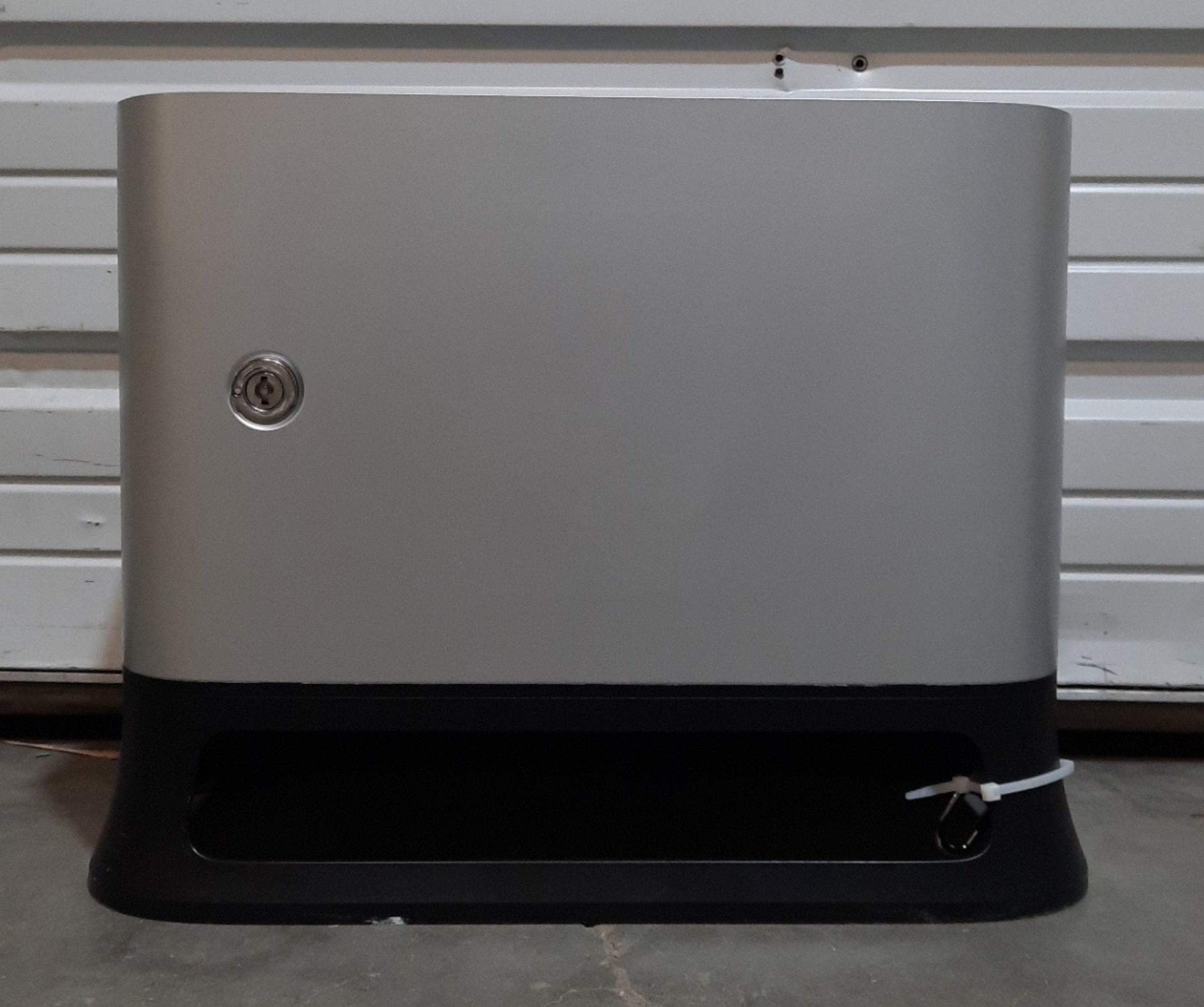

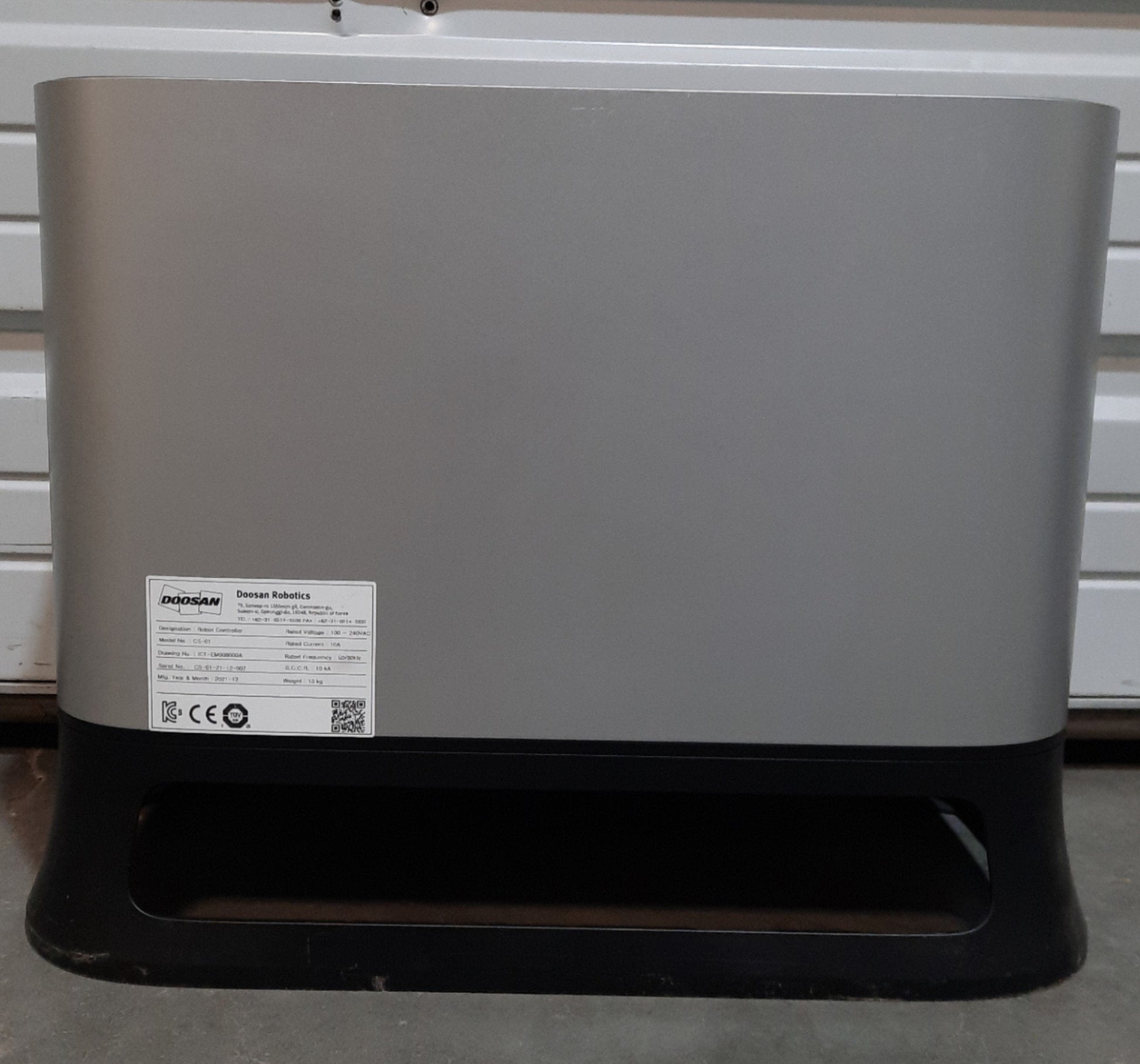

    • Controller
      • Digital: 16/16
      • Analog: 2/2
      • Power Supply: 24VDC
  • Communication:
    • Interfaces: Serial (RS232), USB 3.0 (RS422/485)
    • Industrial Network: TCP/IP, Modbus-TVP (Master/Slave), Modbus-RTU (Master), EtherNet/IP (Adapter), PROFINET IO (Device)
  • Power Requirements: 100-240VAC 50-60Hz

This item will be shipped freight. Freight shipping cost is included to a location with a truck height loading dock and full size semi truck and trailer access. Full size truck access and forklift is acceptable. Deliveries to limited access/residential and/or requiring a liftgate will be subject to additional fees. Please contact us for additional information and quotes.
