Used OptoSigma OSMS-60YAW Stepper Driven Rotary Stage ⌀60mm 3kg 30°/sec 0.1° Backlash

$625.00 USD

Shipping calculated at checkout.

Warranty Terms and Conditions

We have 2 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for OptoSigma. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: New – Open box
SKU: SB-196031
ST53-1-B

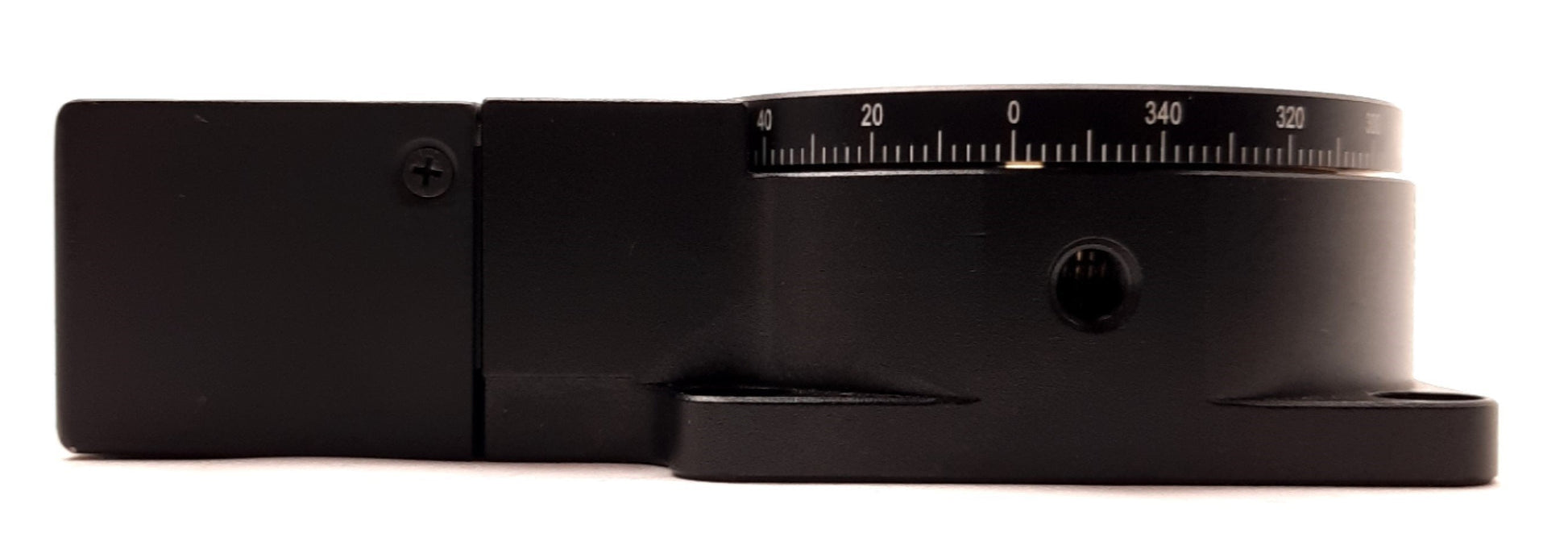

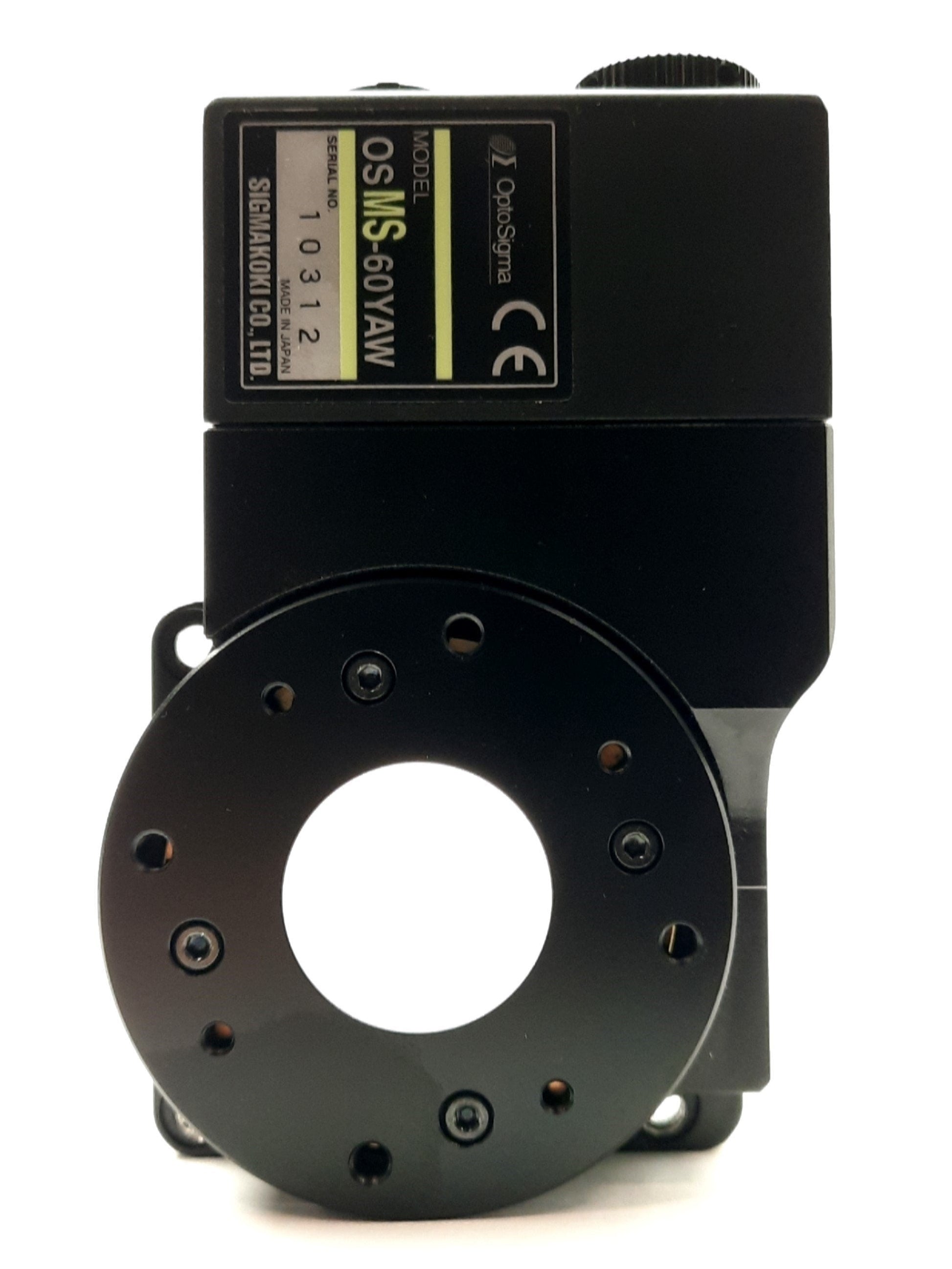

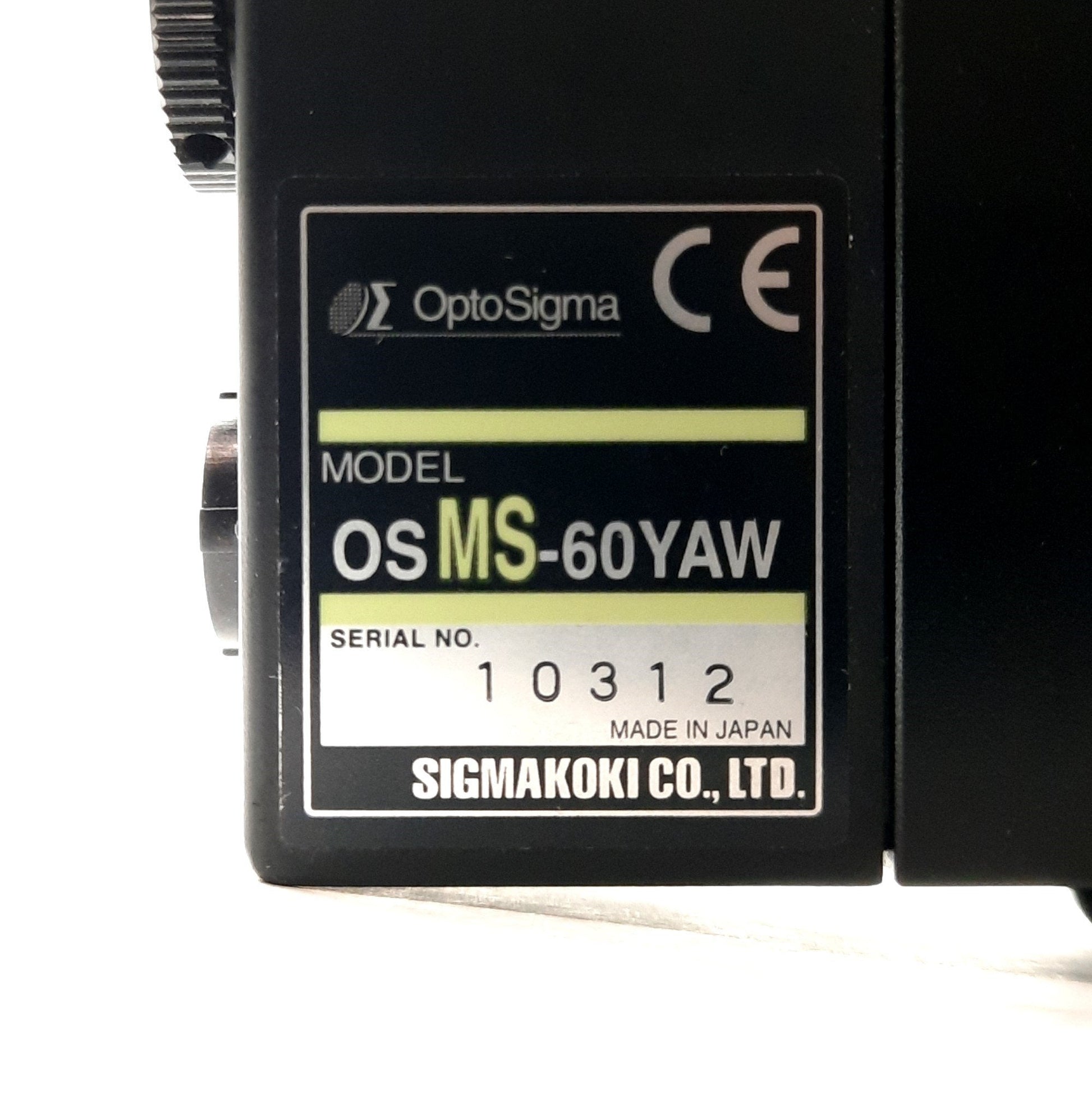

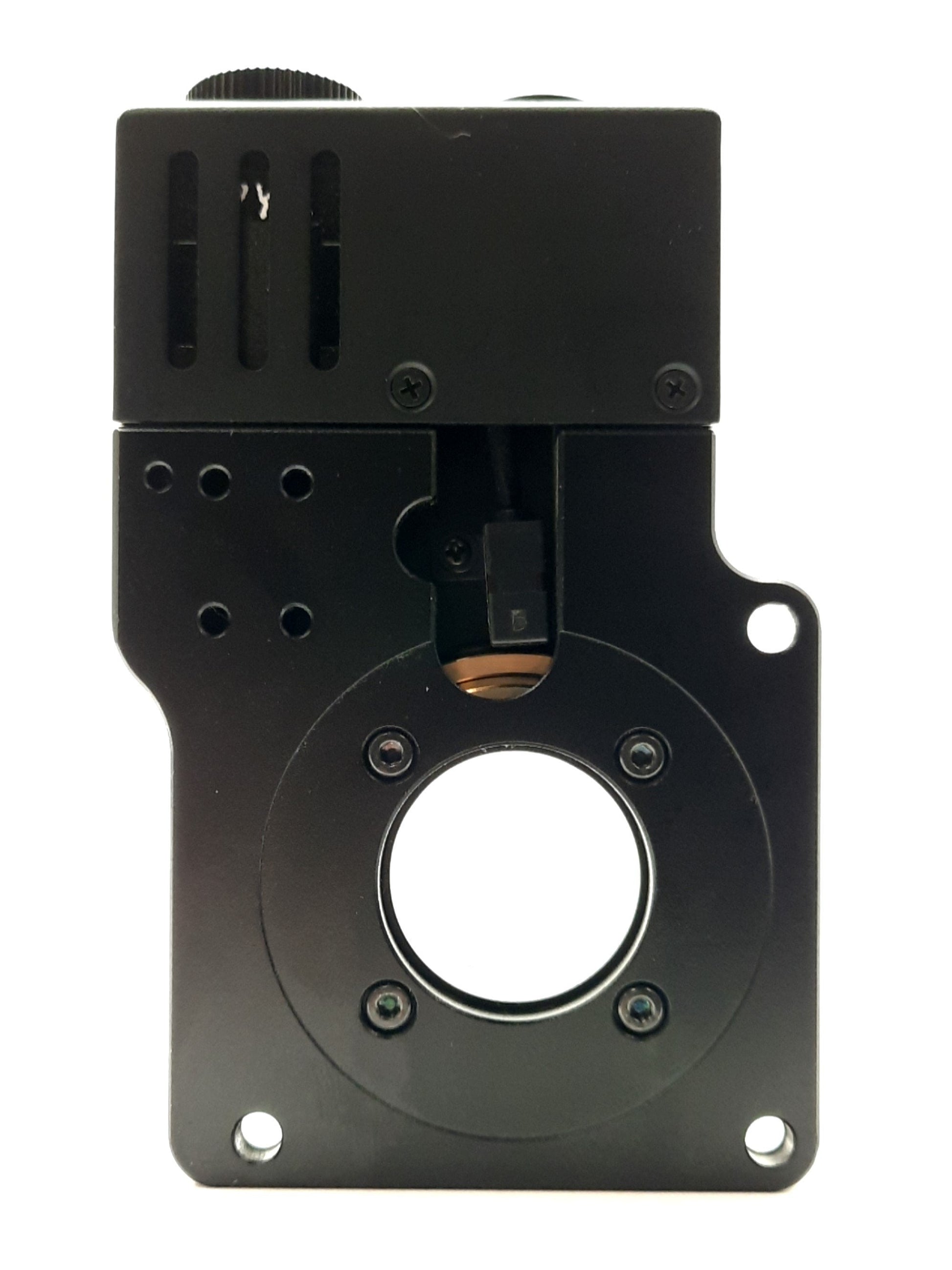

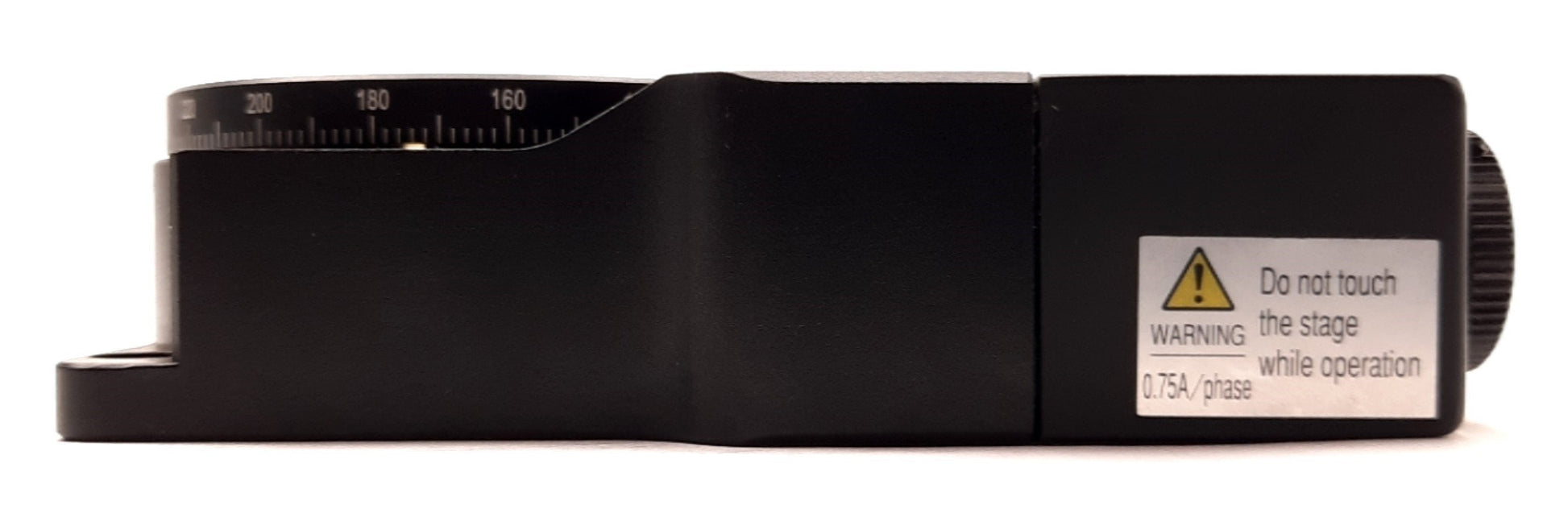

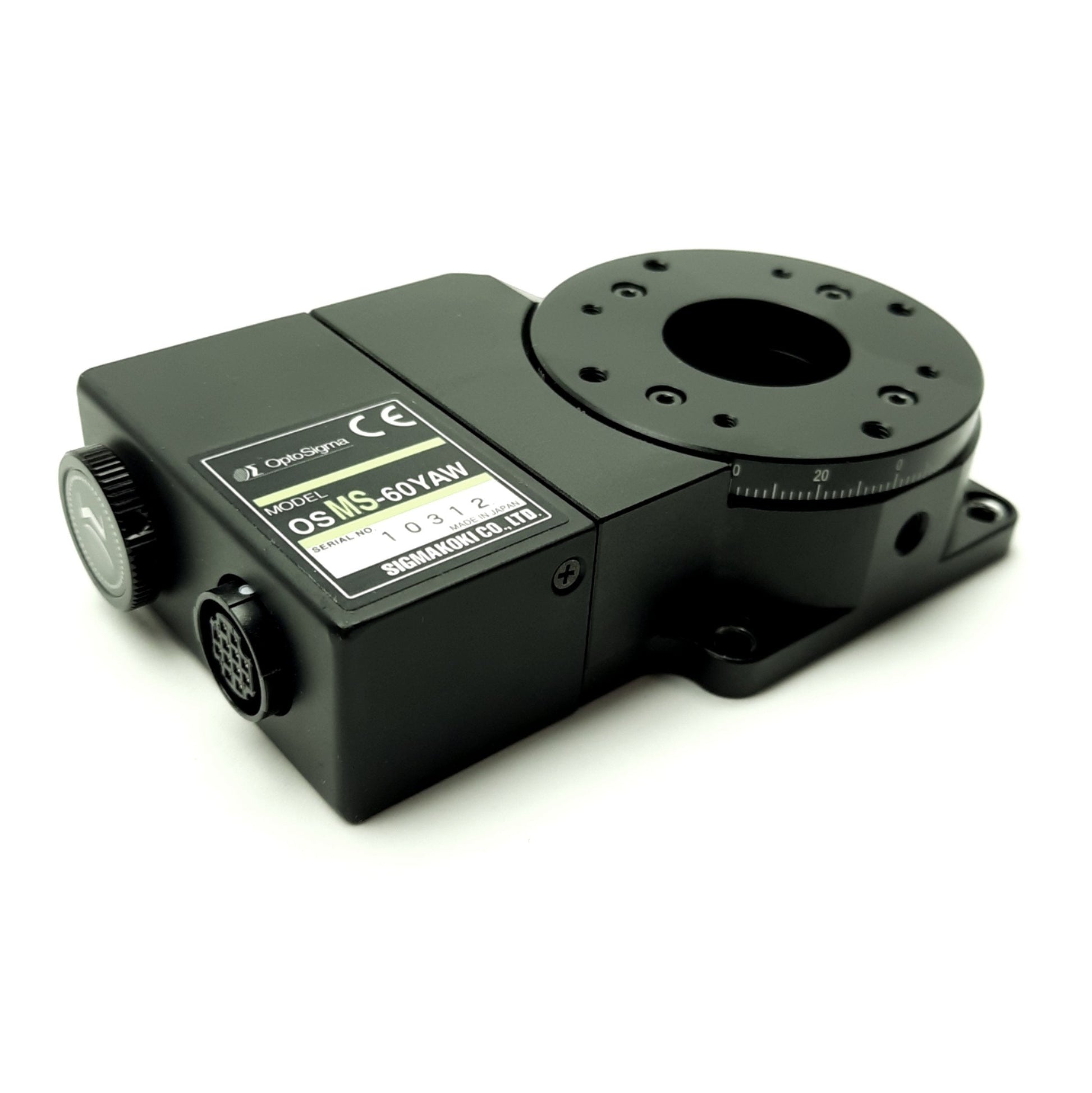

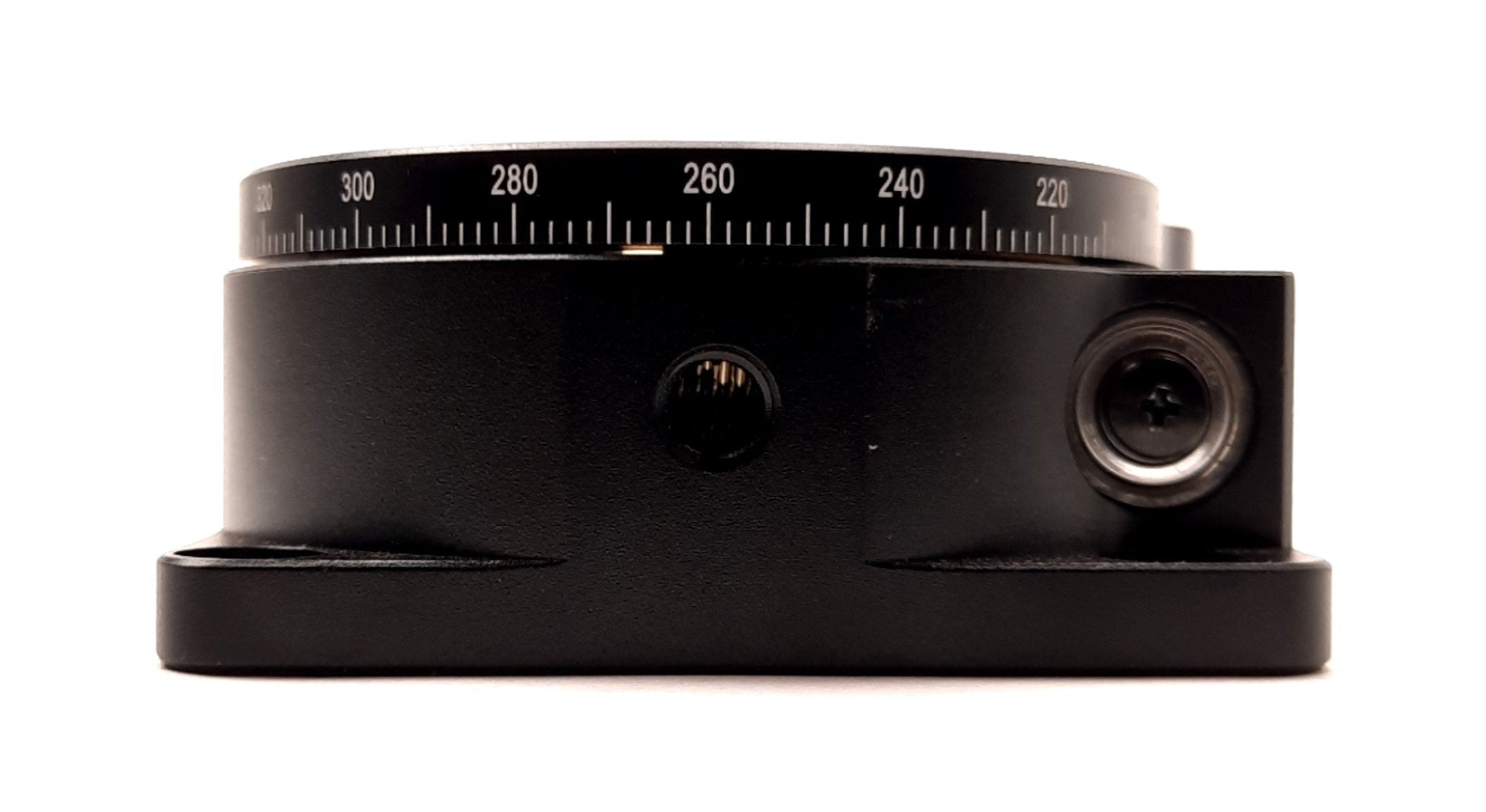

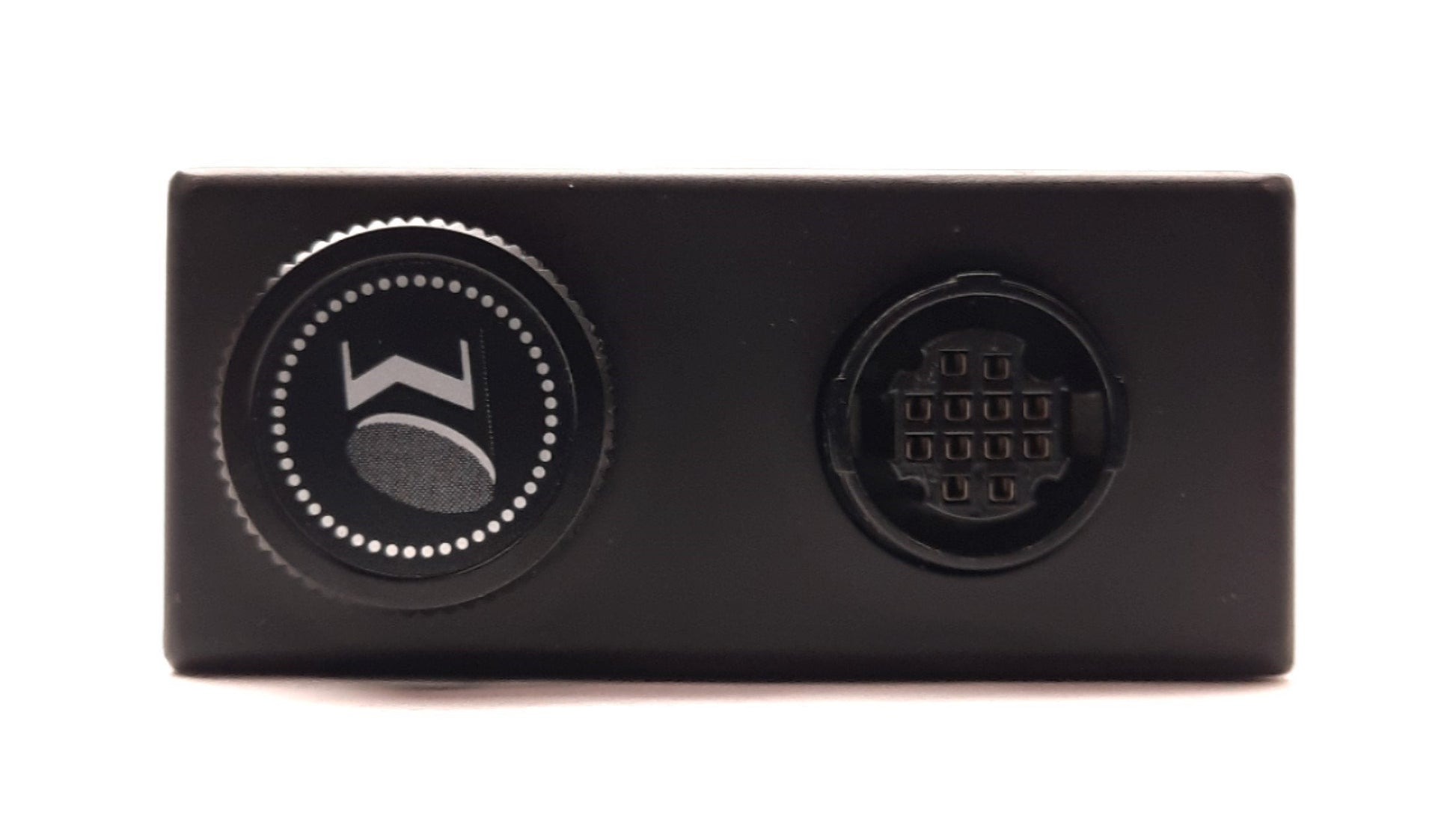

From our inventory we are selling an OptoSigma OSMS-60YAW Stepper Driven Rotary Stage ⌀60mm 3kg 30°/sec 0.1° Backlash.

Specifications:

Model #: OSMS-60YAW
More Information:
- Stepper Driven Rotary Stage
- Drive Type: Motorized Worm Nut and Gear
- Worm Gear Ratio: 1:144
- Motor Type: 5-Phase Stepper
- Stage Diameter: 60mm
- Stage Bore: 25mm
- Stage Thread: 4x M3
- Rotation Range: Move in CCW Direction to 8, and Stop at Near 0 Degree (-2.5°) in the CW Direction
- Resolution:
  - Full: 0.005°/pulse
  - Half: 0.0025°/pulse
- Max Speed: 30°/s
- Positioning Accuracy: 0.1°
- Positional Repeatability: 0.02°
- Backlash: 0.1°
- Max Load: 3kg
- DImensions: 107 x 70 x 28mm
- Mounting: 2x M6, 3x 4.6mm Holes
