Used Parker 105002BTESD3L3C2M1E1 Ball Screw Linear Actuator 2" Travel .2" Lead NEMA23
$600.00 USD
Shipping calculated at checkout.
Warranty Terms and Conditions
We have 1 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for Parker. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-165420
ST36-4-A

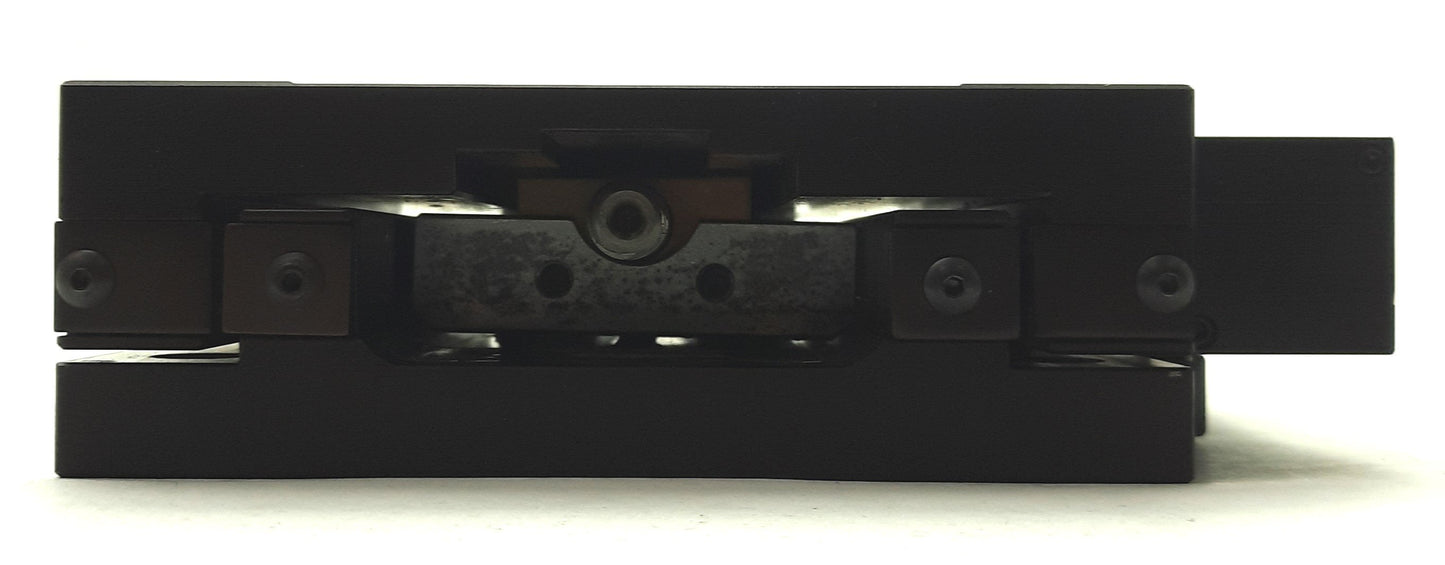

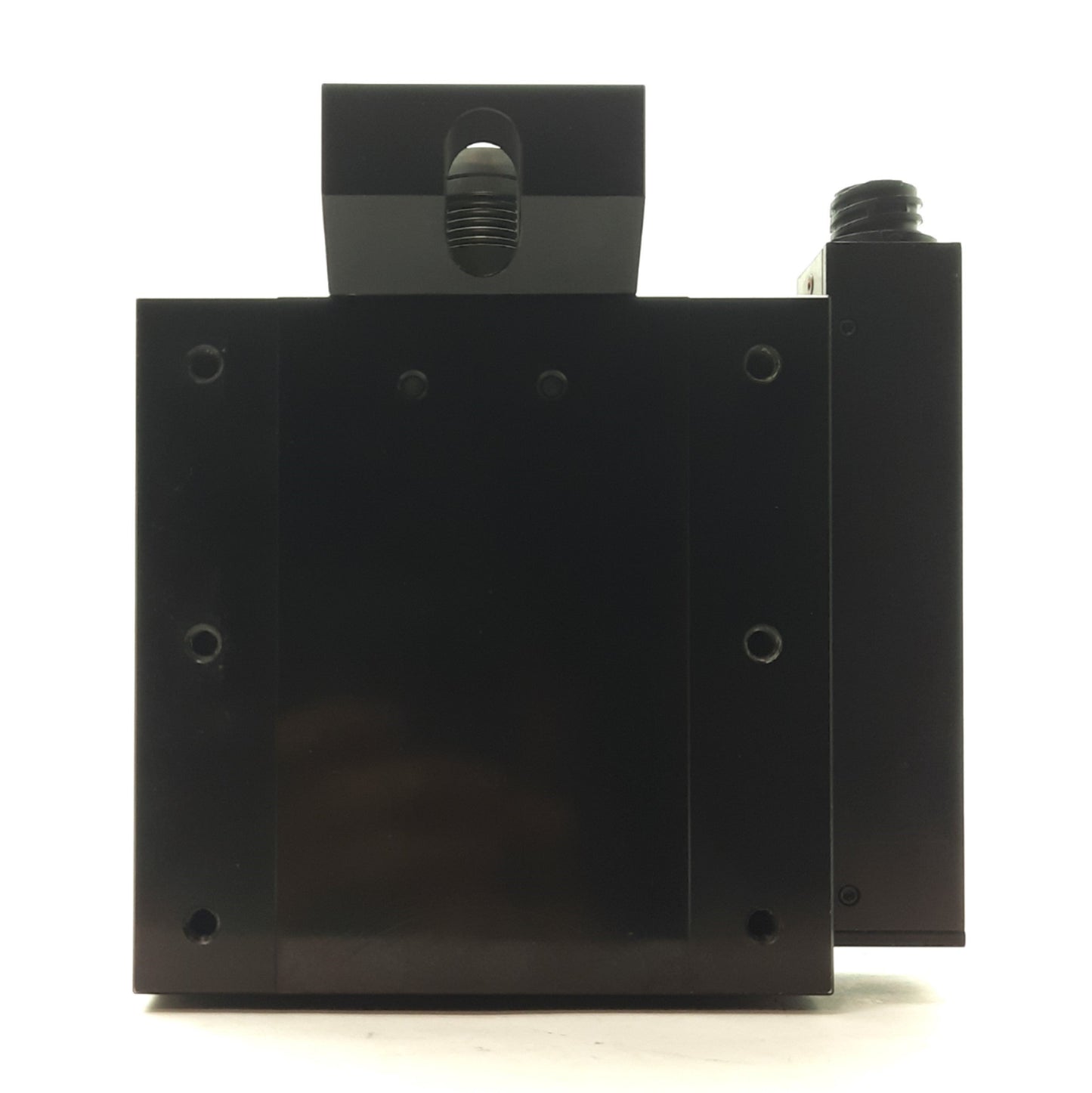

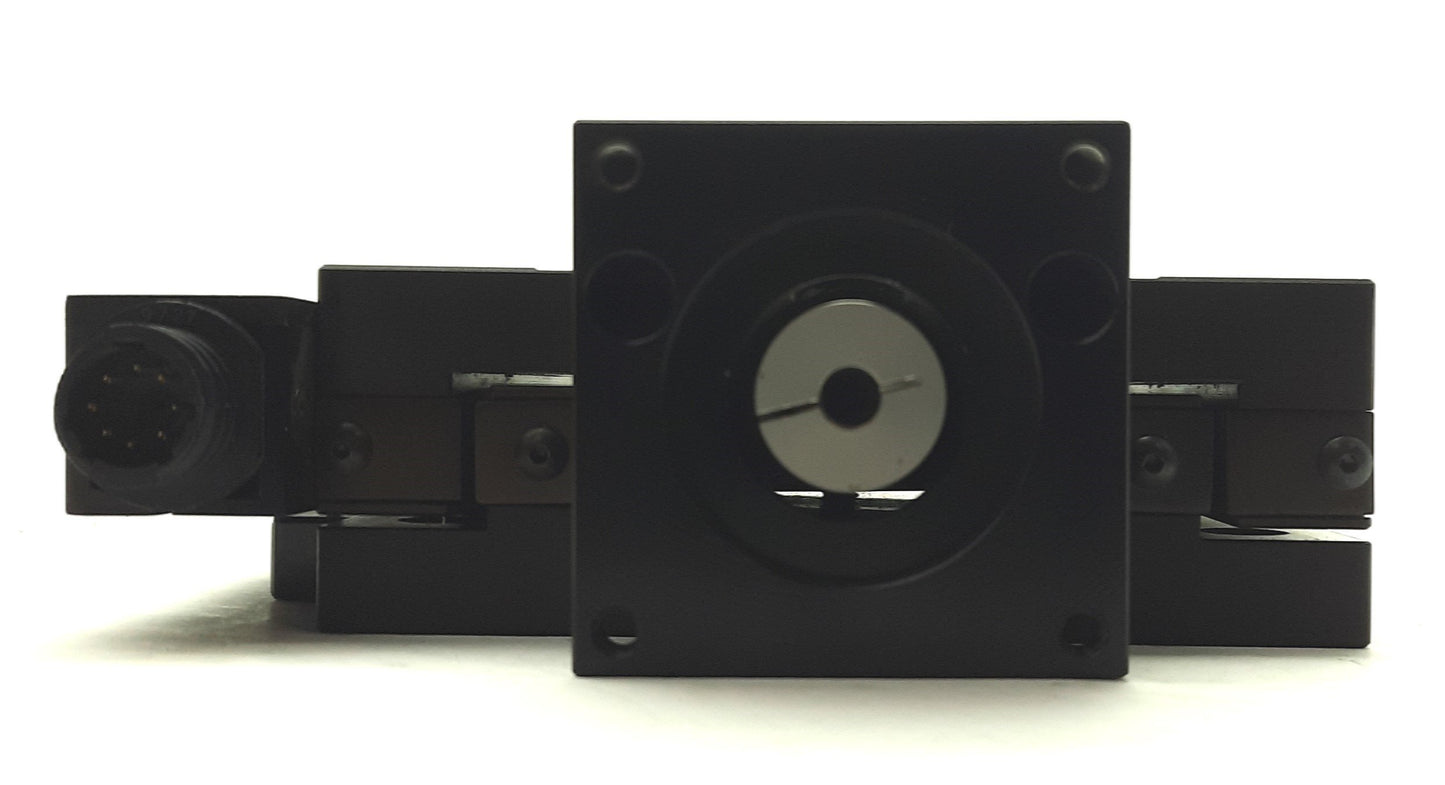

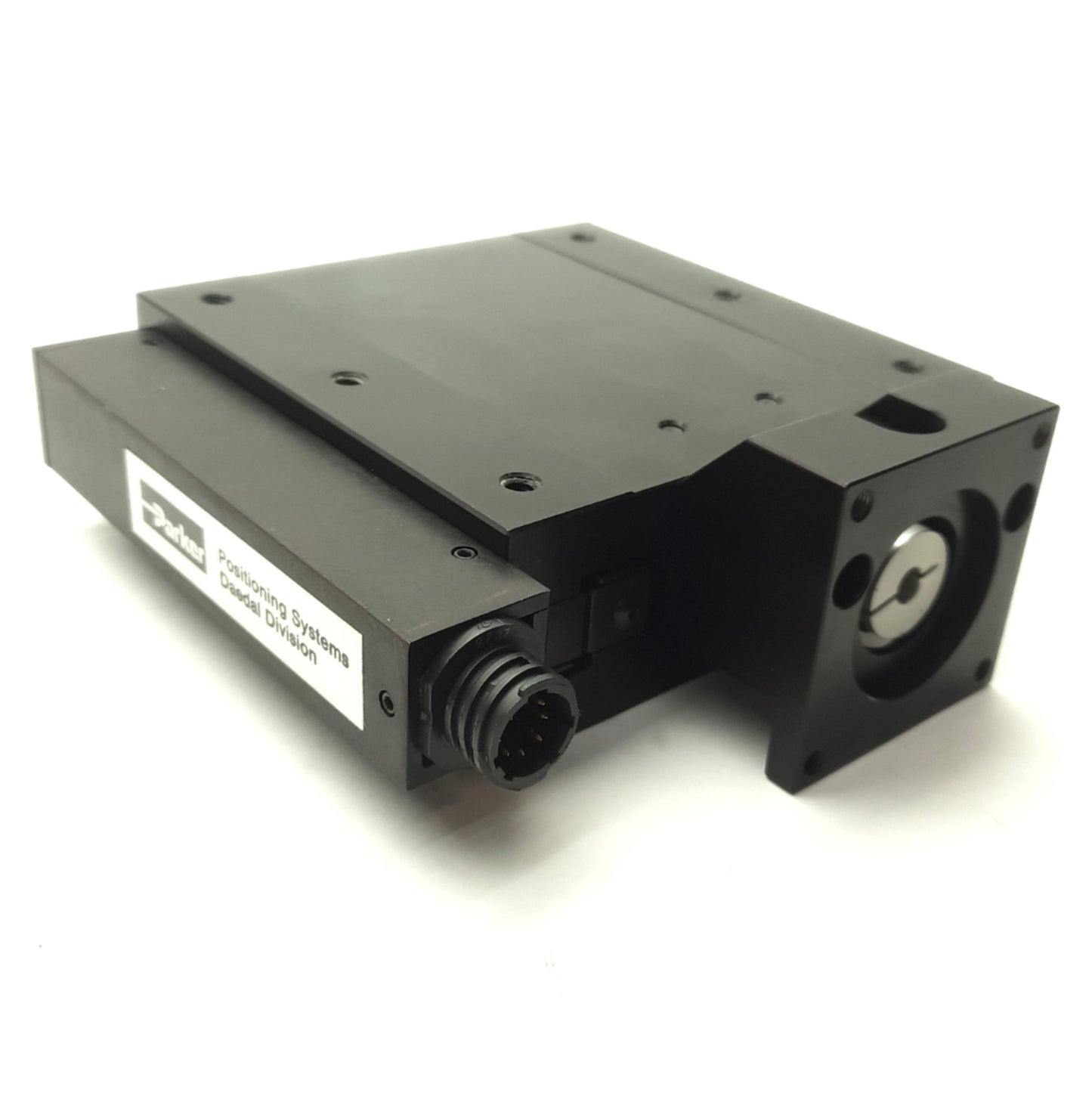

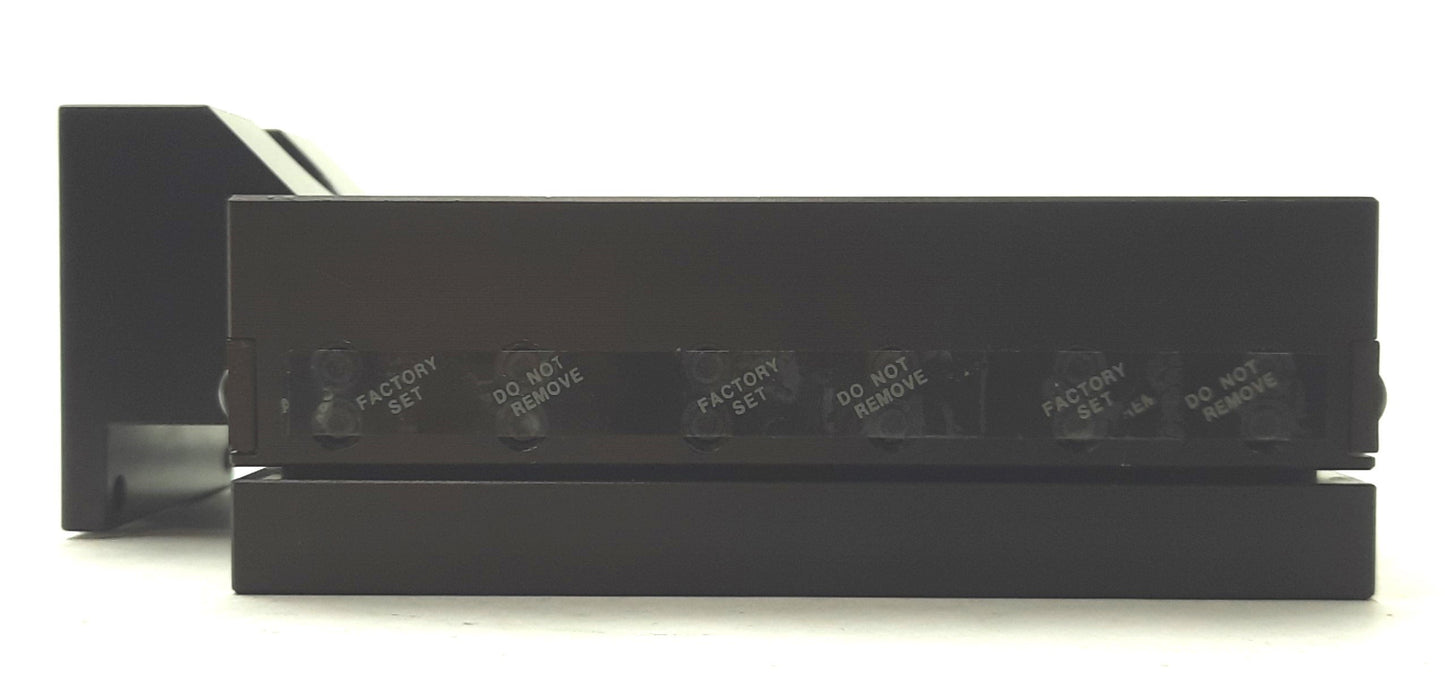

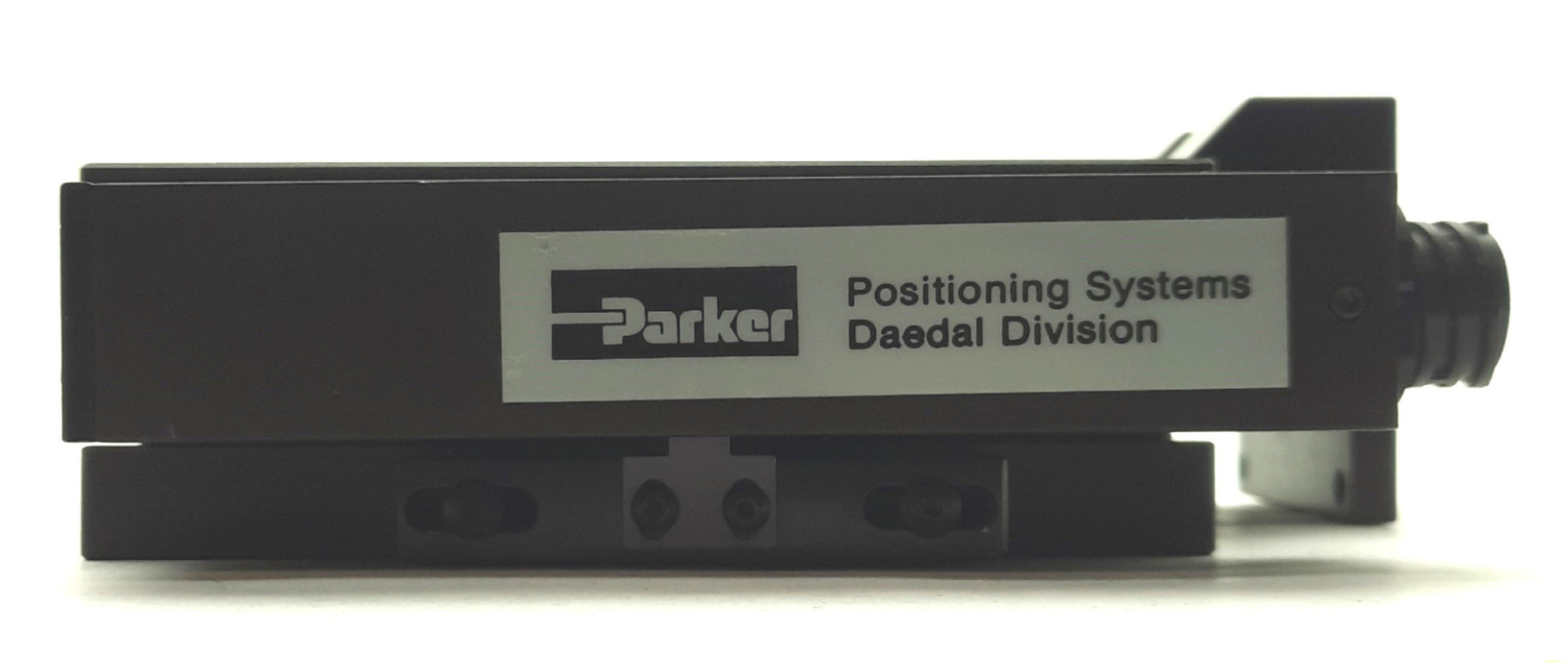

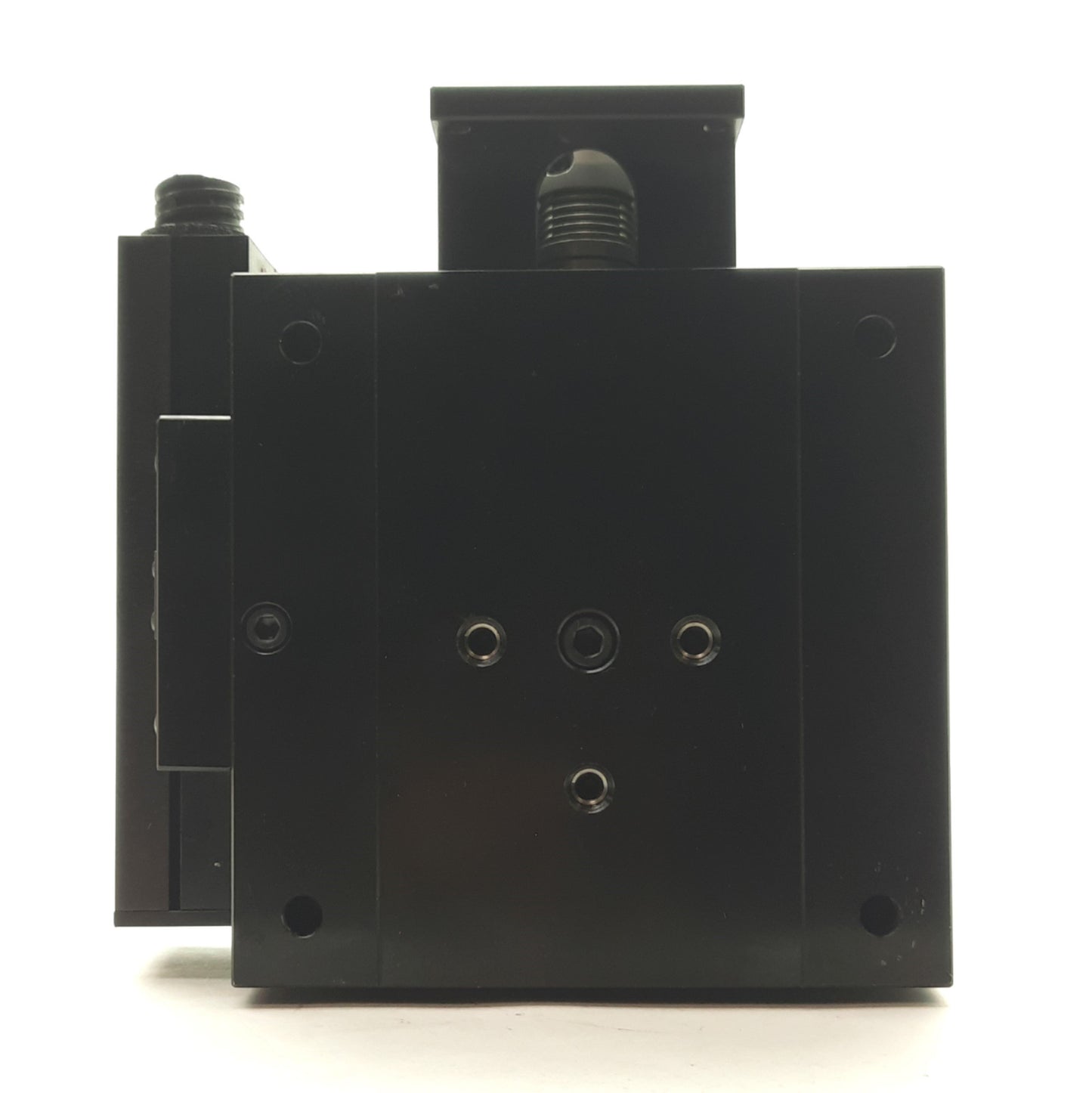

From our inventory we are selling a Parker 105002BTESD3L3C2M1E1 Ball Screw Linear Actuator 2" Travel .2" Lead NEMA23.

Specifications:

  • Model #: 105002BTESD3L3C2M1E1
  • More Information:
    • Belt Screw Linear Actuator
    • Motor Frame Size: NEMA 23
    • Motor Coupler Bore: 1/4"
    • Travel: 2"
    • Lead: .2"
    • Position:
      • Accuracy: 16æm
      • Repeatability: ñ3.0æm
    • Max Screw Speed: 25RPS
    • Torque:
      • Max Running: 15oz-in
      • Max Breakaway: 16.5oz-in
    • Load:
      • Normal: 60lbs
      • Inverted: 30lbs
      • Side: 28lbs
    • Limit/Home Switches: Optical
    • Table Dimensions: 5 x 5"
    • Table Thread: 1/4-20
    • Dimensions: 6 5/16 x 6 x 2 3/16"
