  • Used Parker 506014PD Belt Driven Linear Actuator 14"Travel ñ100æm Repeatable NEMA34
Used Parker 506014PD Belt Driven Linear Actuator 14"Travel ñ100æm Repeatable NEMA34
$600.00 USD
Warranty Terms and Conditions
We have 1 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for Parker. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-130694
PB-2-B

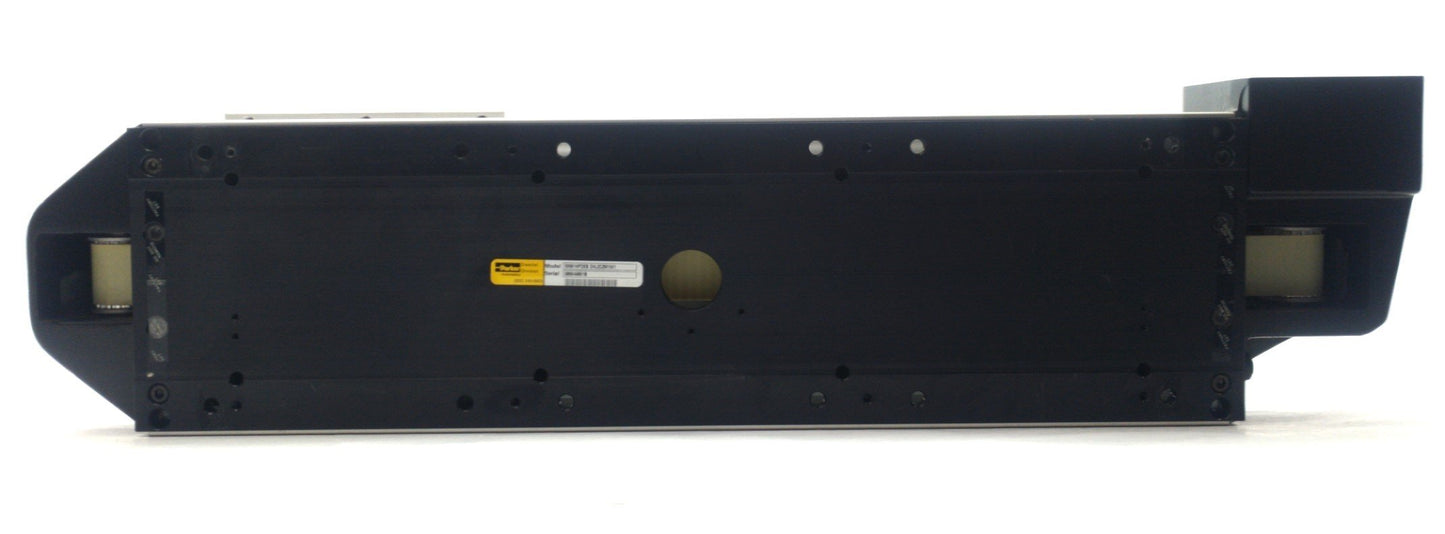

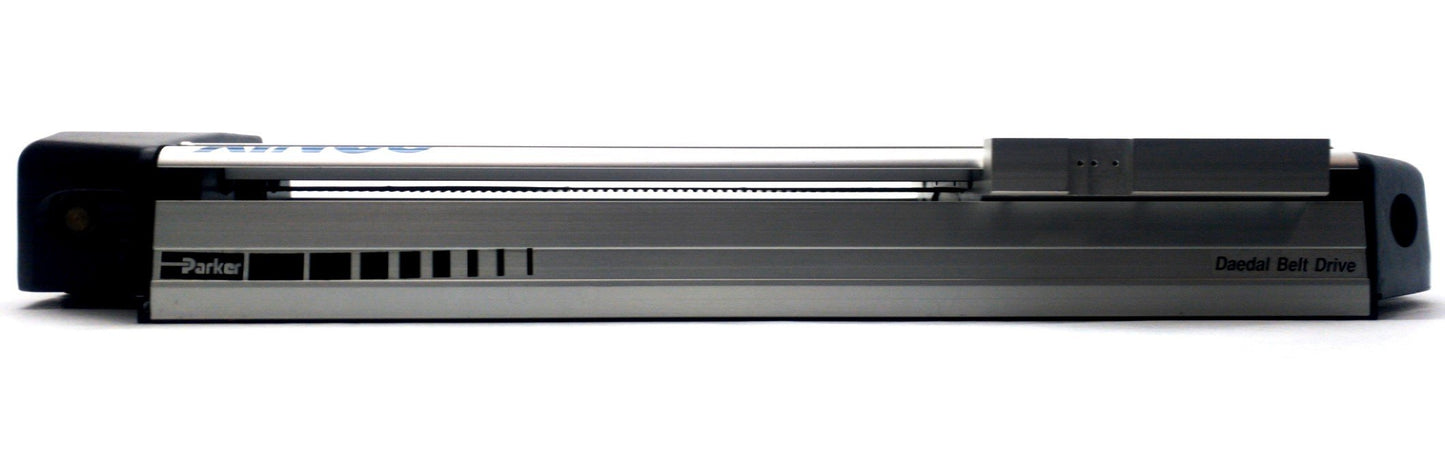

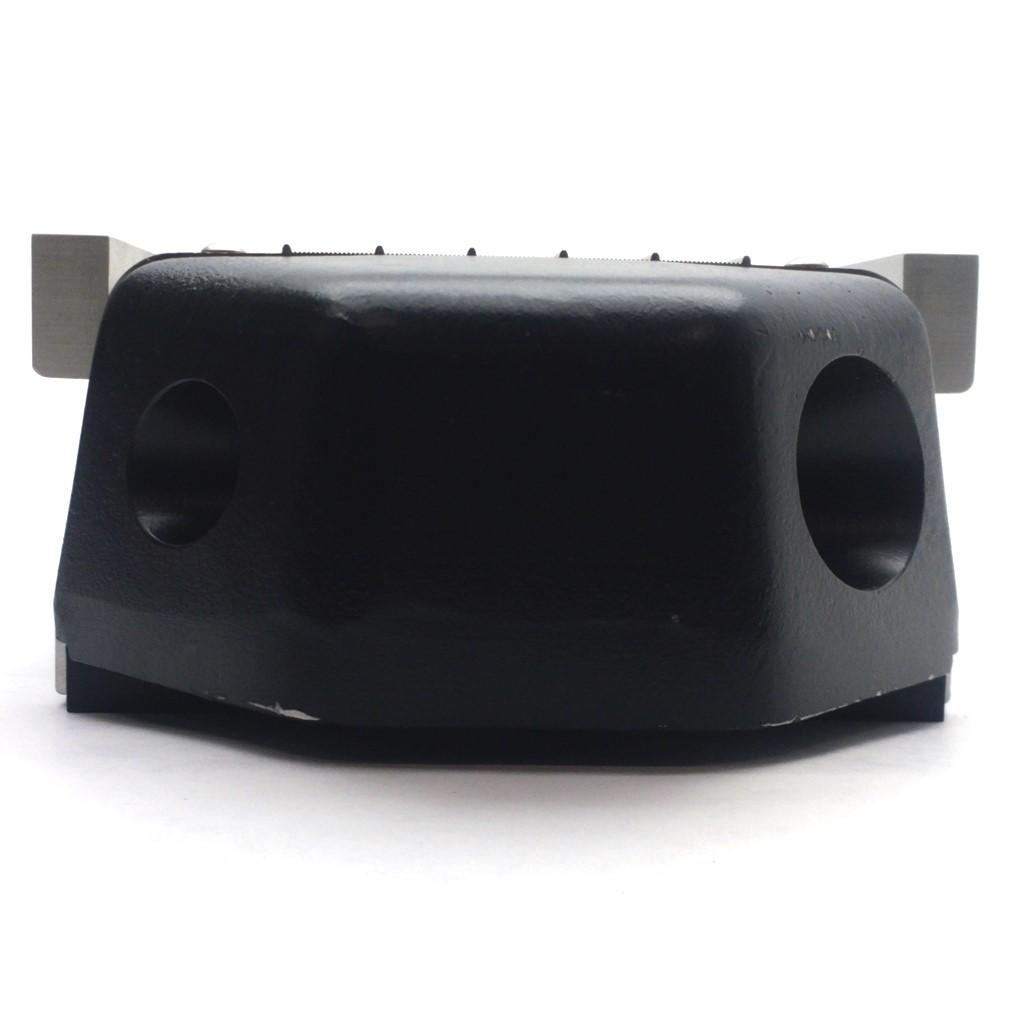

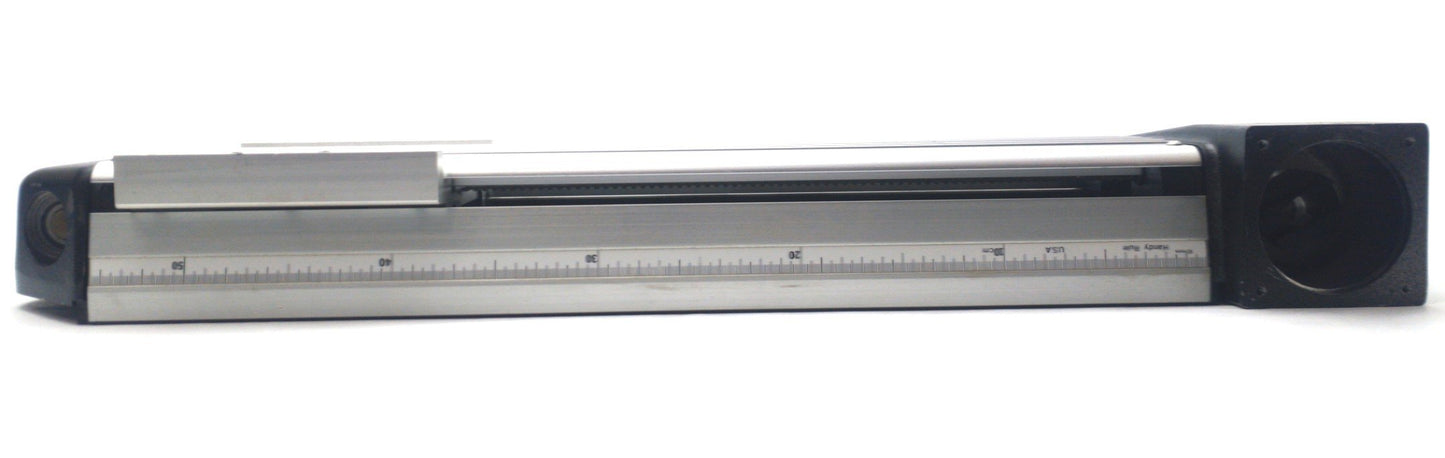

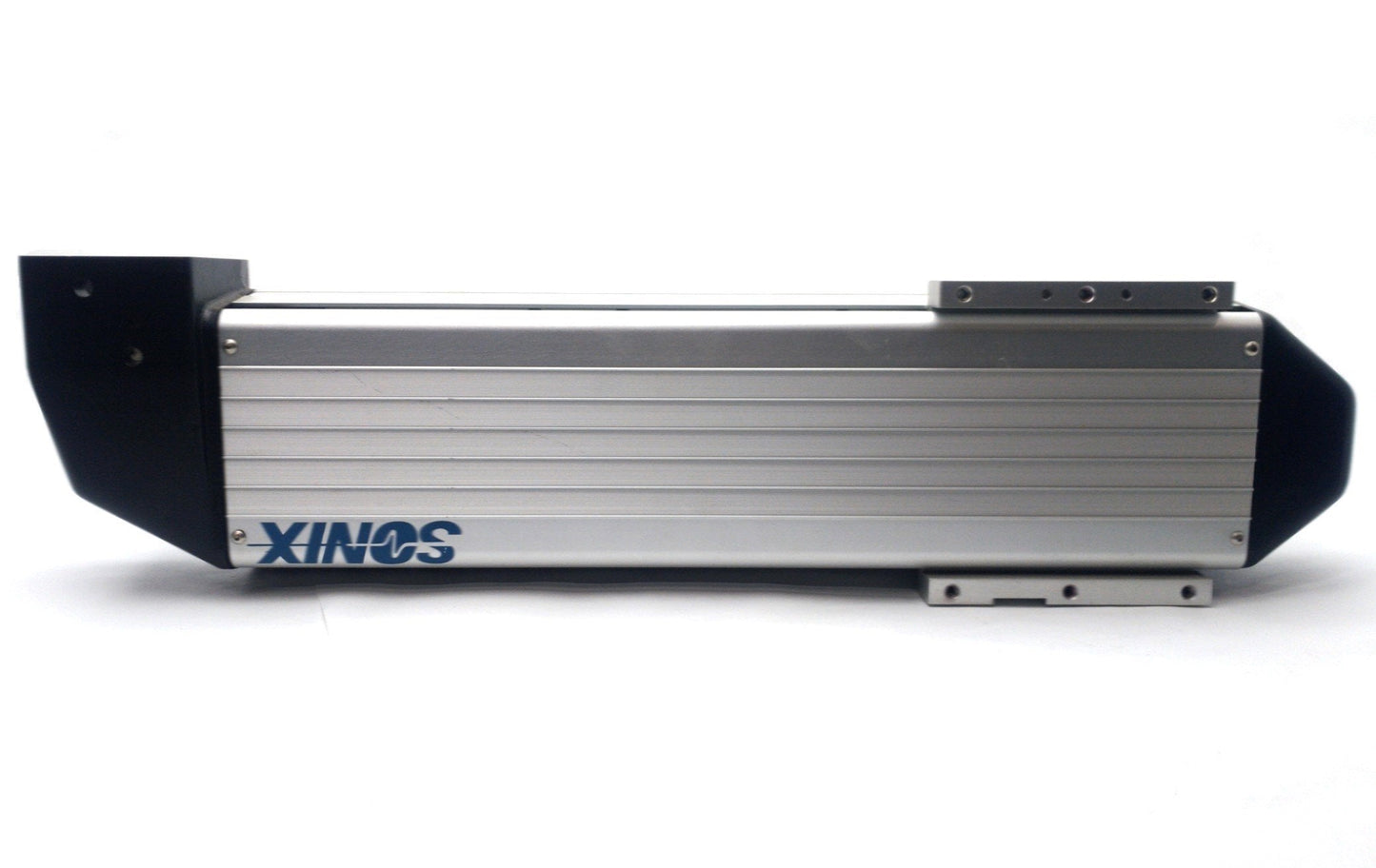

From our inventory we are selling a Parker 506014PD Belt Driven Linear Actuator 14"Travel ñ100æm Repeatable NEMA34.

Specifications:

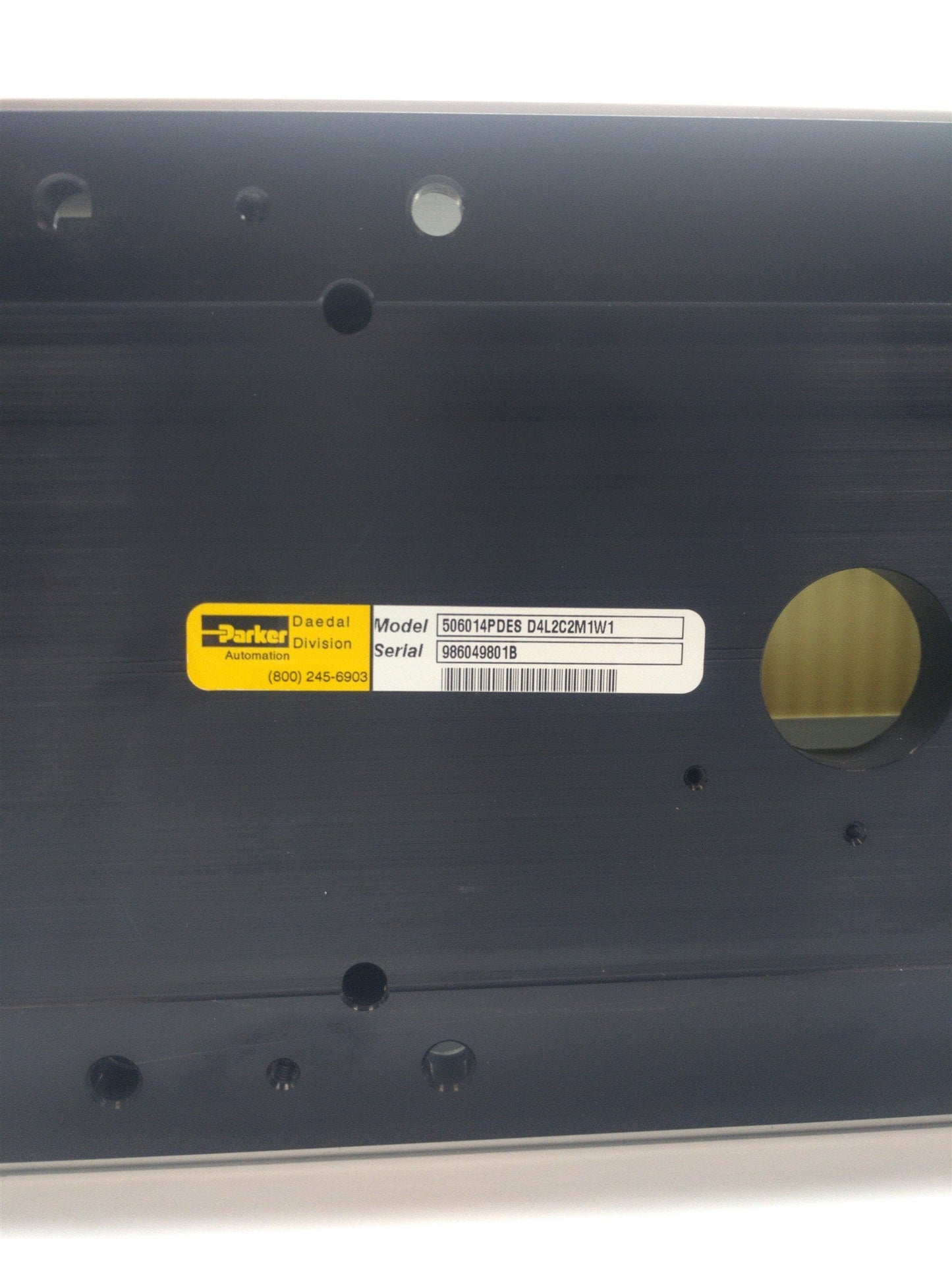

  • Model #: 506014PD-ES-D4L2C2M1W1
  • More Information:
    • Belt Driven Linear Actuator
    • Motor Size: NEMA 34

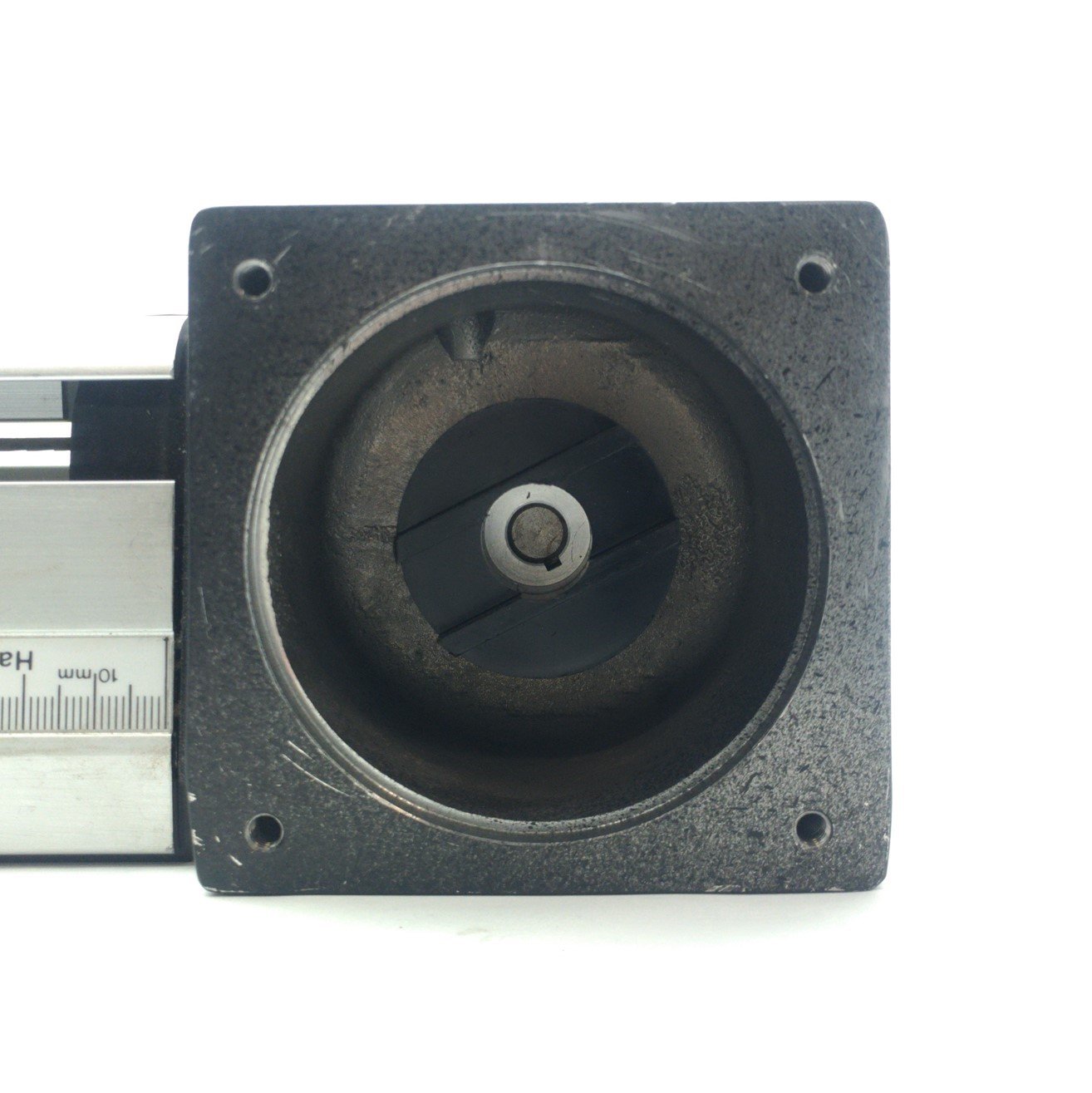

    • Motor Coupler: 0.375" Bore Oldham
    • Travel: 14"
    • Turns Per Inch: 3/8
    • Repeatability: ñ100æm
    • Max Speed: 120in/sec
    • Torque:
      • Running: 24oz-in
      • Breakaway: 26oz-in
    • Load:
      • Normal: 200lbs
      • Inverted: 100lbs
      • Side: 168lbs
    • Switches: Magnetic Limit/Home Switches
    • Connector: 9-Pin Round
    • Table Dimensions: 6 13/16 x 6"
    • Table Thread: 1/4-20
    • Dimensions: 28 x 7 x 3.5"
