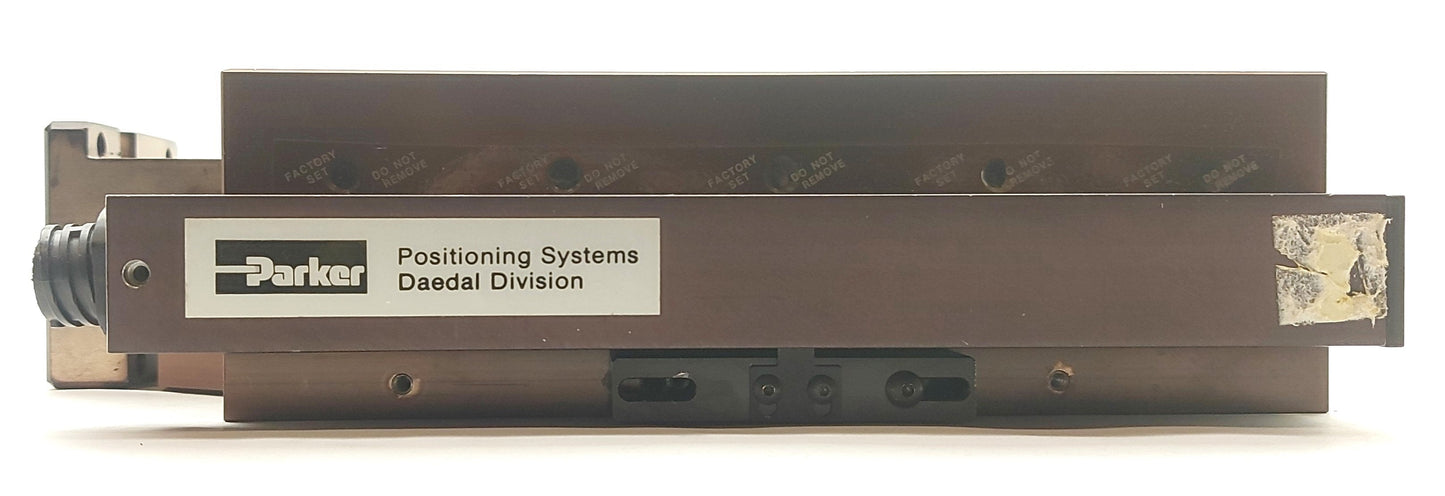

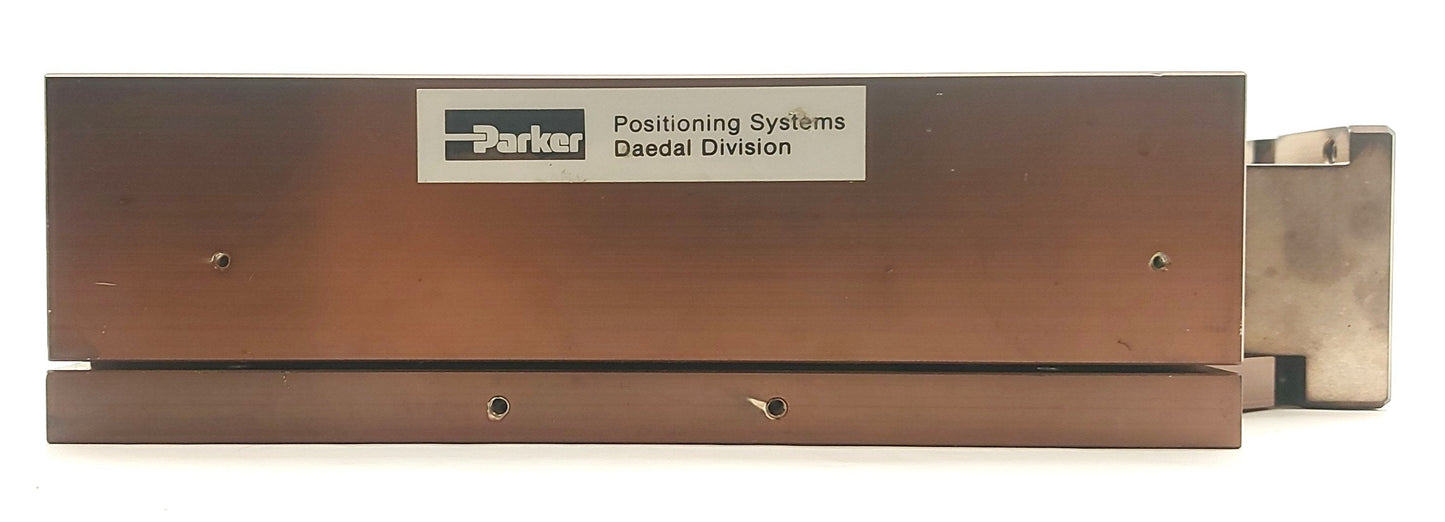

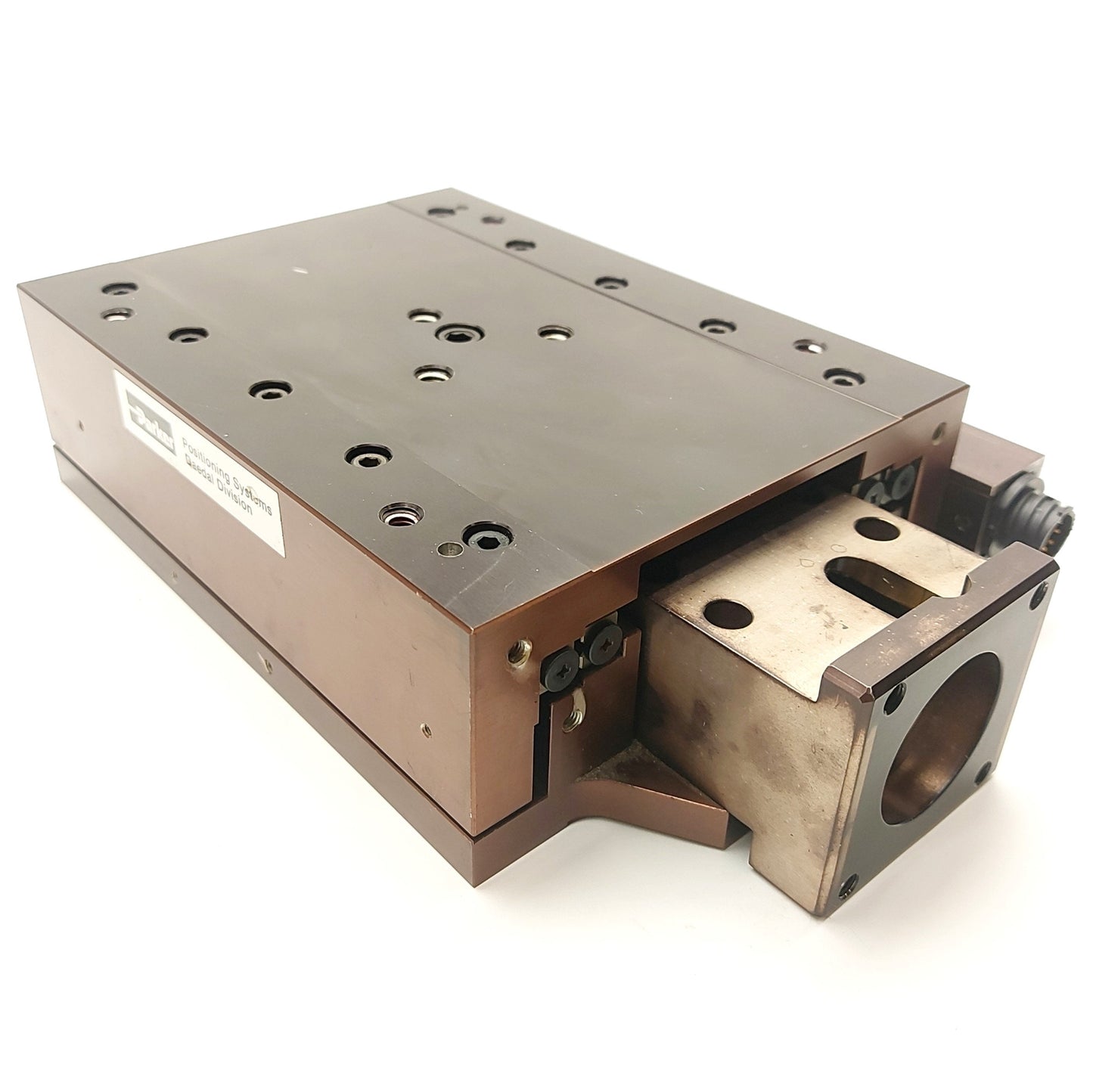

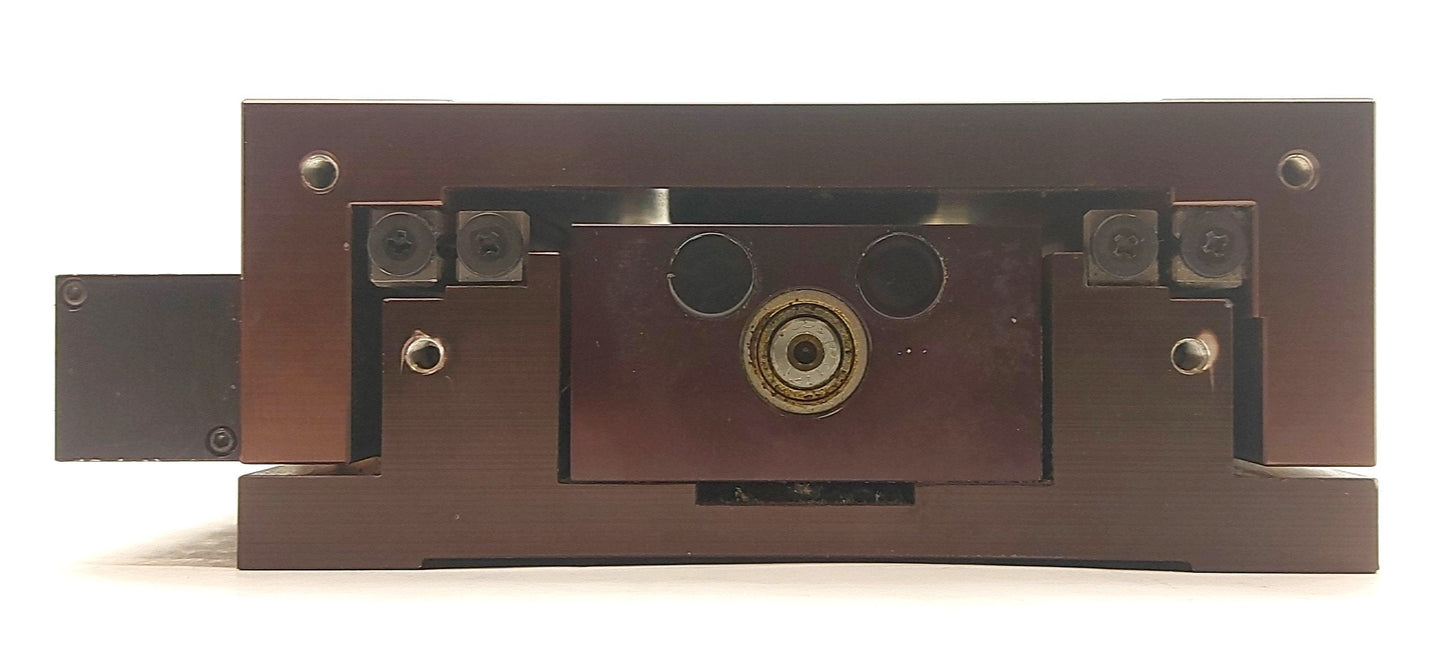

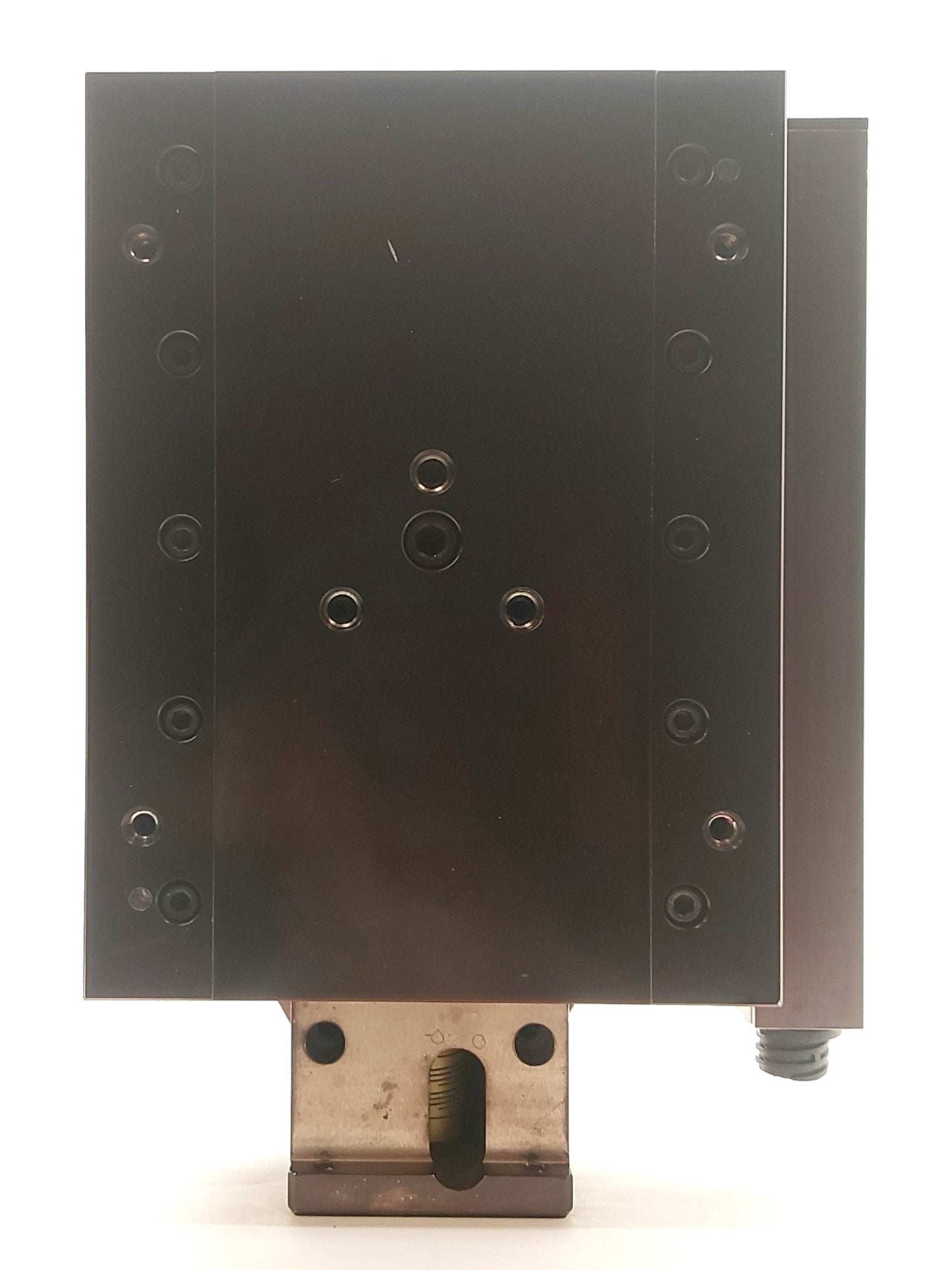

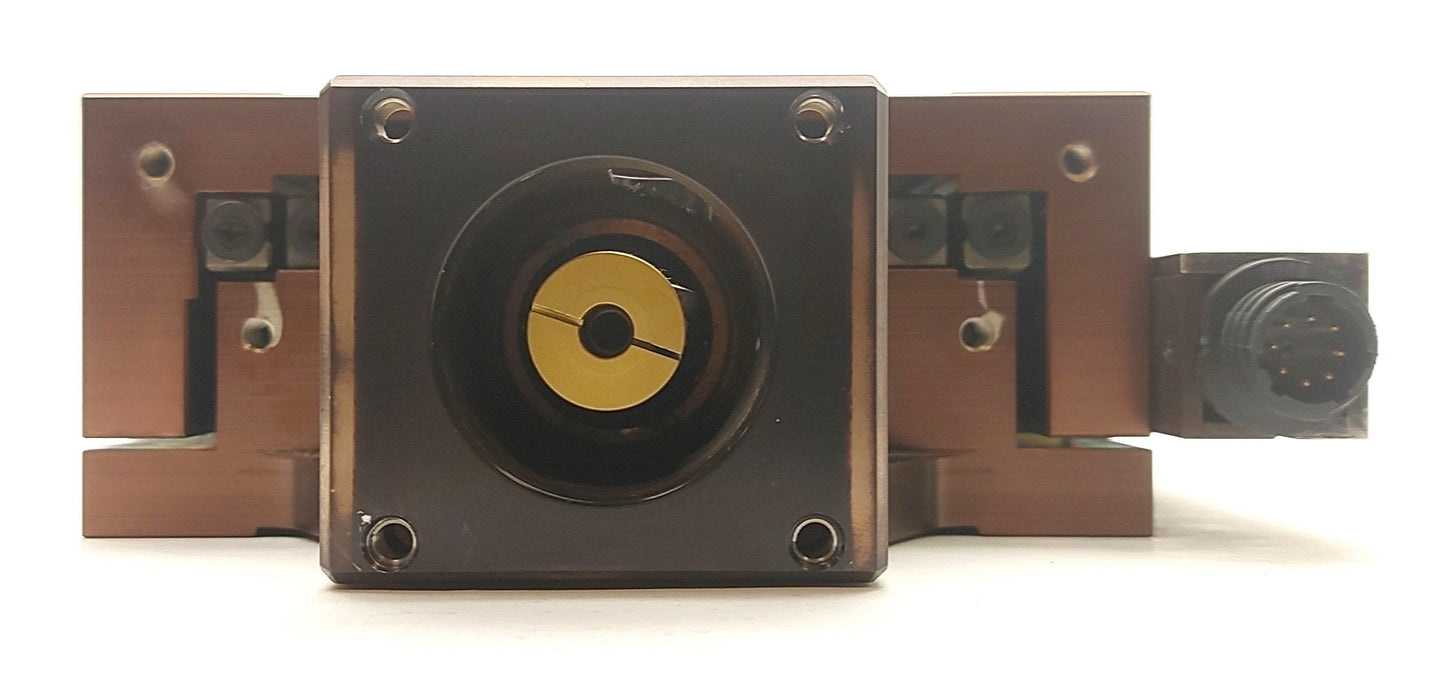

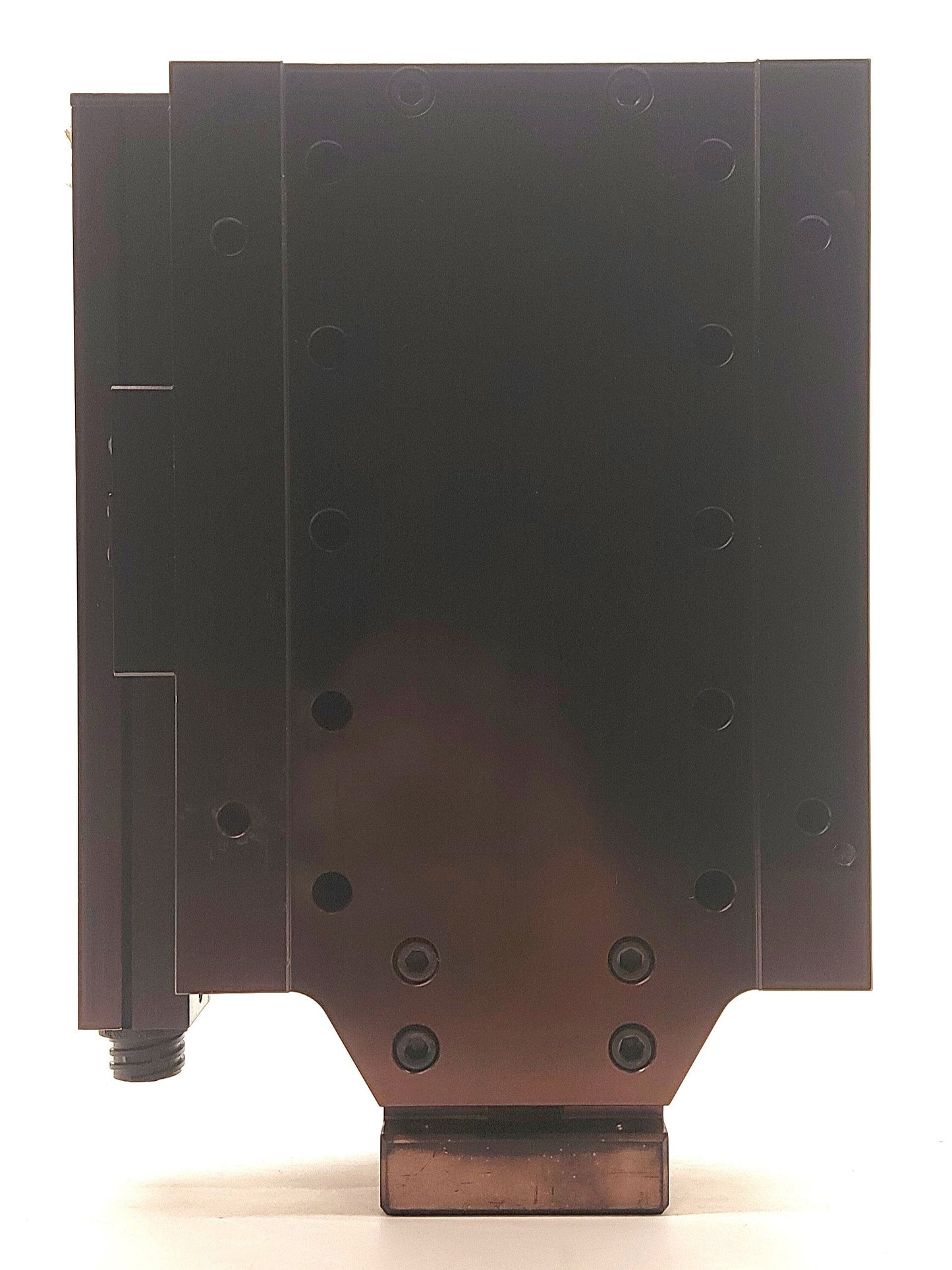

Used Parker 806004 Ball Screw Linear Actuator Stage 4" Travel .2" Lead 220lbs NEMA23
$325.00 USD
Warranty Terms and Conditions
We have 2 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for Parker. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-157431
PR-4-A

From our inventory we are selling a Parker 806004 Ball Screw Linear Actuator Stage 4" Travel .2" Lead 220lbs NEMA23MA23.

Specifications:

  • Model #: 806004CTESD1L3C4M1E1
  • More Information:
    • Ball Screw Linear Actuator Stage
    • Motor Mount: NEMA23
    • Travel: 4"
    • Lead: .2"
    • Accuracy: ñ0.00032"
    • Bearing Type: Crossed Roller
    • Load Capacity:
      • Normal: 220lbs
      • Inverted: 110lbs
      • Axial: 200lbs
    • Stage Dimensions: 8 x 6"
    • Stage Thread: 1/4-20
    • Dimensions: 9 15/16 x 6 29/32 x 2 15/32"
