Specifications:

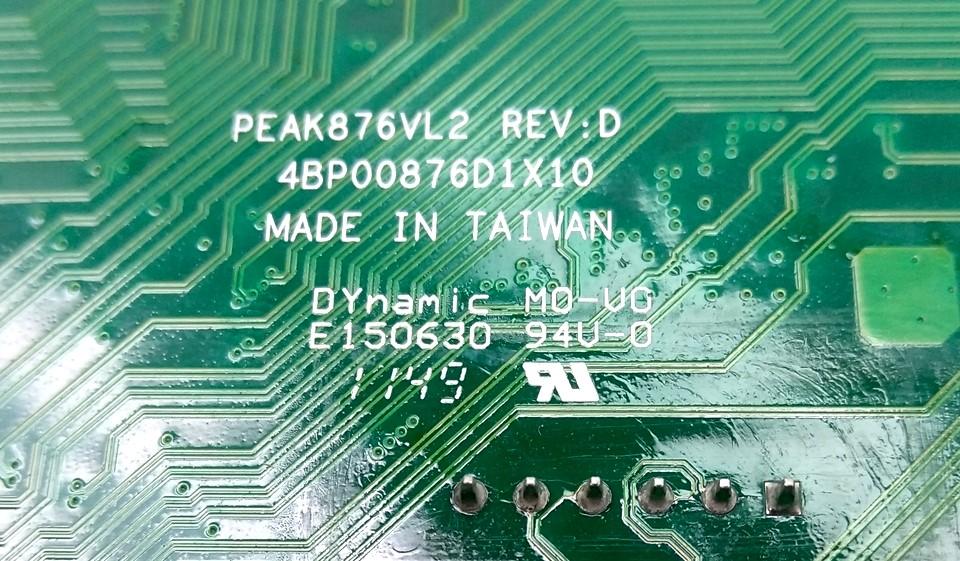

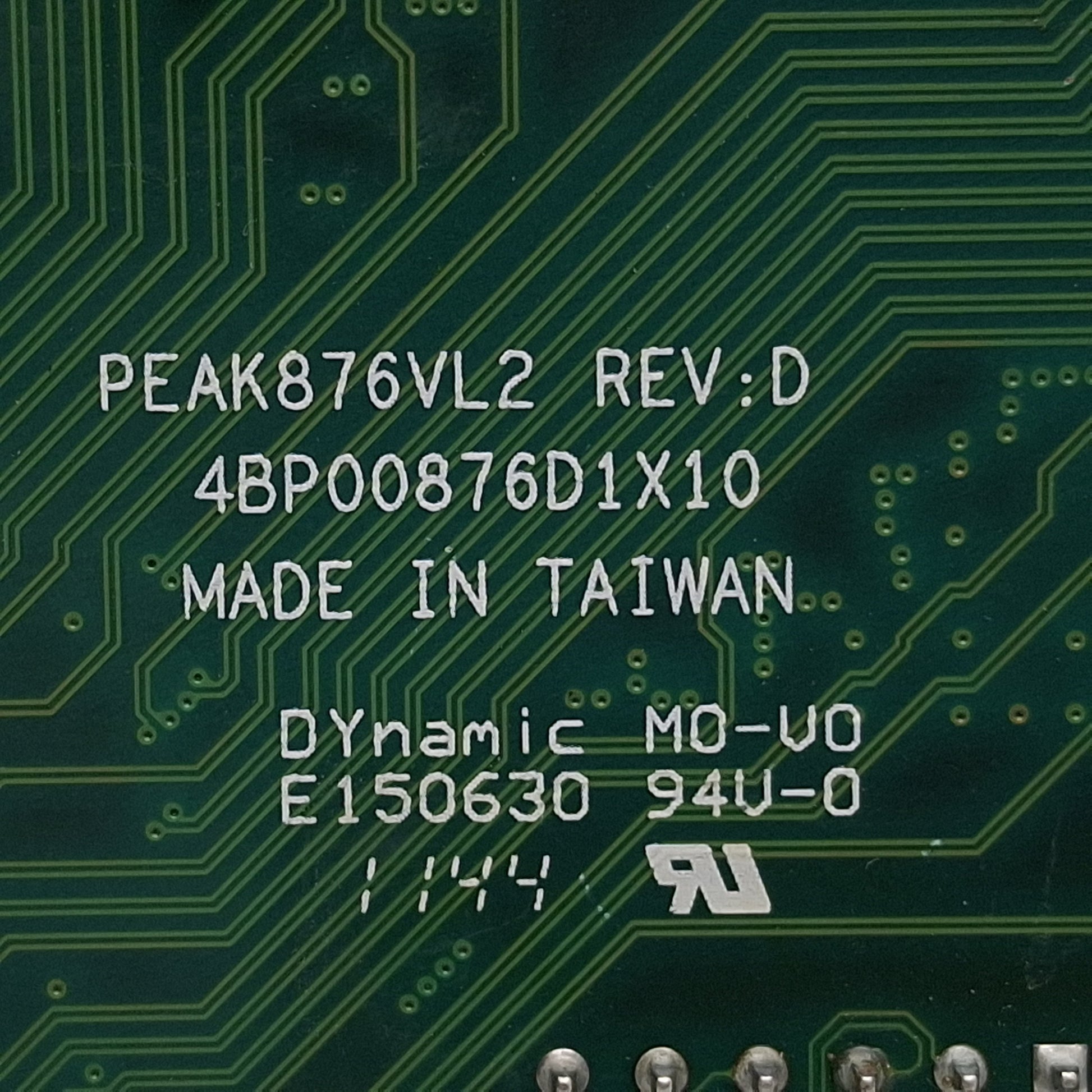

• Model #: 876VL2
• More Information:

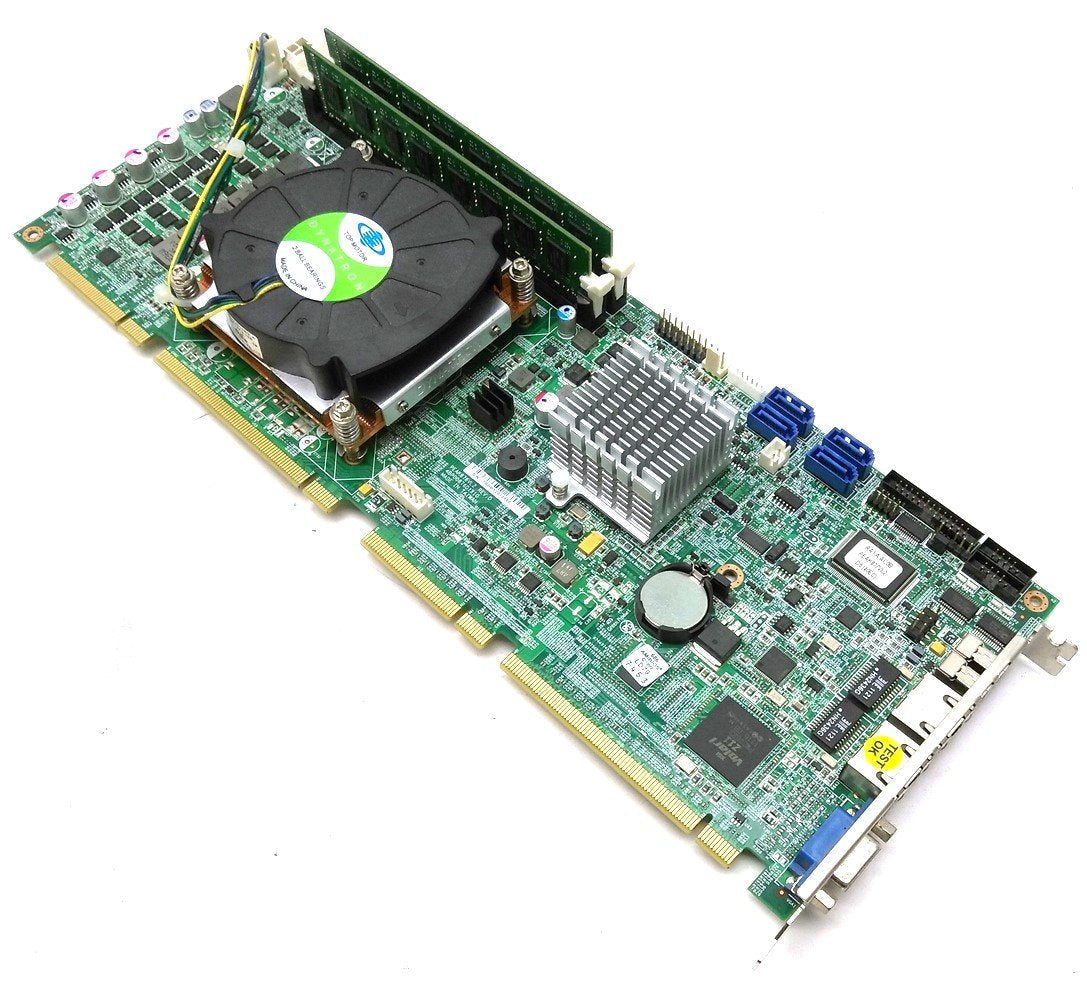

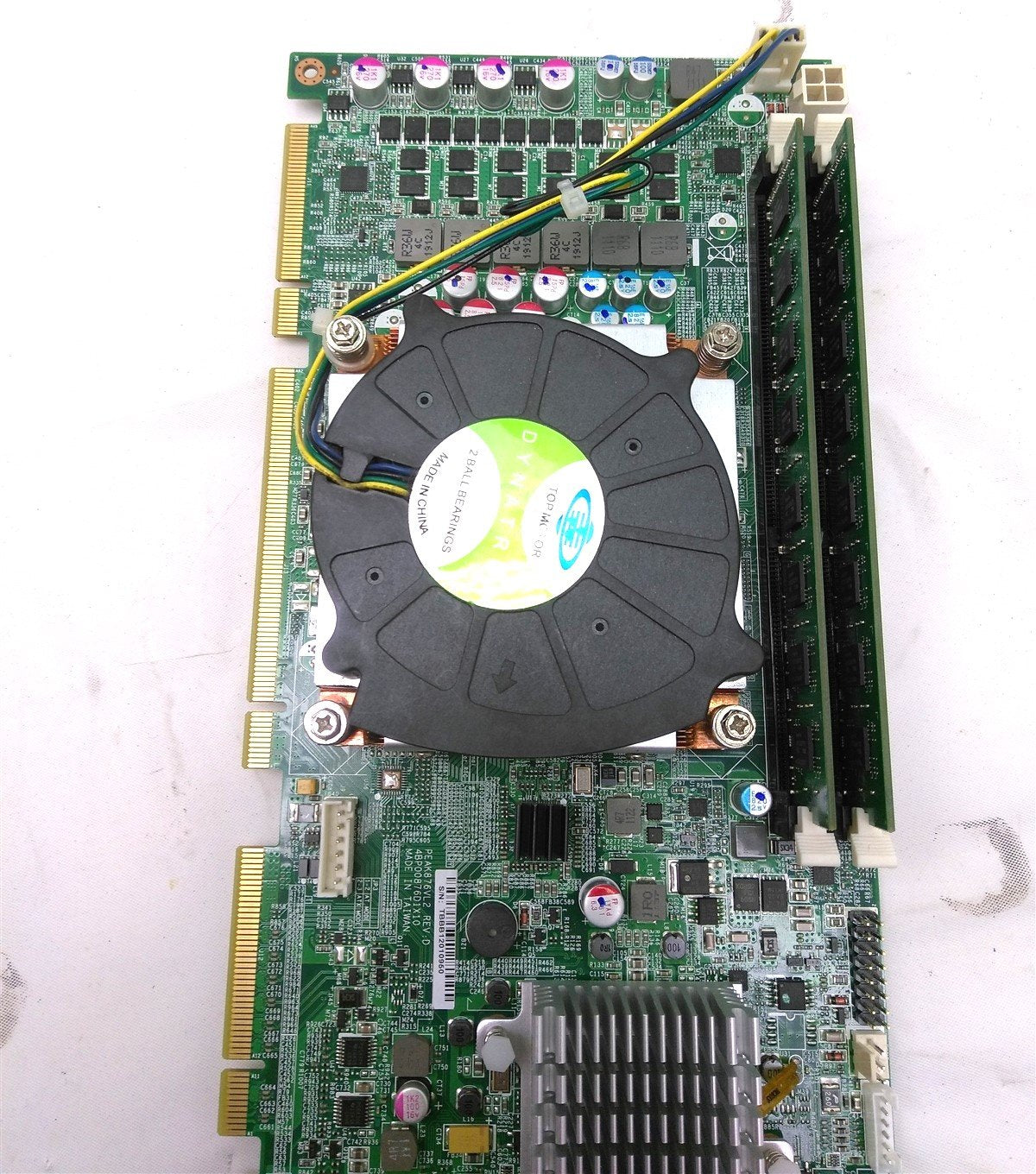

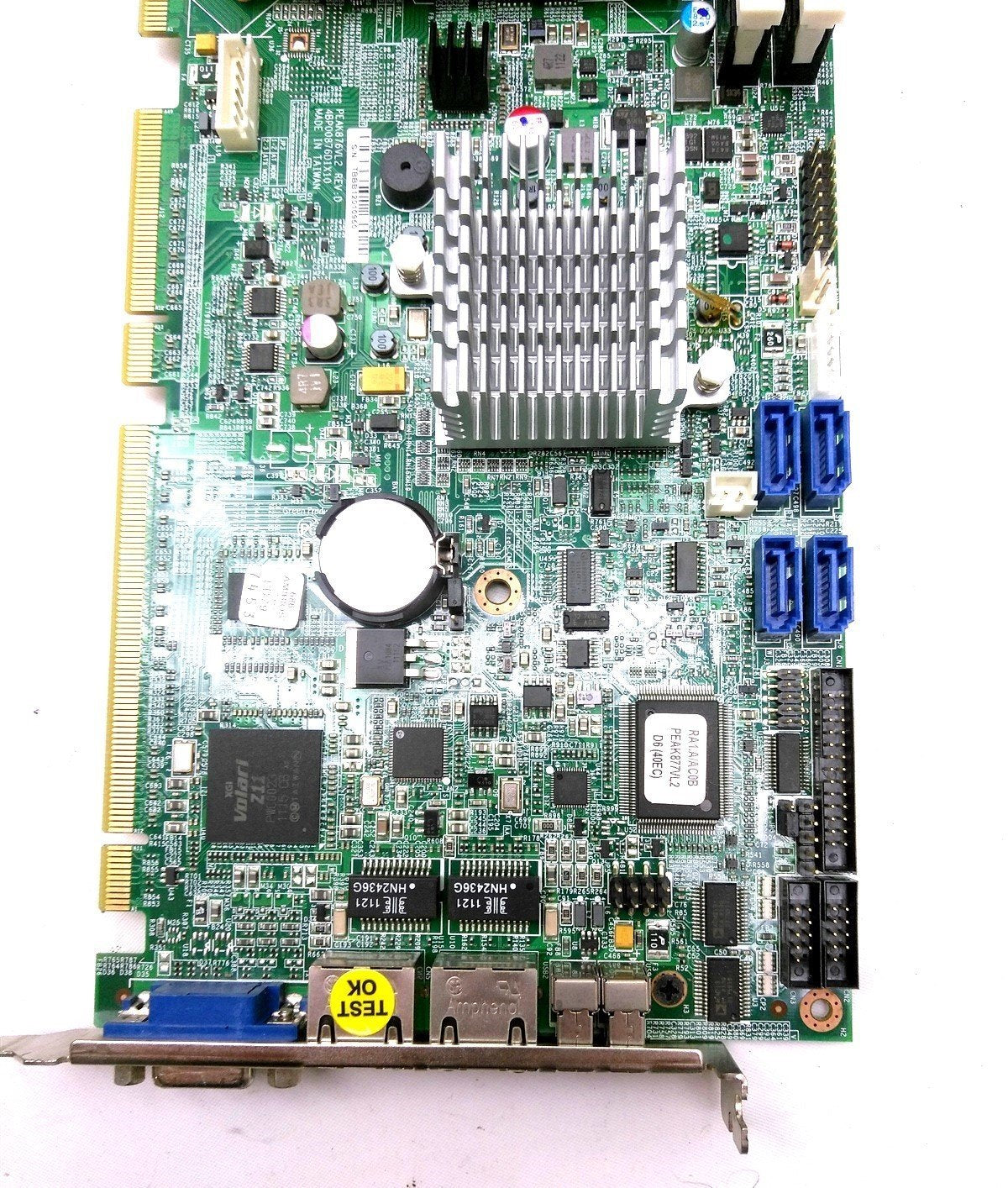

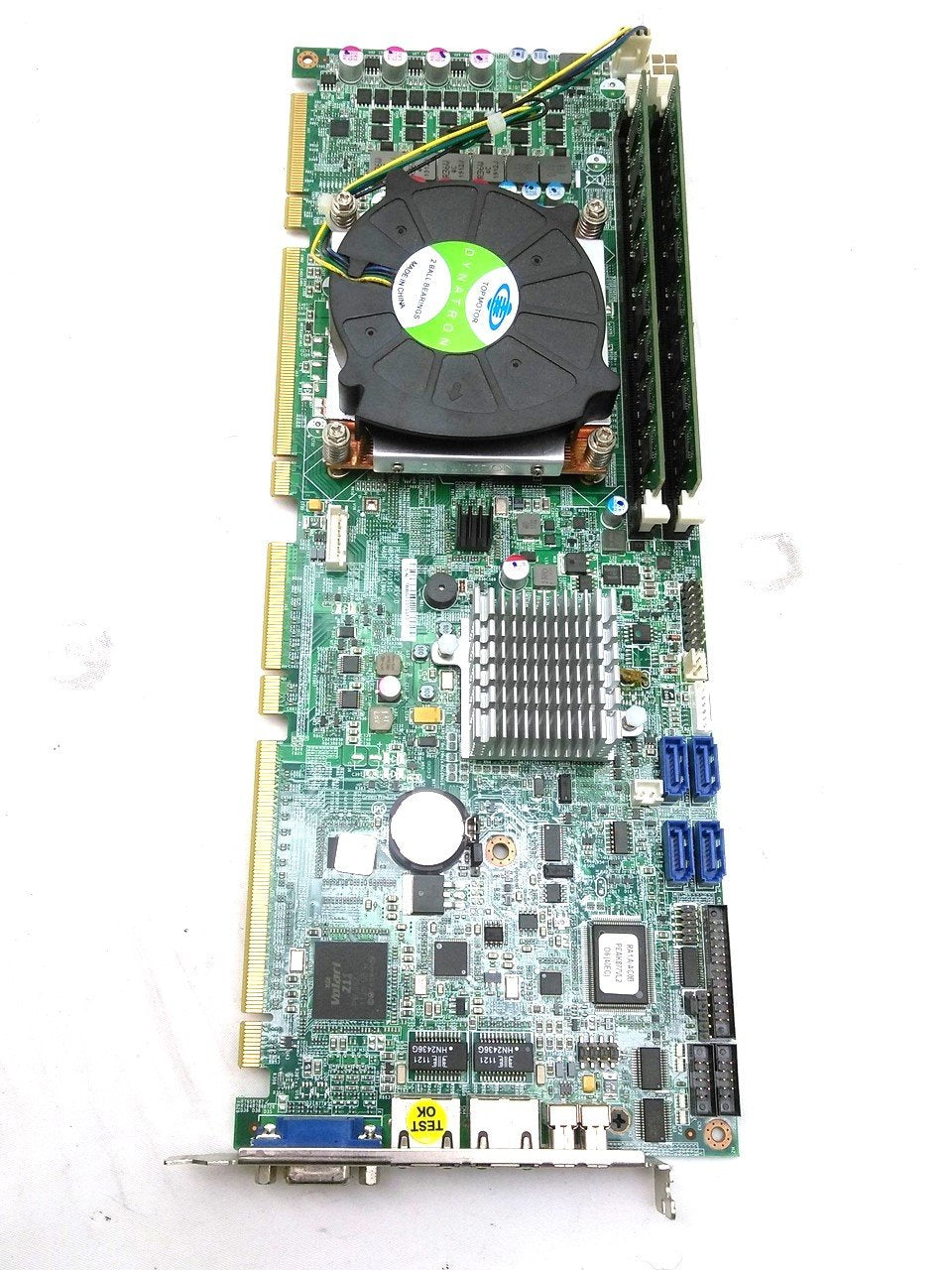

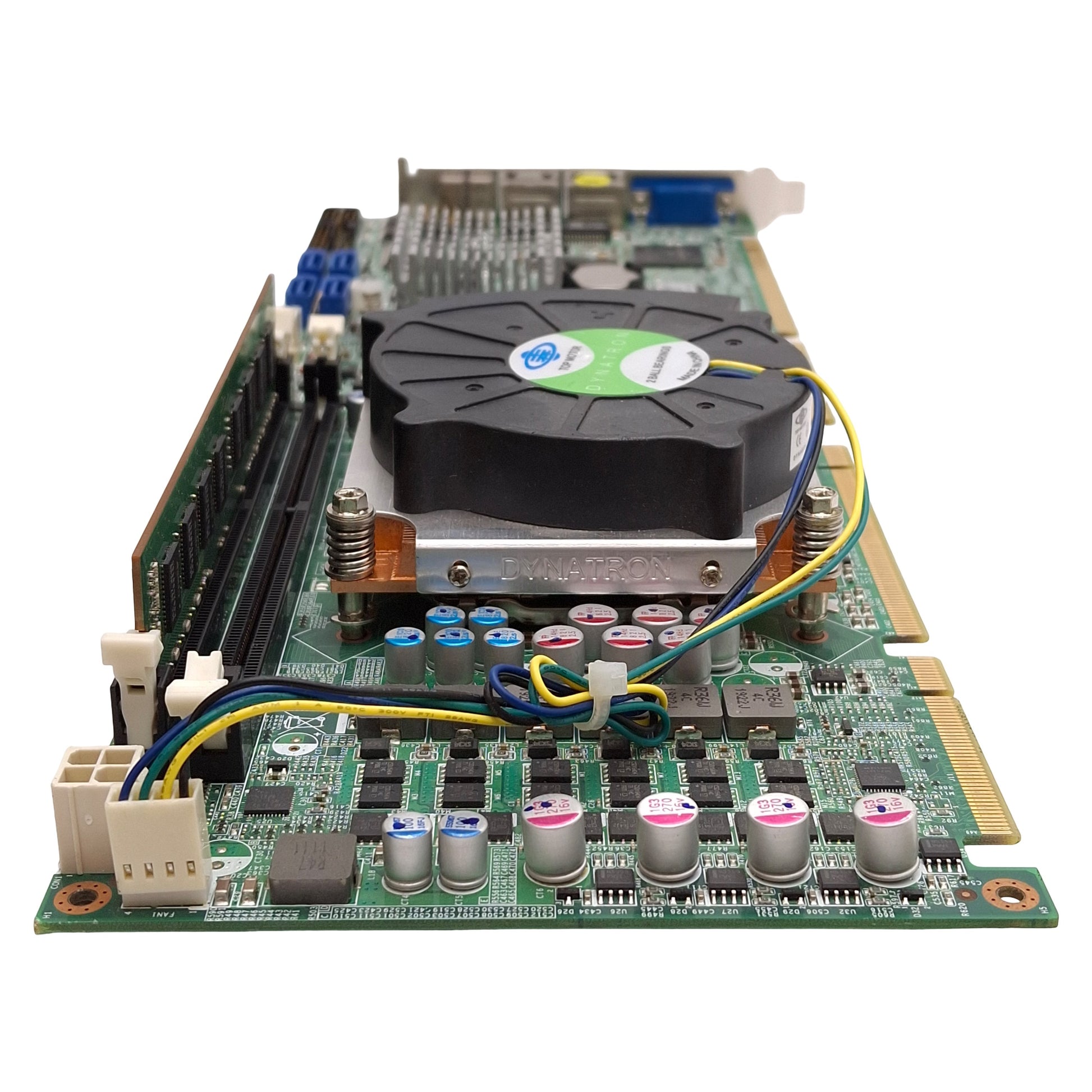

  • Industrial Motherboard & CPU
  • Socket: LGA1156

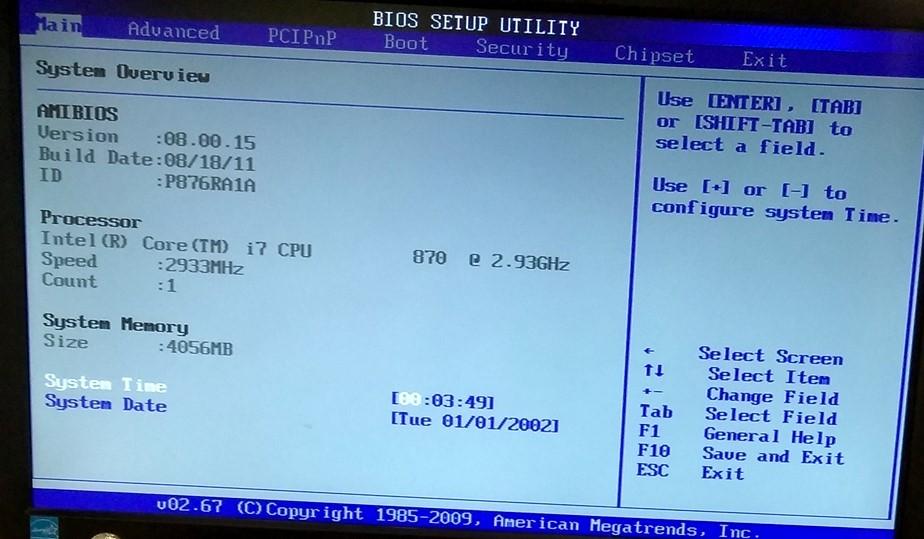

  • Processor: Intel i7-870
    • Cores: 4
    • Threads: 8
    • Processor Base Frequency: 2.93 GHz
    • Max Turbo Frequency: 3.60 GHz
    • Cache: 8 MB SmartCache
    • Bus Speed: 2.5 GT/s DMI
    • TDP: 95 W
    • VID Voltage Range: 0.6500V-1.4000V
    • Chipset: Intel? Q57 Express Chipset PCH

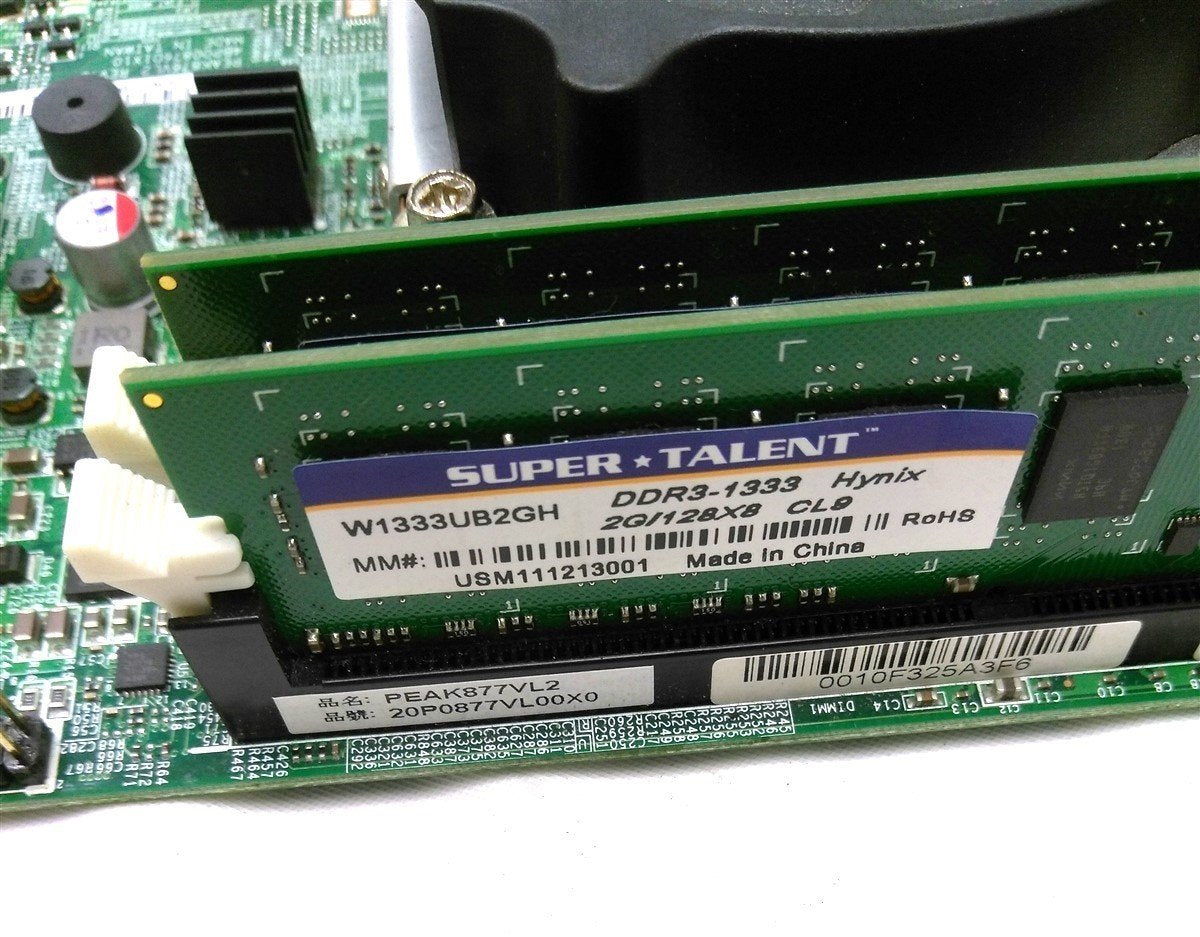

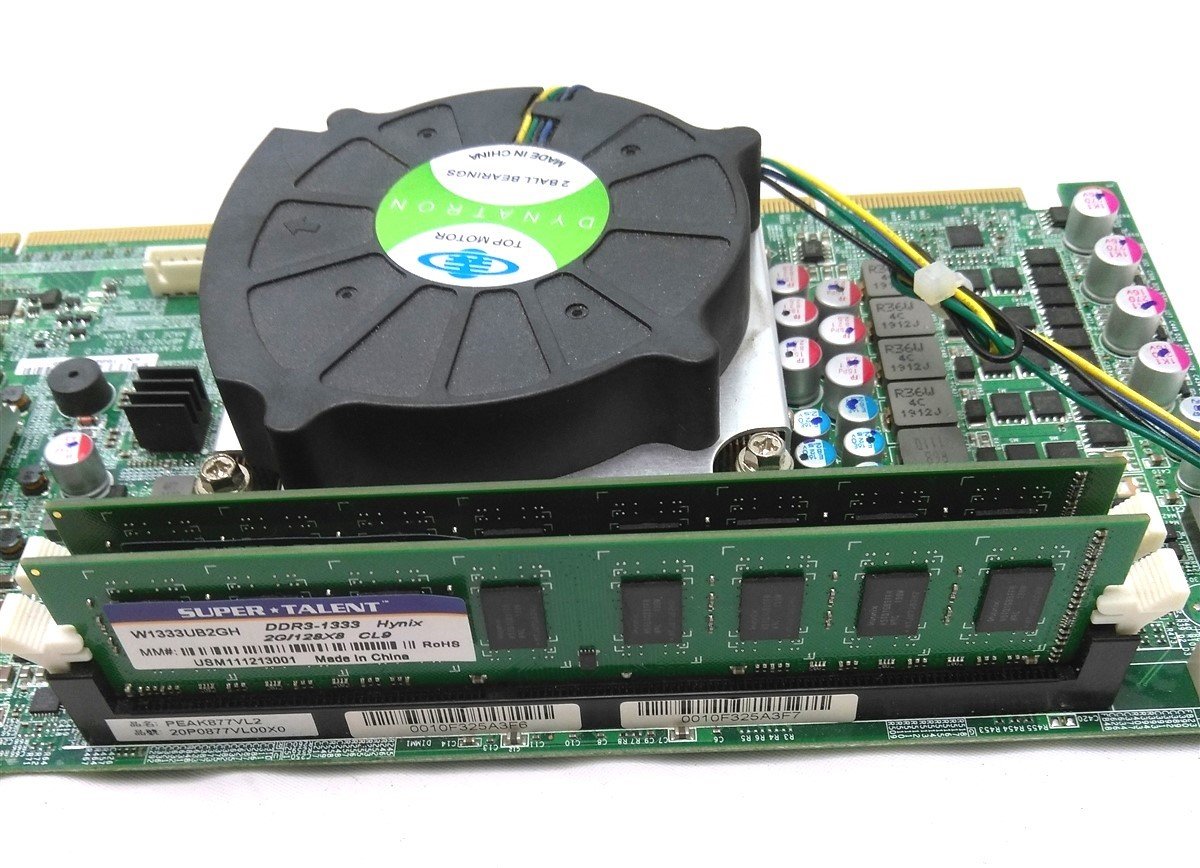

  • Memory (RAM): Super Talent 2x 2GB DDR3-1333
  • LAN:
    • 1 x Intel? 82578DM PHY for AMT 6.0
    • 1 x Intel? 82574L PCI Express Gigabit Ethernet
  • I/O Interface:
    • USB 2.0: 8 ports (2 on board, 4 to backplane), 2 ports through I/O Bracket
    • Serial port: 2 port, with 2x5pin headers (COM 1 and COM 2)
    • SATA HDD: 6 ports, Support RAID 0/1/5/10 and Intel? Matrix Storage
    • Parallel port: 1 x 26-pin connector
    • IrDA: 1 x 5-pin header
    • GPIO: Supports 4 sets general purpose I/O each with TTL level (5V) interface
    • On-board buzzer x 1
    • Power LED/Power On/Reset/SMBUS: 2 x 8 pin header
    • 1 x 4-pin fan connector (for CPU); 1 x 3-pin fan connectors (for System)
    • IPMB interface through PICMG 1.3 Golden-finger

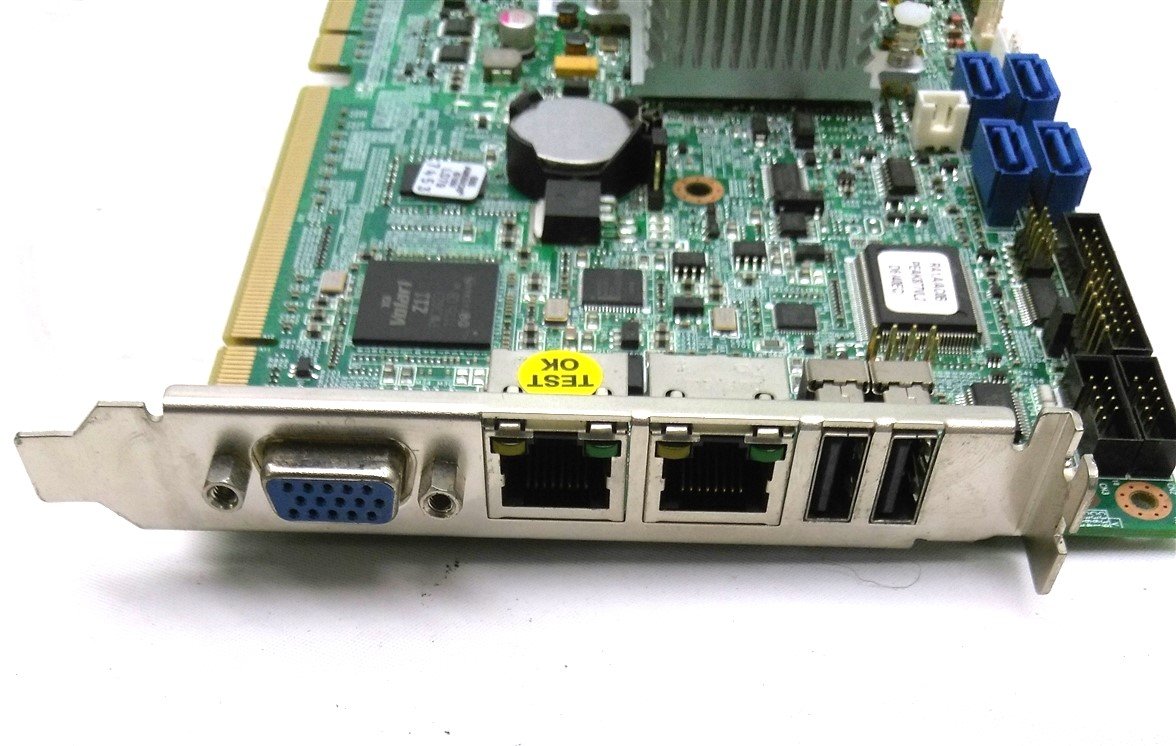

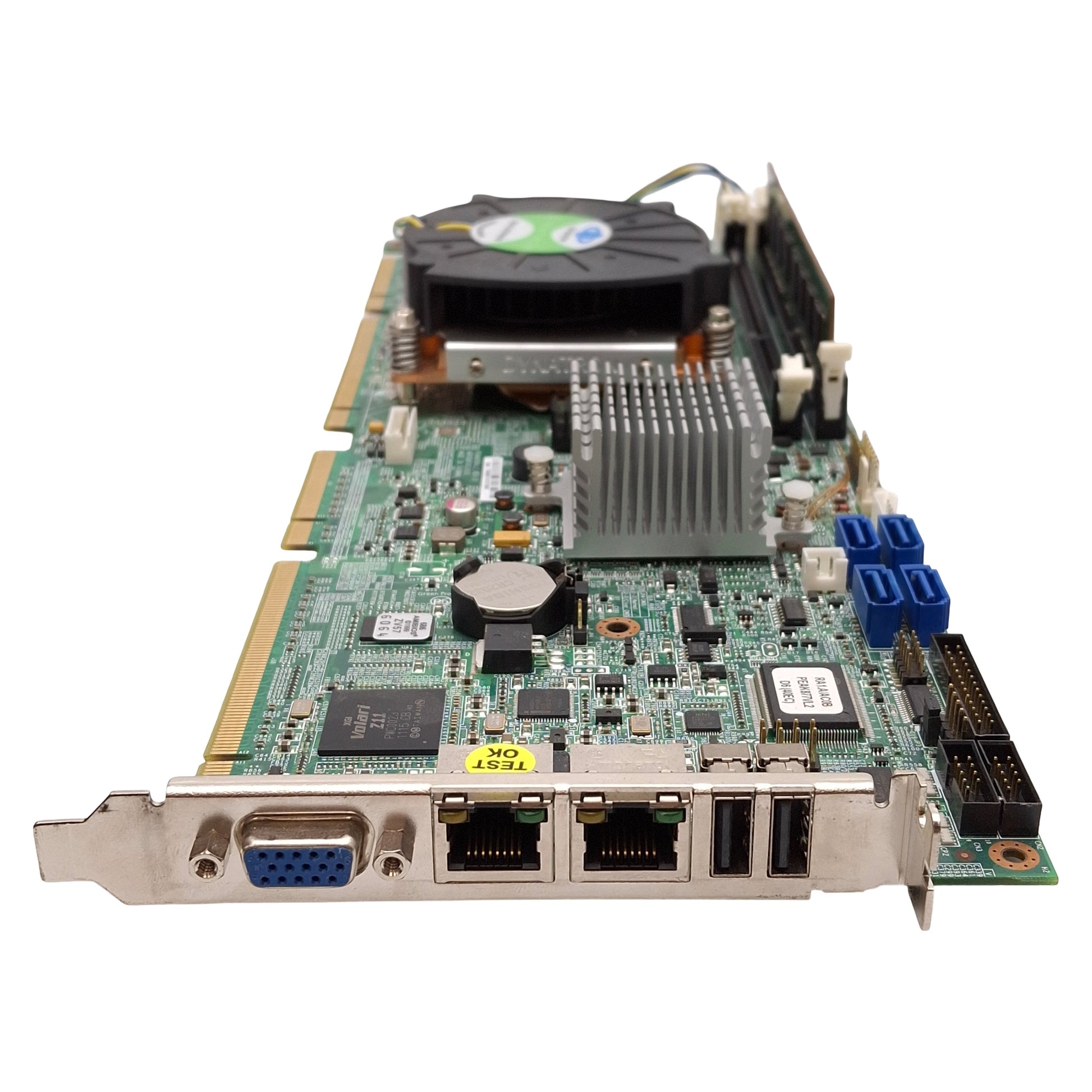

    • I/O On SBC Bracket; 1 x VGA DB-15 connector; 2 x RJ45 Gigabit Ethernet LAN port; 2 x USB 2.0 Ports
  • Dimension: 338.58mm (L) x 126.39mm (W) (13.3?? x 4.9??)
