From our inventory, we are selling a Polytec OFV-3000 Laser Vibrometer Controller, OVD-01, RS232, GPIB, *Bad Fan*.

Specifications:

• Model #: OFV-3000
• More Information:
  • Laser Vibrometer Controller
  • # of Supported Units: 1
  • Included Modules:
    • OVD-01 Velocity Decoder

    • Measurement Range mm / V     S	Full Scale Output mm S	Resolution æm   S	Max Frequency kHz	Max Acceleration g
      1	20	0.3	20	150
      5	100	0.6	50	1600
      25	500	0.8	50	8000
      125	2500	1	50	25000
      1000	20000	2	50	200000

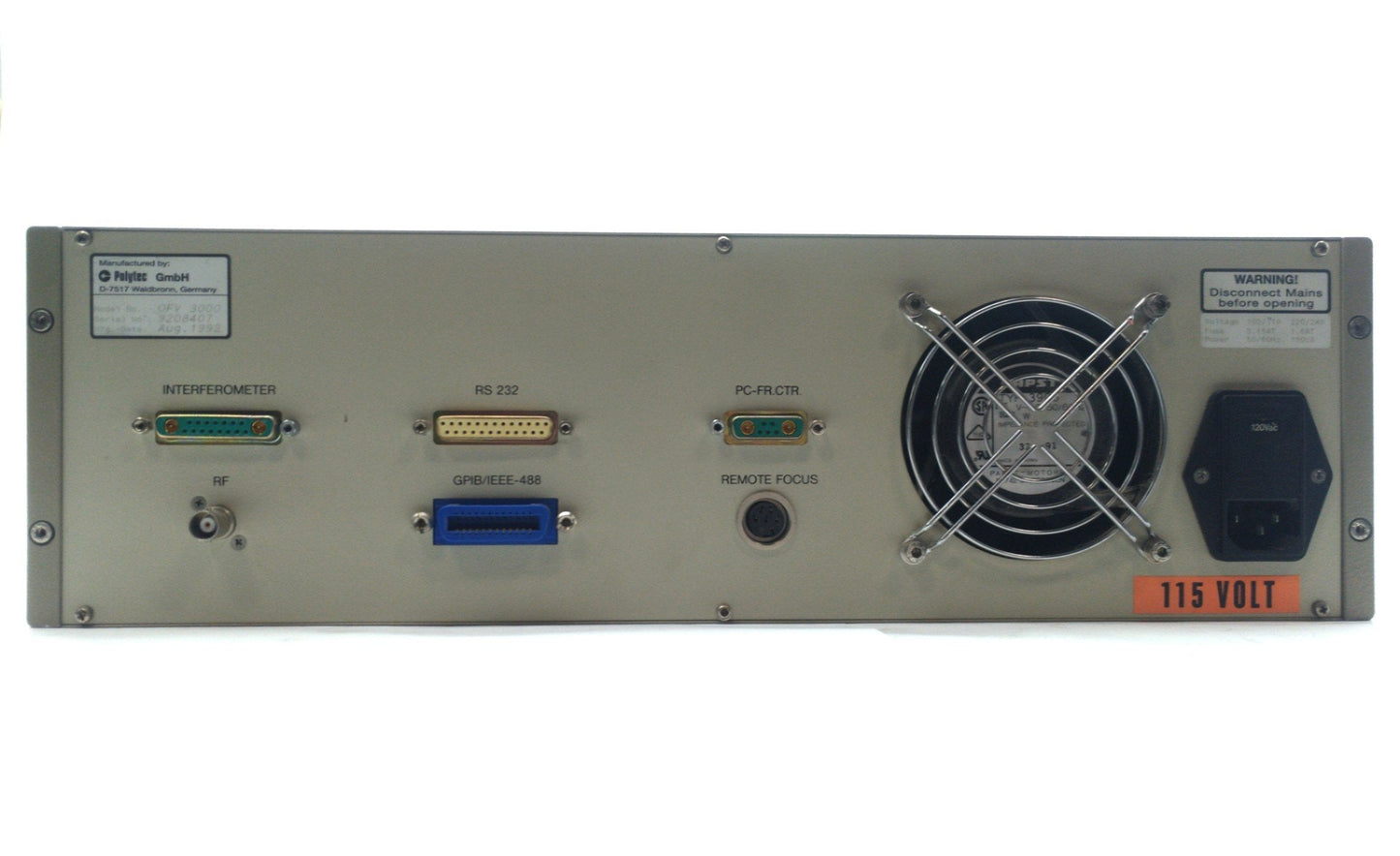

  • Connectors:
    • D-Sub Power: 14-Pin A1/2, 5-Pin A1/2
    • D-Sub: 9-Pin RS232
    • DIN: 7-Pin
    • GPIB: 1x
    • BNC:
      • Front 3x
      • Back: 1x
  • Compatible Sensor Heads: OFV-302, OFV-501, OFV-502
  • Power Requirements: 100/115/230VAC 50/60Hz
  • Dimensions: 17 11/16 x 14 1/4 x 5 3/4"

Item Specifics & Seller Notes:
Rear cooling fan does not function. Unit functions as intended otherwise. This unit does not have a Displacement Decoder.
