Specifications:

• Model #: OEMKH000
• More Information:

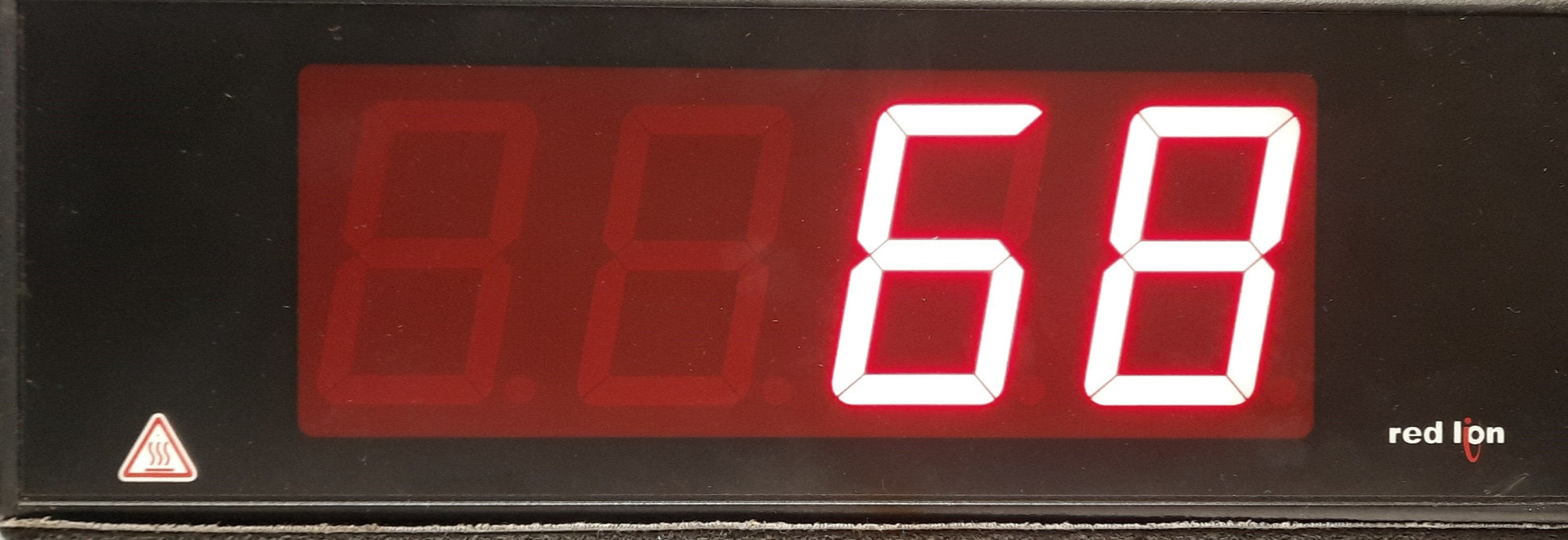

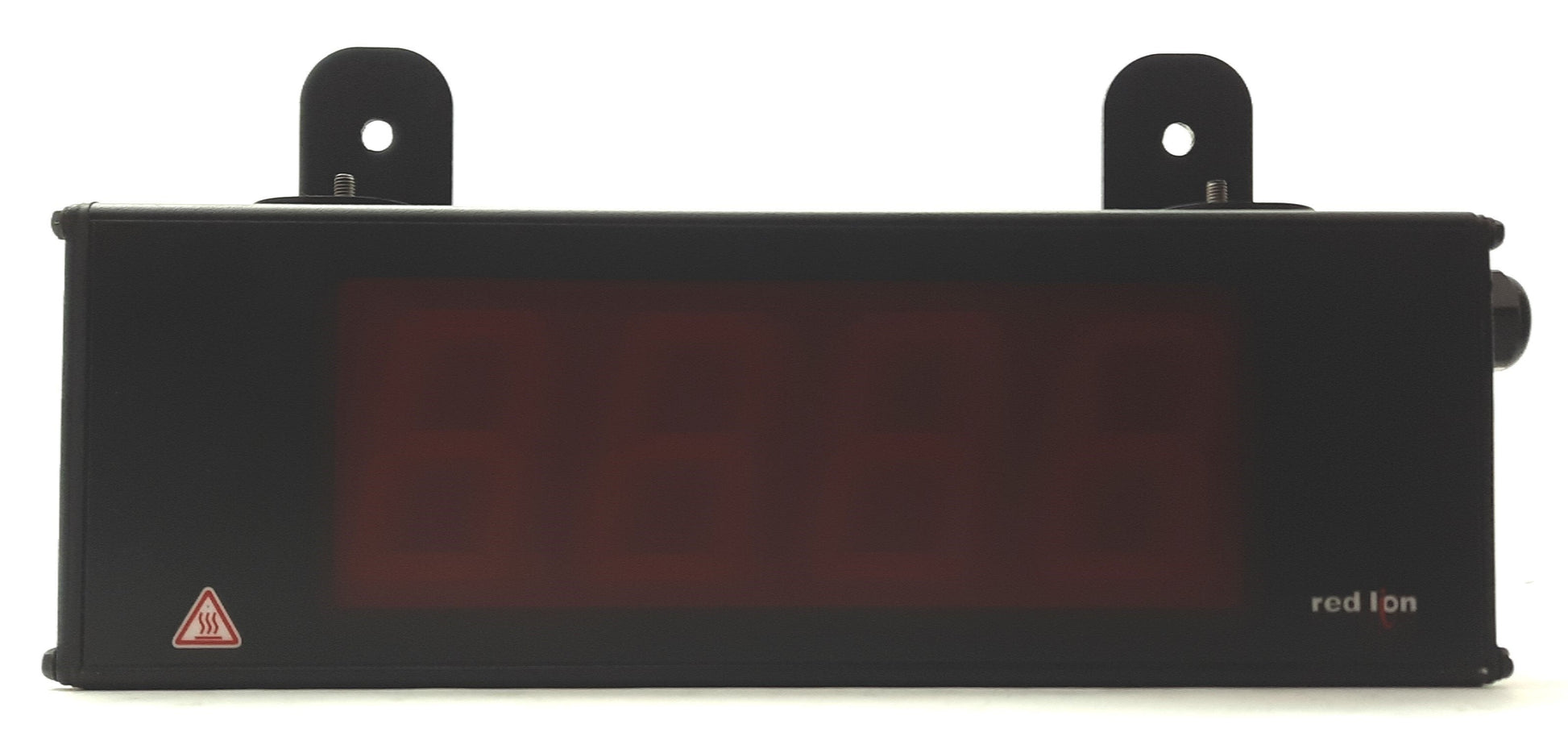

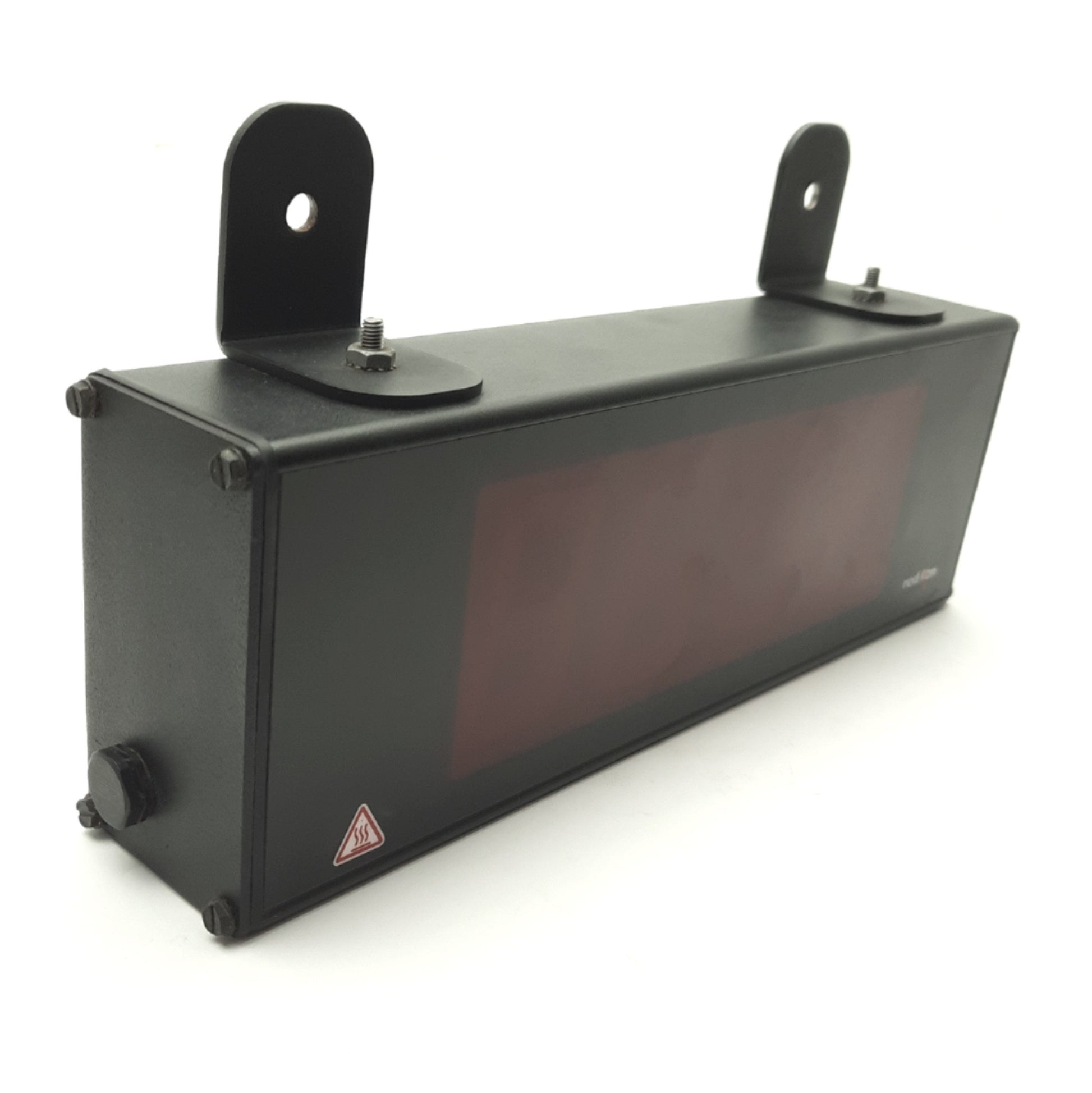

  • Large Red LED Display Counter
  • Digits: 4x 2.25"
  • # of Count Inputs: 2x
  • Count Rate: 25KHz max.
  • Count Input Types:
    • Counter(s) have DIP switch selectable pull-up (7.8 K?) or pull-down resistors (3.9 K?) that determine active high or active low input logic.
    • Counters are DIP switch selectable for high or low frequency (Damping capacitor provided for switch contact bounce. Limits input frequency to 50 Hz and input pulse widths to 10 msec min.)
    • Input A Trigger levels: VIL = 1.25 V max; VIH = 2.75 V min; VMAX = 28 VDC
    • Input B Trigger levels: VIL = 1.0 V max; VIH = 2.4 V min; VMAX = 28 VDC

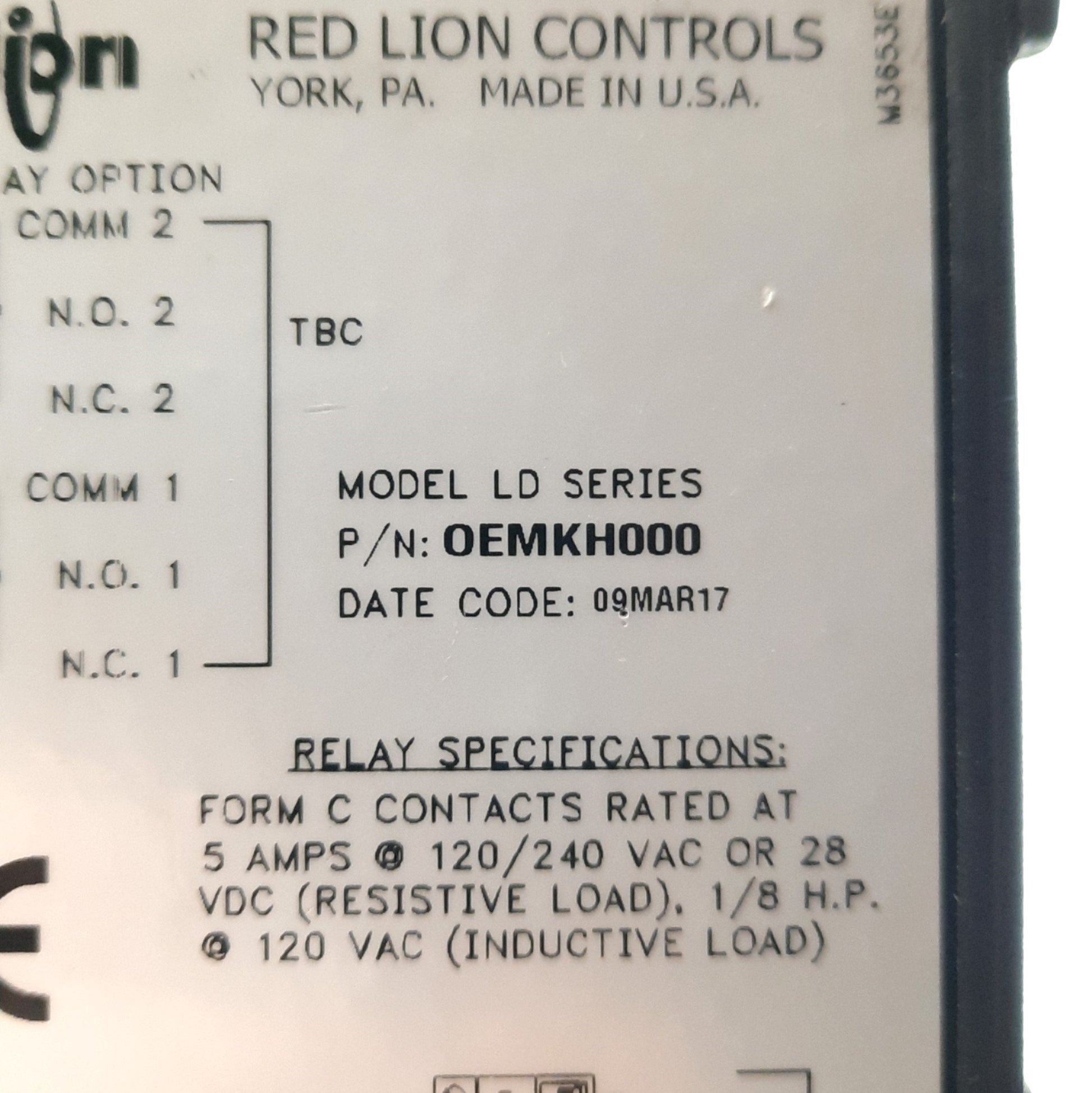

  • Outputs: 2x SPDT Relays 5A 120/240VAC or 28VDC
  • Cummunication: RS232/485
  • Power Requirements: 50-250VAC50/60Hz 26VA or 21.6-250VDC 11W
  • Dimensions: 13 1/8 x 4 x 2 1/4"

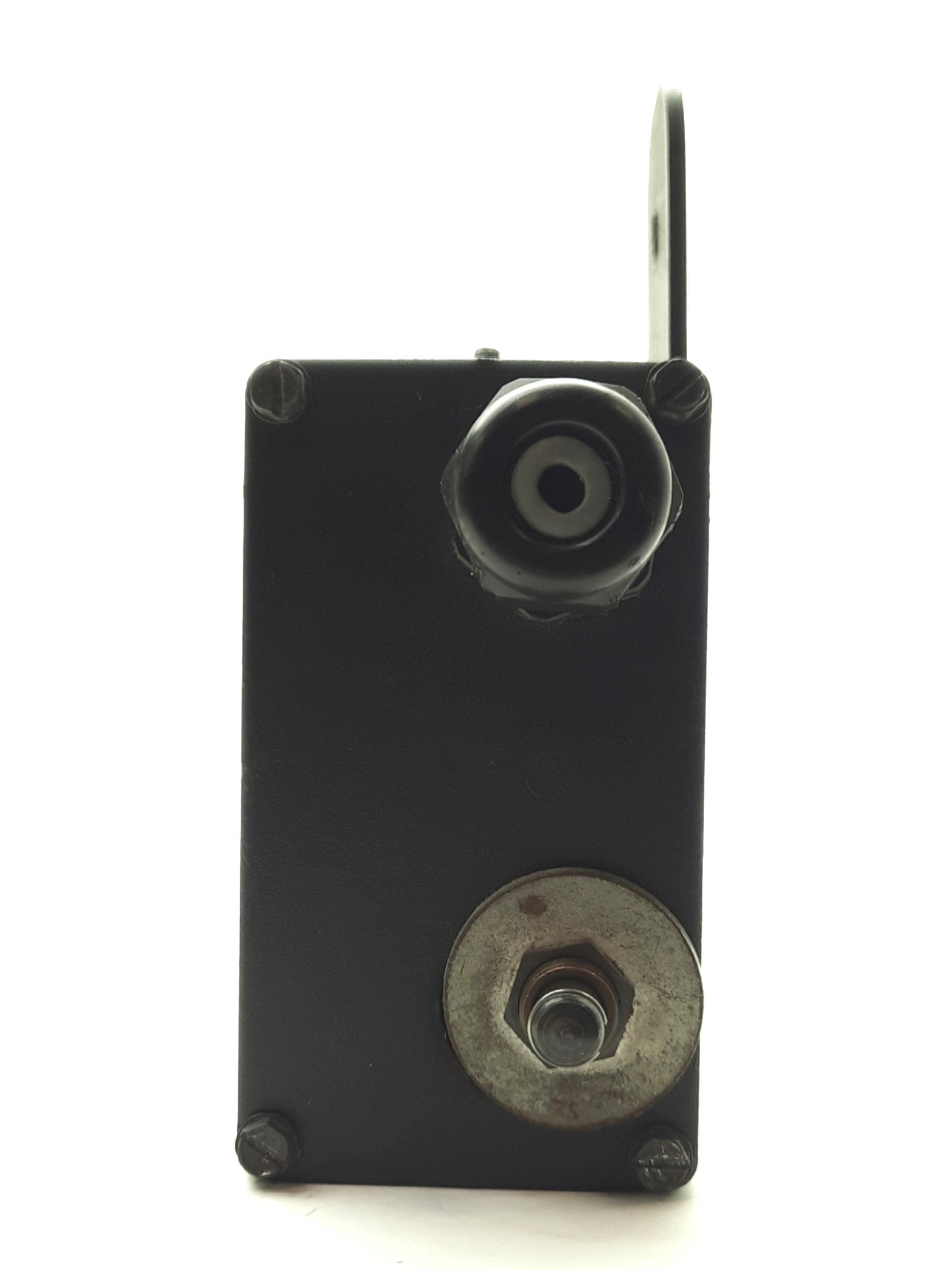

Item Specifics & Seller Notes: Includes pre-wired reset switch.
