Specifications:

• Model #: HAWK
• More Information:

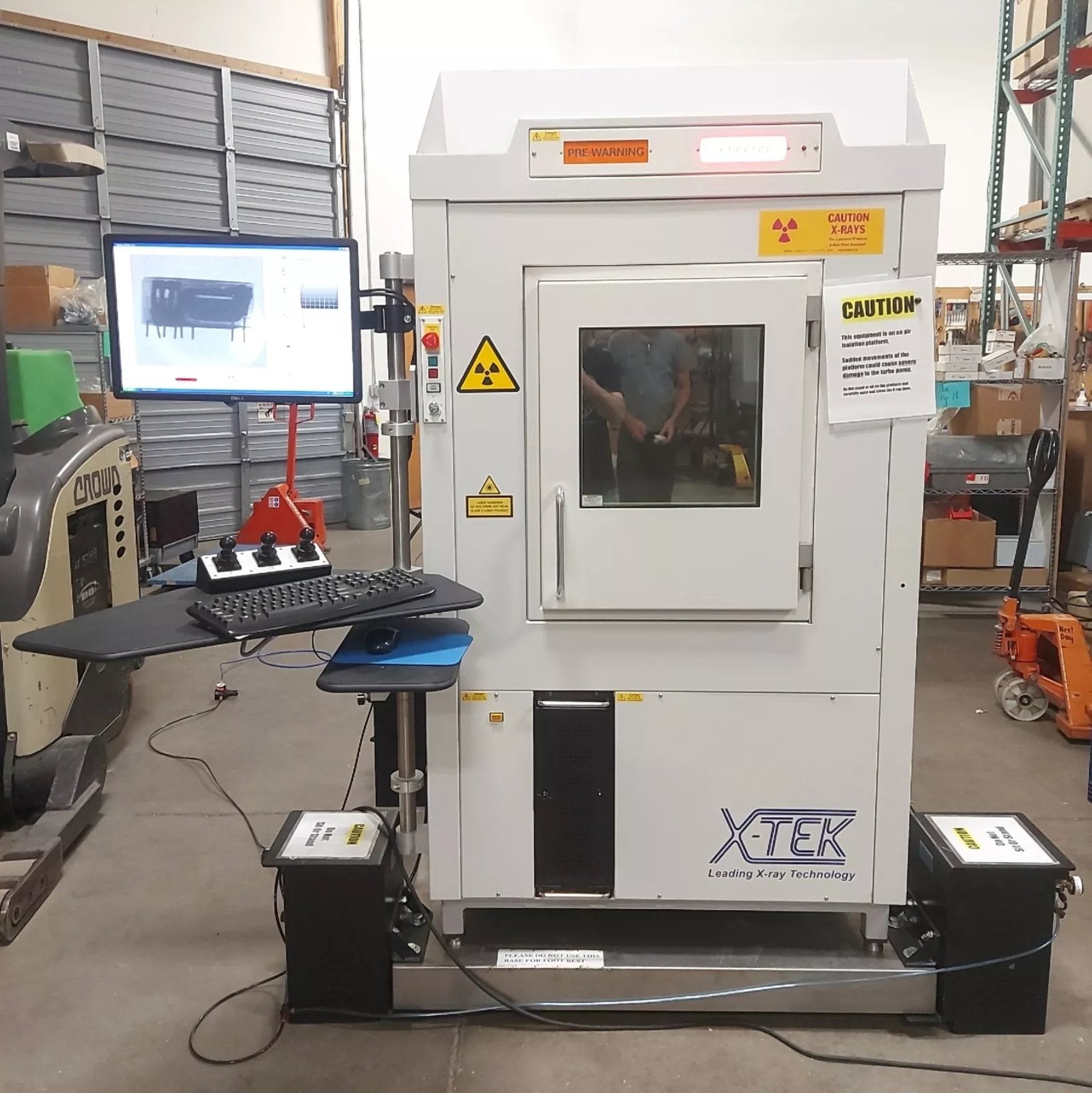

  • X-Ray Inspection Machine

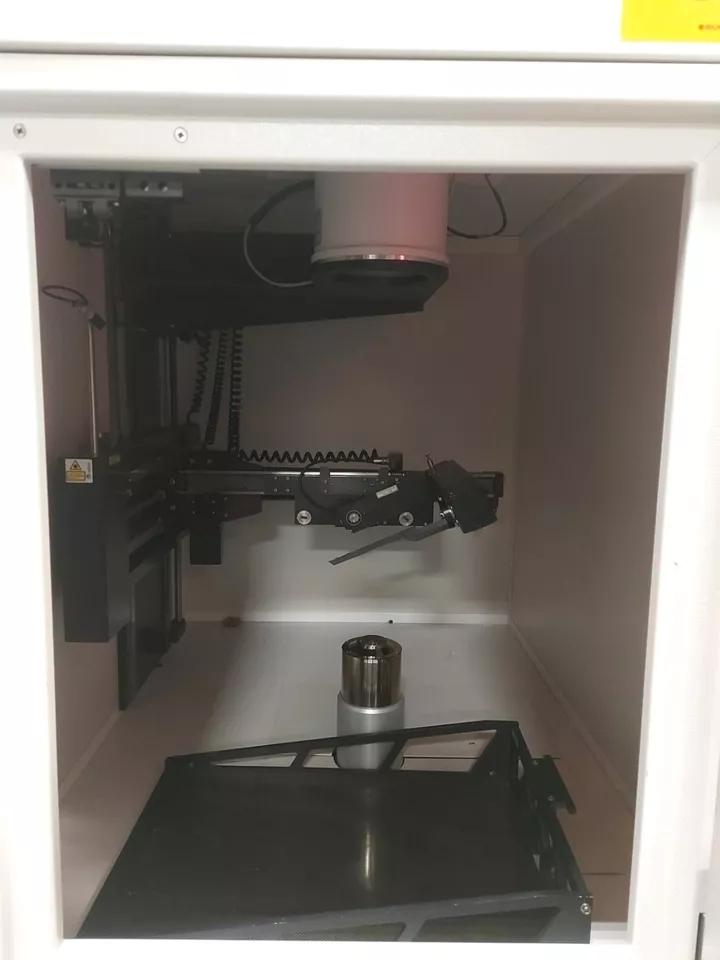

  • Includes: Anti-Vibration Base, Rotary Manipulator, 3-Axis Tray, 7x Tungsten Filaments, Keyboard/Mouse

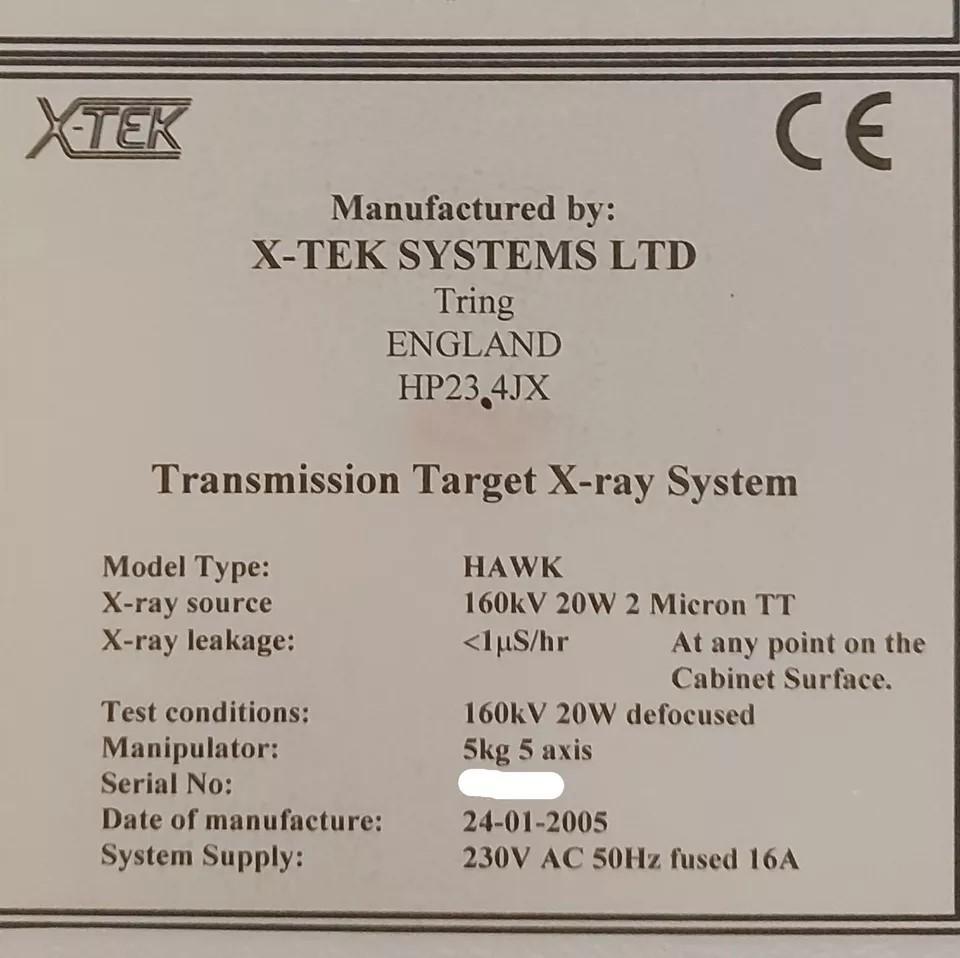

  • X-Ray Power: 160kV 20W (2um)
  • X-Ray Leakage: <1uS/hr
  • Magnification:
    • Geometric: 2400X
    • System: 6000x
  • Feature Recognition: Less Than 1 micron
  • Image Resolutions: 900 x 900px
  • Scan Area: 14 x 21"
  • Max Load: 6.5lbs (5kg)
  • # of Axis: 5 or 3 (Tray Dependent)
  • Travel:
    • X: 288mm
    • Y: 510mm
    • Z: 330mm
    • A: +-45ø
    • B: +-160ø
  • Computer:
    • Operating System: XP

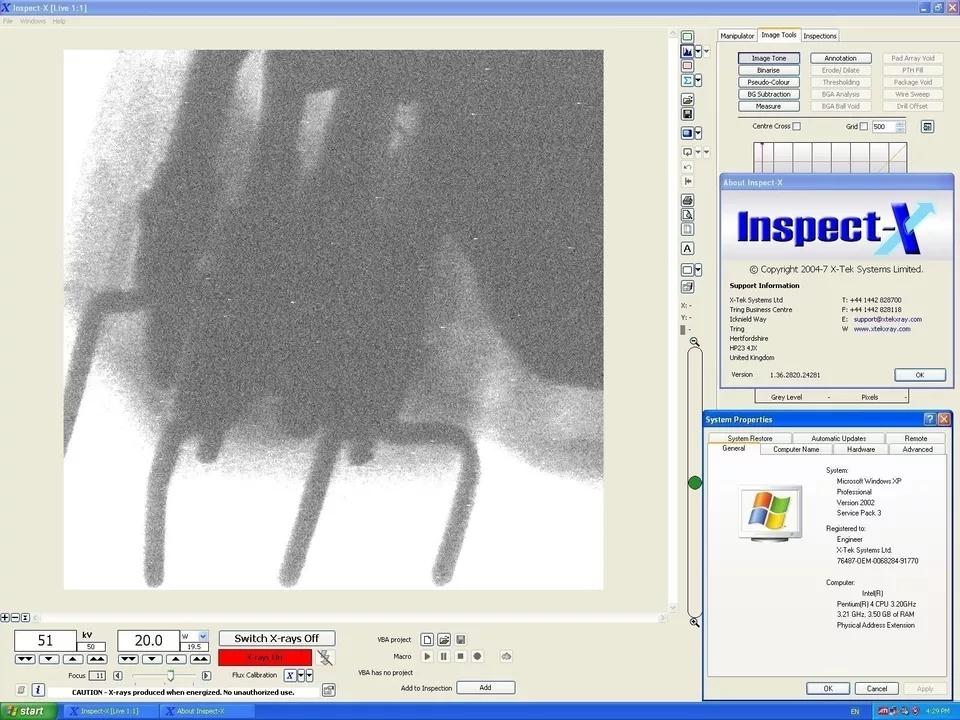

    • X-Inspect Versions: 1.36
    • Processor: Intel Pentium 4 3.2GHz
    • Memory: 3.5GB DDR
    • HDD Capacity: 260GB

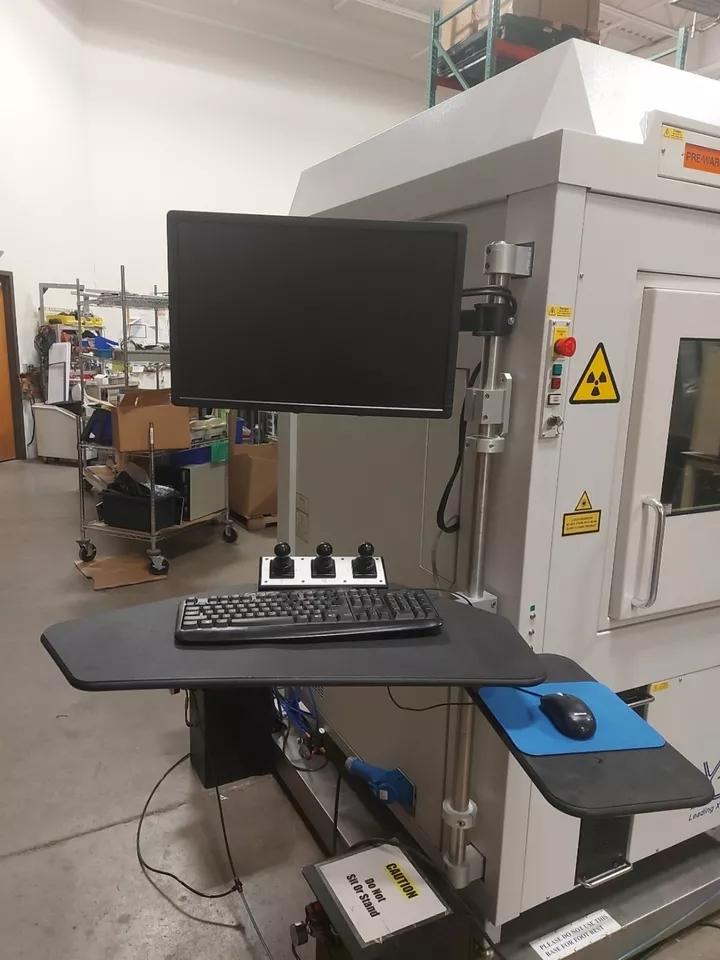

    • Screen Size: 22"
    • Screen Resolution: 1680 x 1050
  • Anti-Vibration Air Requirements: 60PSI
  • Power Requirements: 120VAC
  • Dimensions: 82 x 75 x 55.5

Item Specifics & Seller Notes: Product demonstration available upon request.

This item will be shipped freight. Freight shipping cost is included to a location with a truck height loading dock and full size semi truck and trailer access. Full size truck access and forklift is acceptable. Deliveries to limited access/residential and/or requiring a liftgate will be subject to additional fees. Please contact us for additional information and quotes.
